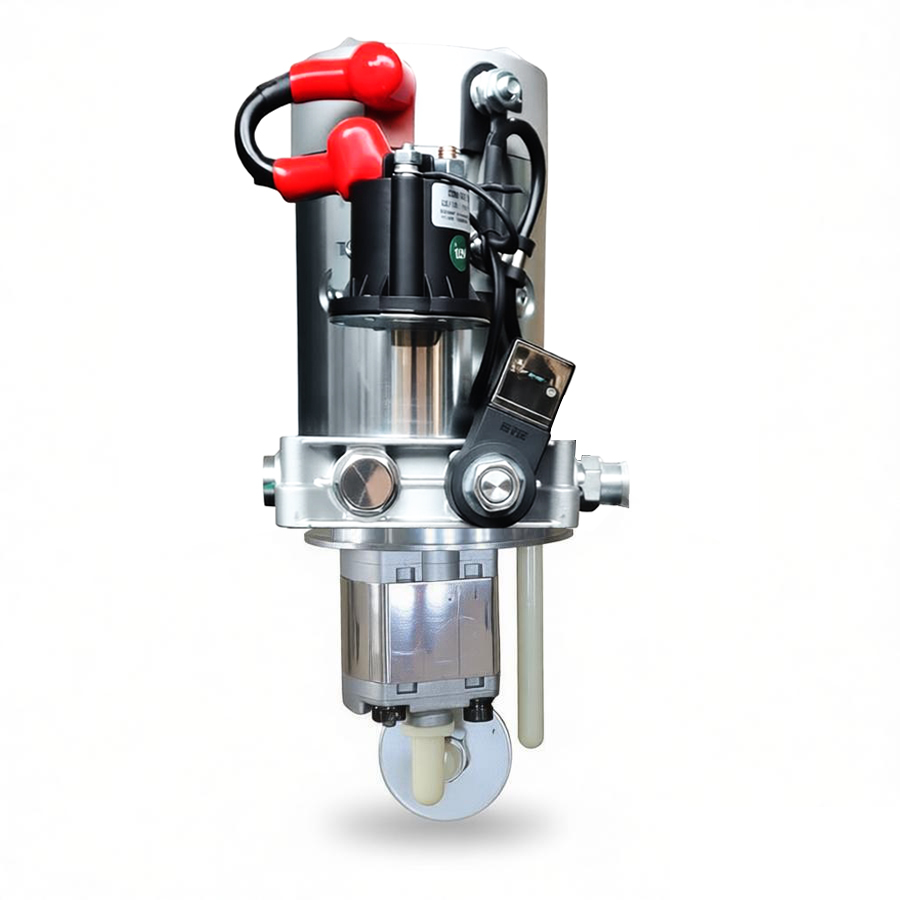

Forestoad 10 Quart Hydraulic Power Unit Single Acting 12V/DC Hydraulic Pump for Dump Trailer Car Lifting, SAE#6 Connector,2 GPM Flow Rate, 3200 PSI Max Relief Pressure, Metal Reservoir 2.5 Gal

Basic Information

Place of Origin:	Ningbo China
Brand Name:	Forestoad
Certification:	CE,ISO
Model Number:	TD-DL Forestoad

Minimum Order Quantity:	20PCS
Price:	259
Packaging Details:	Packed in carton boxes ,and then wooden pallets
Delivery Time:	15 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	2000pcs per month

Get Best Price Contact Now

Plastic Cover For Motor:	YES. MC-02	Tank:	4L To 18L, Steel Or Plastic, Horizontal Or Vertical
Ports:	SAE6#	Motor:	12V, 1600W, 2800 RPM, S3 Duty.
Gear Pump:	1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r	Relief Valve Pressure:	180Bar
Remote And Cable:	2 Buttons, 3 Wires, 4meters With Quick Connector	Solenoid Valve:	12VDC 18W Coil
Packing:	One Power Pack In A Boxes And Then Pallets	Weight:	About 15-18kgs/pc With Each Power Pack
Highlight:	10 quart hydraulic power unit , 12V DC hydraulic pump for dump trailer , single acting hydraulic pump 3200 PSI

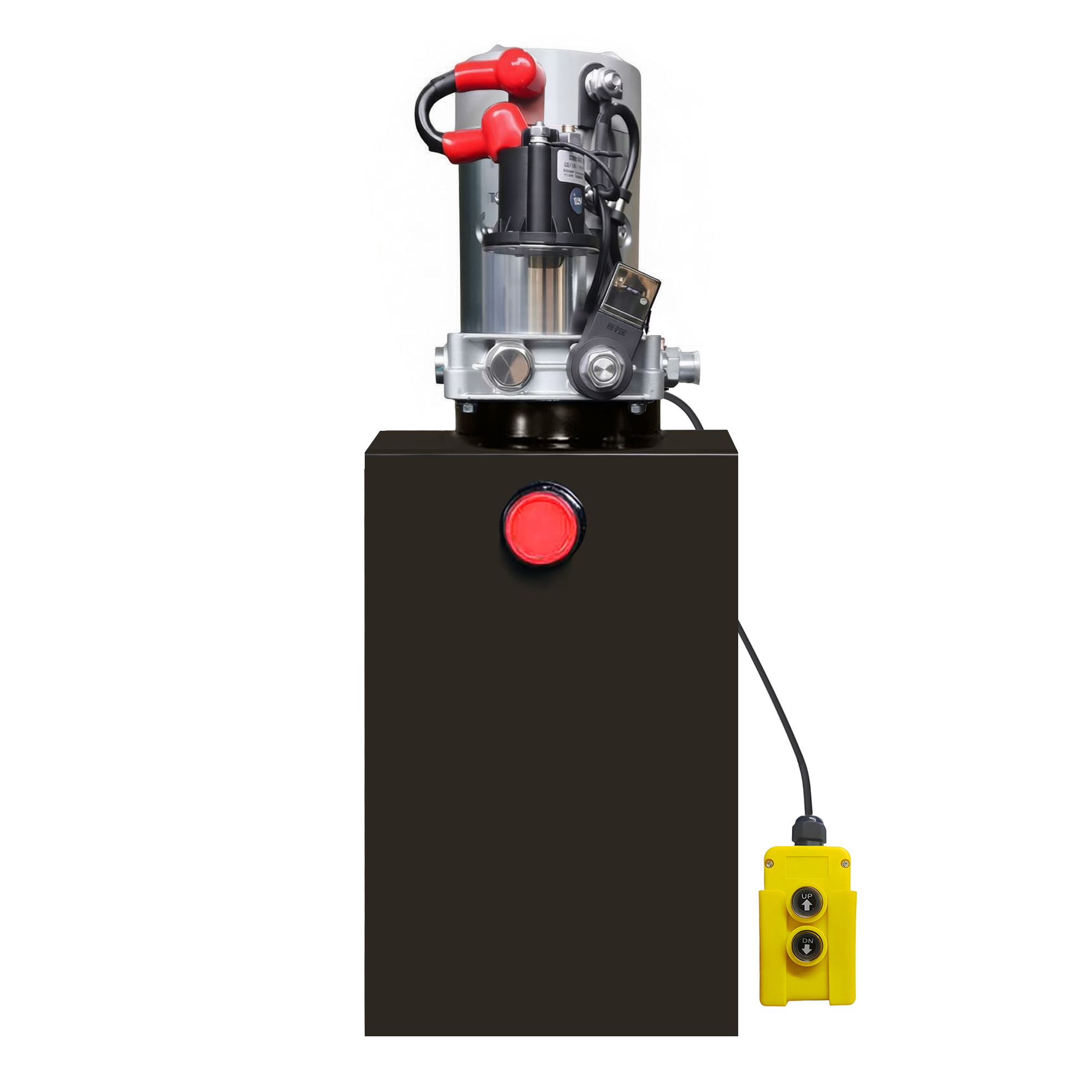

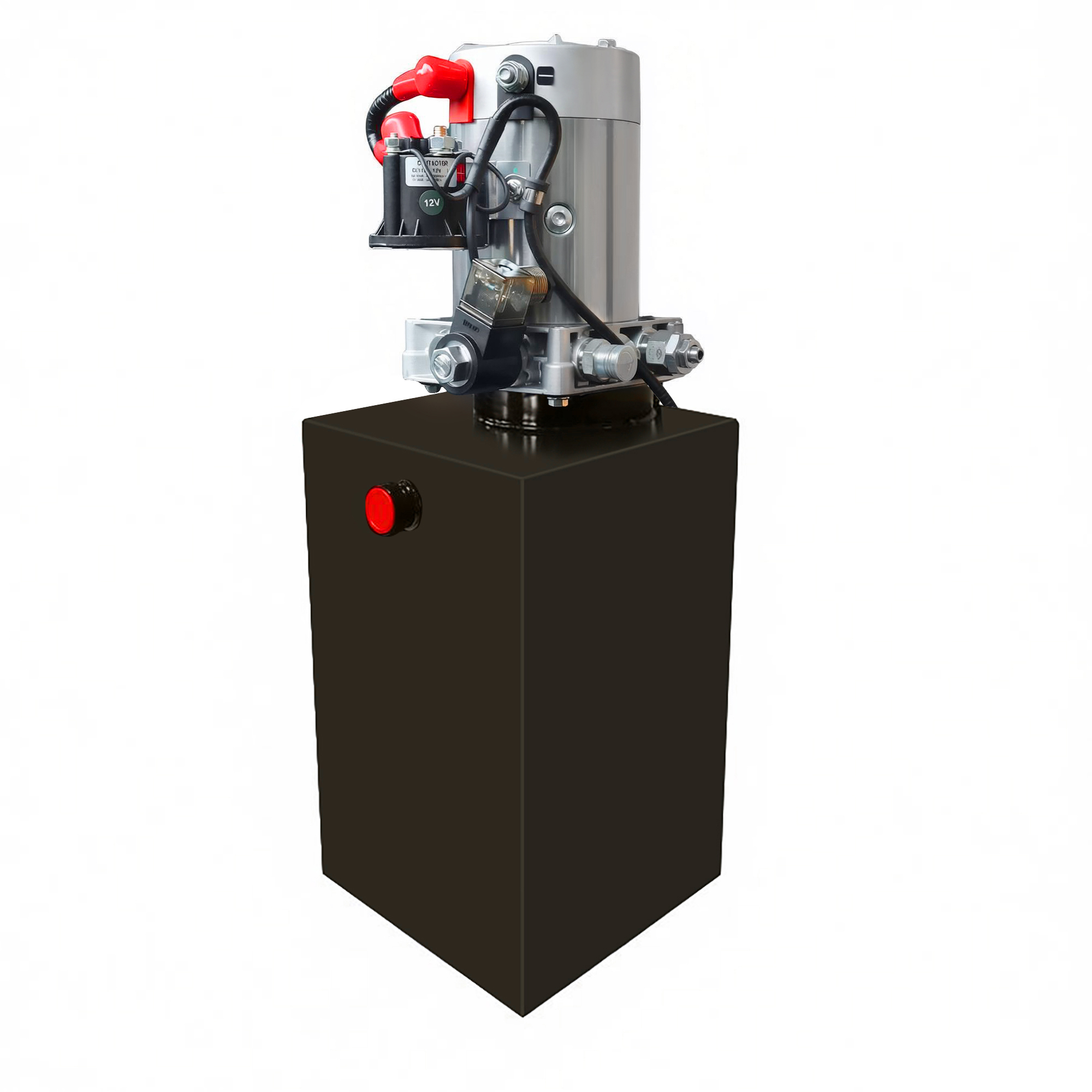

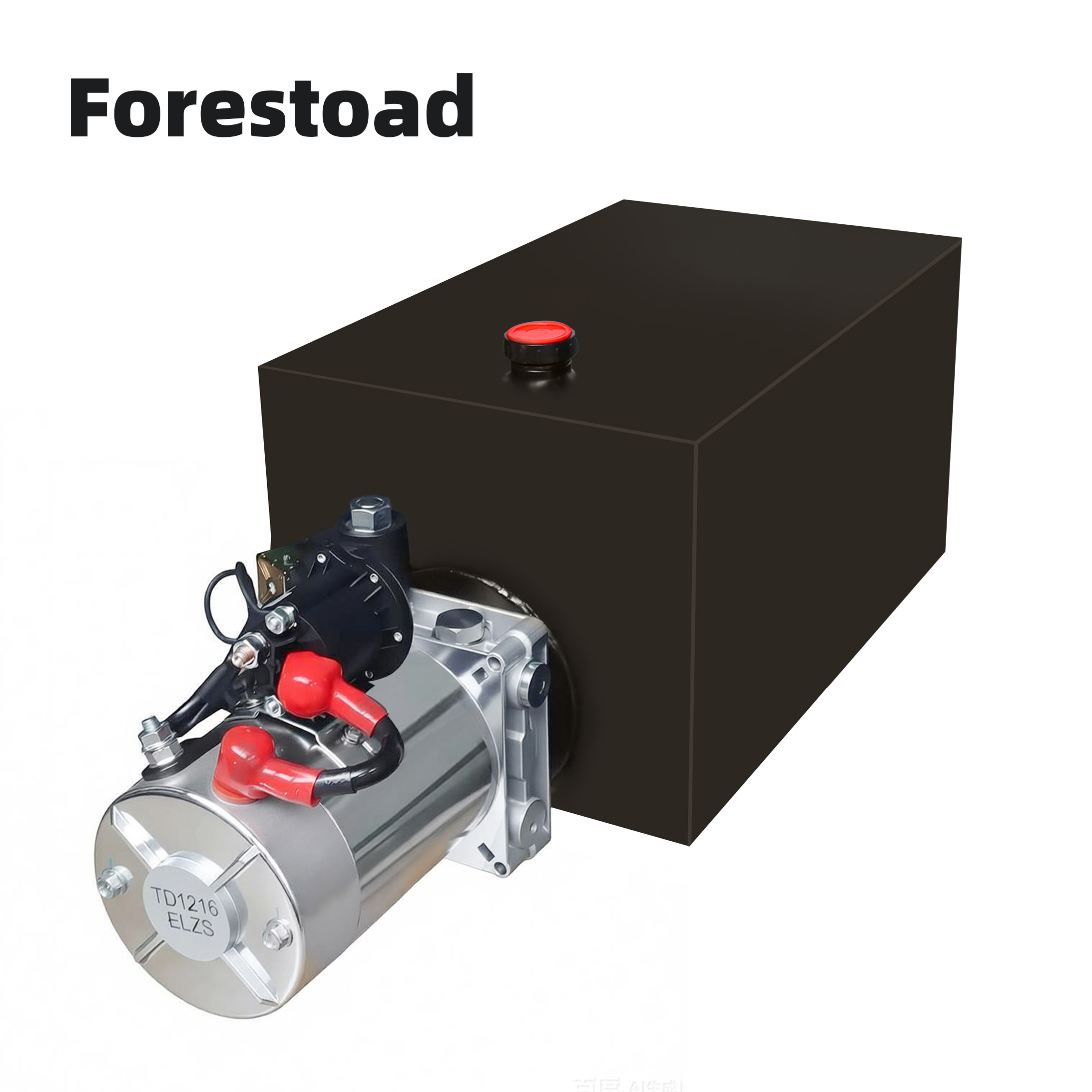

Forestoad 10 Quart Hydraulic Power Unit

This single acting 12V/DC hydraulic pump is engineered for dump trailers, car lifting systems, and various industrial lifting applications. Featuring SAE#6 connectors, 2 GPM flow rate, and 3200 PSI maximum relief pressure with a durable 2.5-gallon metal reservoir.

Product Overview

High-pressure double acting hydraulic power pack specifically designed for tipper trailers and demanding lifting applications requiring reliable performance and durability.

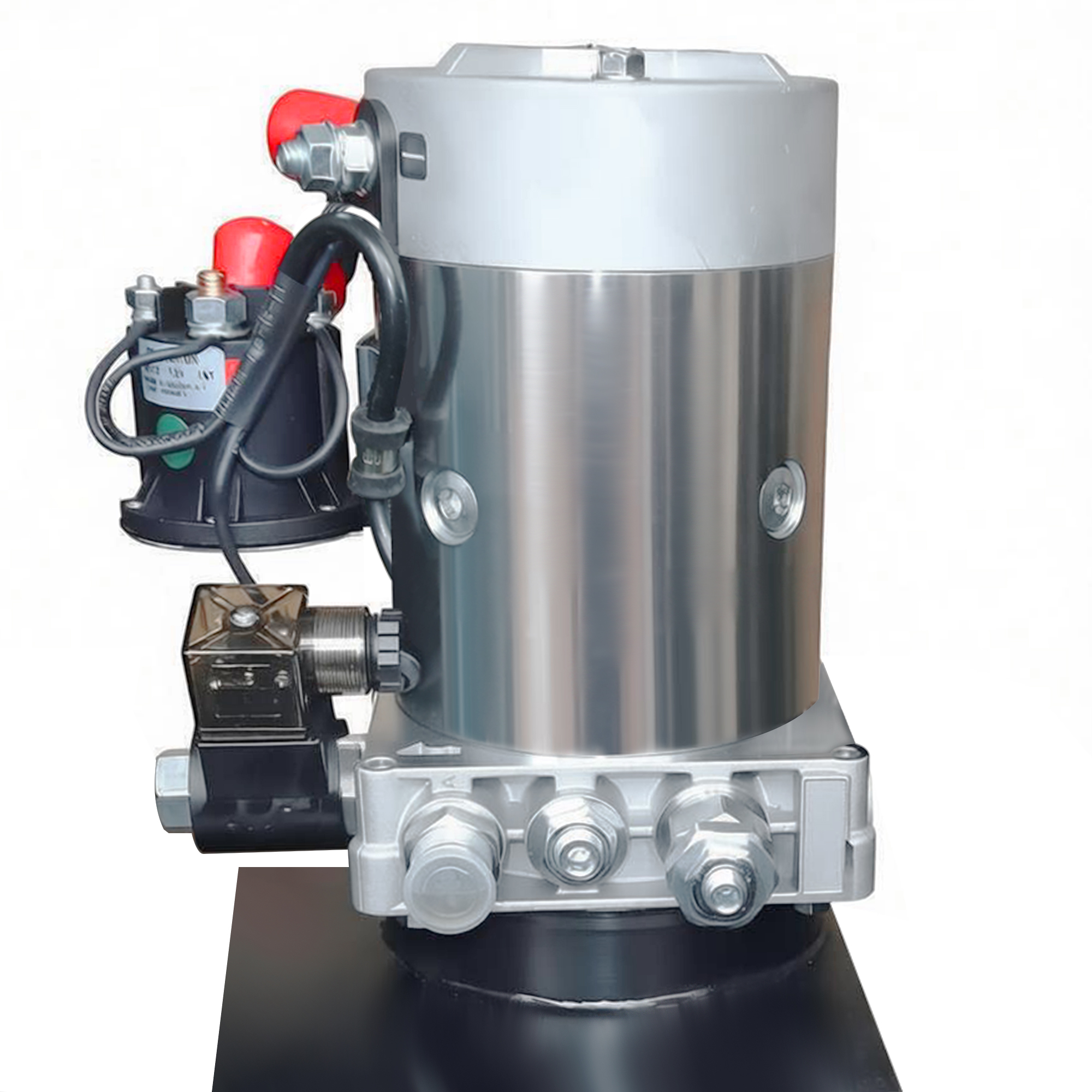

Key Components

High pressure gear pump
DC motor for consistent power delivery
Aluminum center manifold
Check valve for system safety
Relief valve for pressure control
Solenoid release valve
Hydraulic oil tank

Operation

Simple two-button control: Push "UP" button to activate DC motor and lift the trailer. Push "DN" button to engage solenoid valve and DC motor for controlled lowering.

Applications

Ideal for tipper trailers, fork lifts, scissor lifts, and other single acting lift systems requiring reliable hydraulic power.

Technical Specifications

Feature	Specification
Plastic Cover for Motor	YES (MC-02)
Tank Options	4L to 18L, Steel or Plastic, horizontal or vertical
Ports	GSAE6#
Motor	12V, 1600W, 2850 RPM, S3 Duty
Gear Pump	2.1cc/r
Relief Valve Pressure	220Bar
Remote and Cable	2 Buttons, 3 lines, 4 meters
Solenoid Valve	12VDC 18W coil
Packing	One power pack per box, palletized
Weight	Approximately 15-18kg per unit

Pricing: From USD $125.00 to $185.00 per unit (includes motor, pump, tank, manifold, valves, remote and cable, plastic cover)

Product Drawings

180 Bar High Pressure Hydraulic Power Pack Diagram

Hydraulic Power Pack Schematics

Hydraulic Power Pack Technical Schematics

Packing Information

Unit weight approximately 15-18kg (varies based on specifications, tank type, and component selection).
