Ningbo Zhenhai Tiandi Hydraulic CO.,LTD
Quality Drives Development ,Faith Explores Future
| Place of Origin: | China |
|---|---|
| Brand Name: | Tiandi |
| Certification: | CE |
| Model Number: | TDDL-20-02 |
| Minimum Order Quantity: | 50pcs |
| Price: | USD120-200/pc |
| Packaging Details: | Packed in carton boxes ,and then wooden pallets |
| Delivery Time: | 25 working days after deposit confirmed |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1,000pcs per month |
| Setting Mode: | Horizontal | Valve Voltage: | DC24V |
|---|---|---|---|
| Oil Port: | G3/8” | Oil Pump: | 0.75cc/r |
| Motor: | DC24V,800W. | Tank Size: | 1L |
| High Light: | hydraulic power pack unit,industrial hydraulic power units |
||

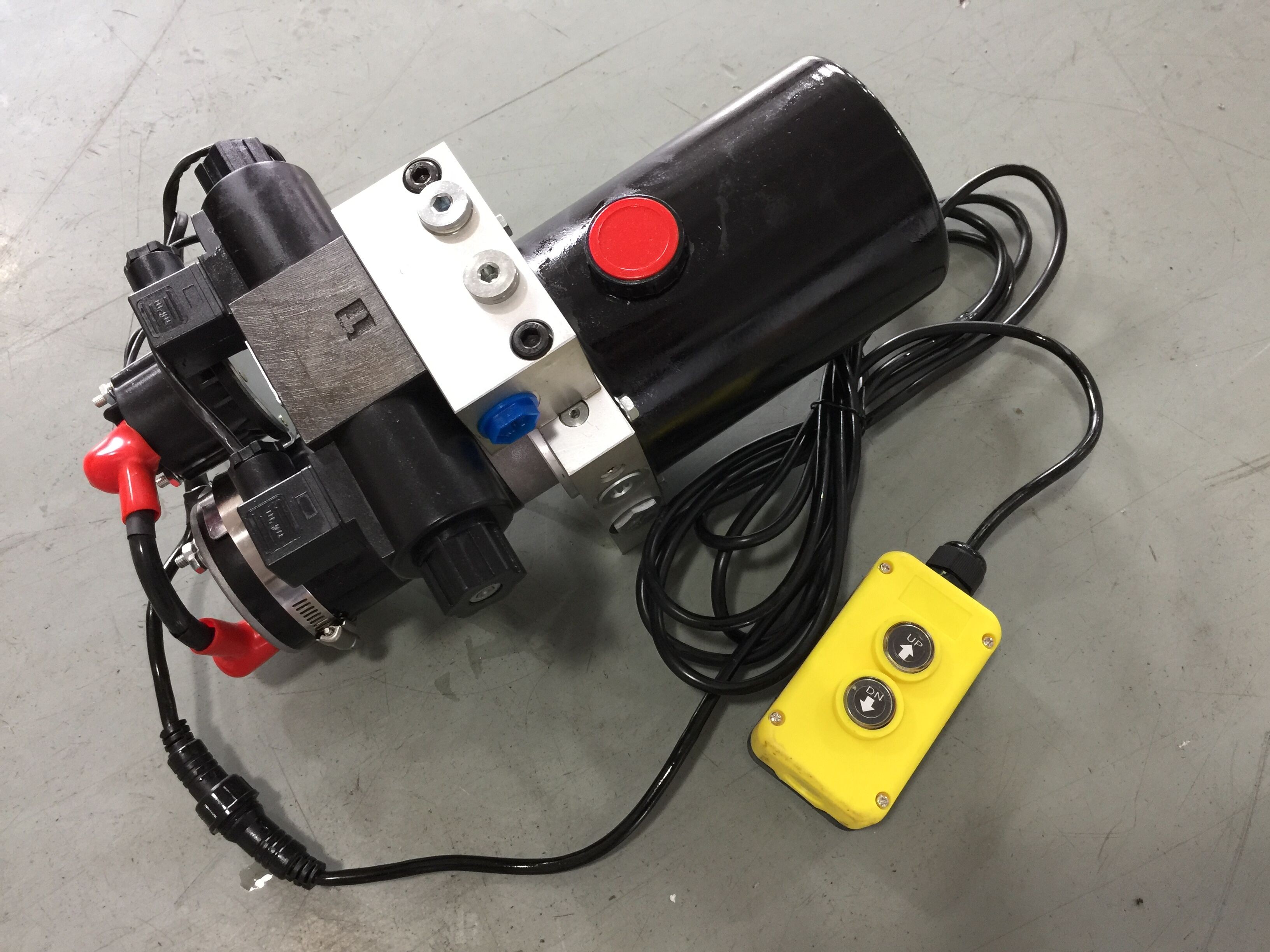

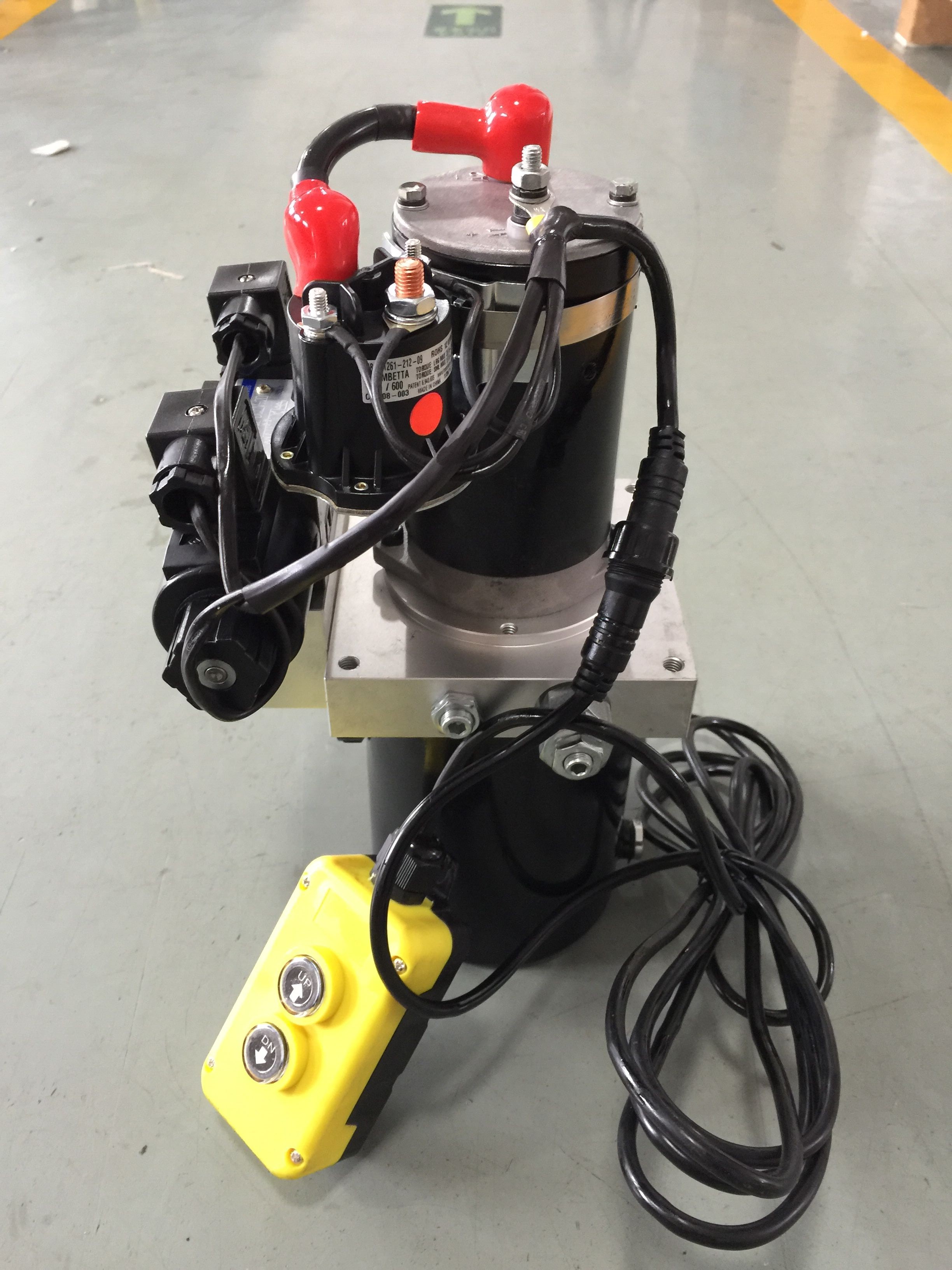

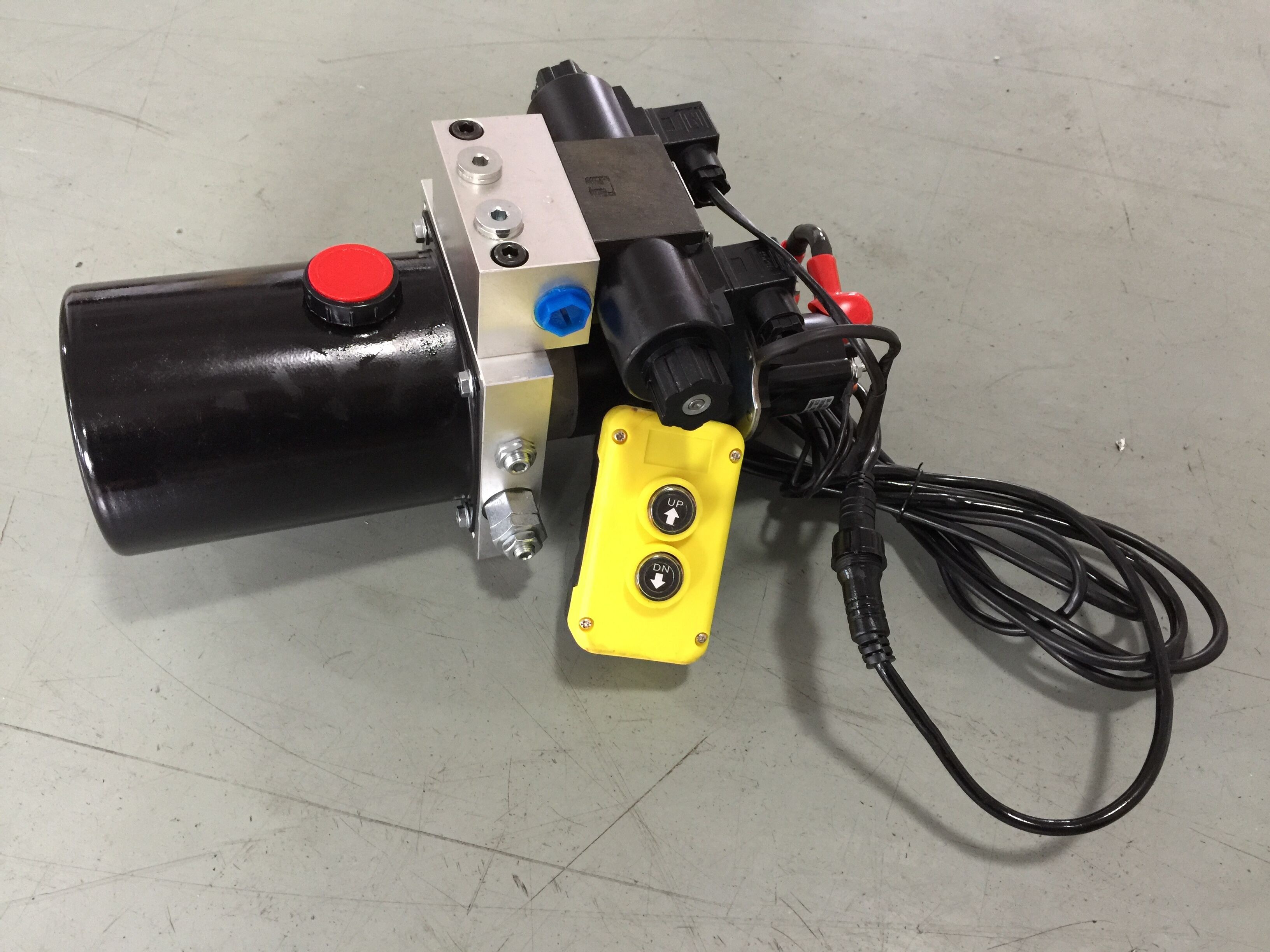

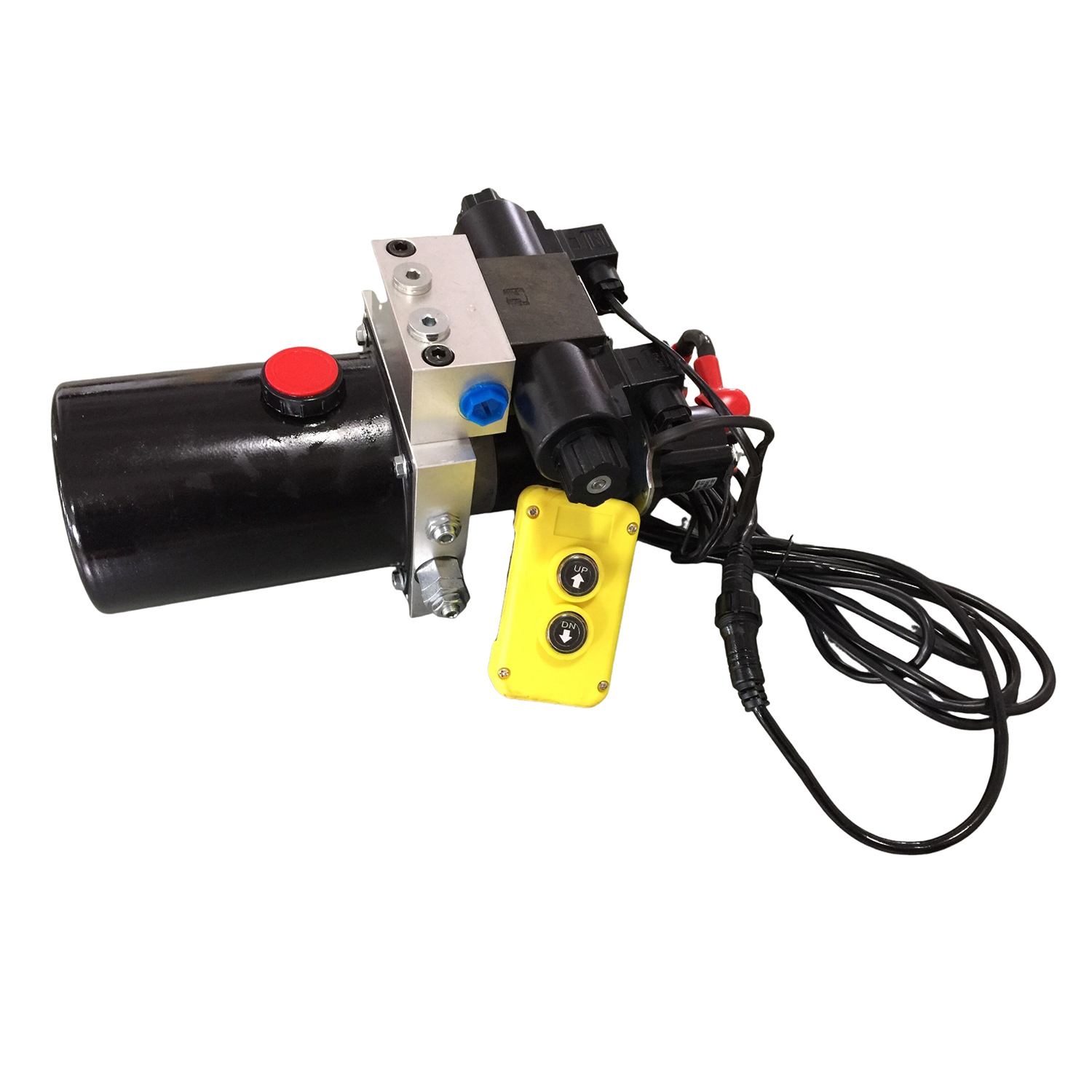

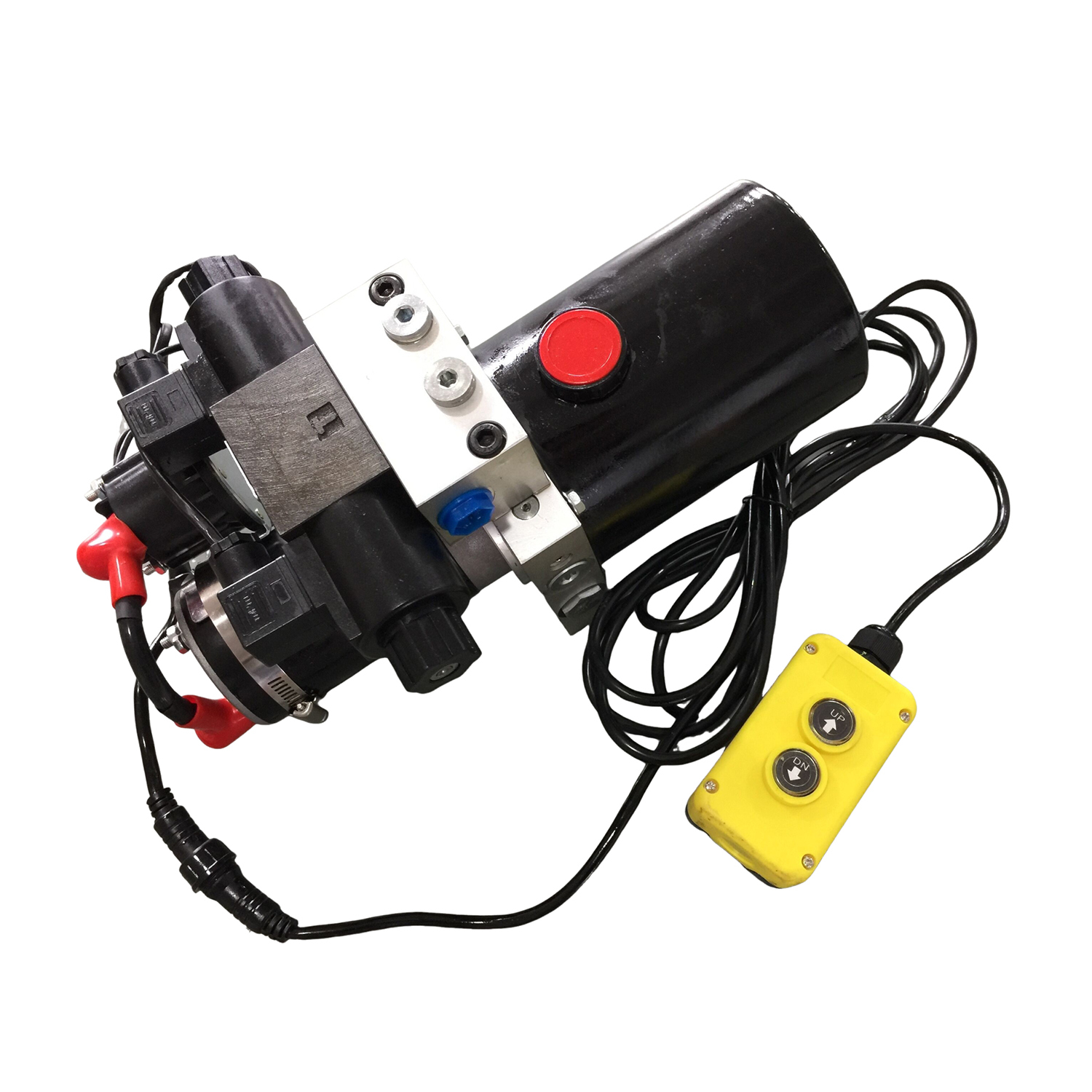

Double Acting Hydraulic Power Unit With 1.0L Steel Tank and 800W motor
This Hydraulic Power Unit is to operate double acting cylinders, complete with 2 buttons remote and cable.
DC 12V Hydraulic power unit.
DC12V 0.8kw electric motor
2.1cc/r gear pump.
1 Litre steel tank with drain plug.
Hydraulic Power pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting.
Max pressure: 210 bar.
Relief valve: RV2-08. set pressure 160 bar, but adjustable from 50-210 bar as standard for each power pack..
Flow Rate: 4 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
2 Button remote with 4 metre cable.
Power Packs suitable for all kinds of double acting Hydraulic cylinders .
Basic Information:
|
Brand Name: |
Tiandi |
|
Model Number: |
TDDL-20-02 |
|
Certificatel |
CE |
|
Place of Origin: |
China |
Specification:
|
Tank Size |
1L |
Oil Port |
G3/8” |
|
Motor |
DC24V,800W. |
Valve Voltage |
DC24V |
|
Oil Pump |
0.75cc/r |
Setting Mode |
Horizontal |
Commercial Term:
|
Minimum Order Quantity: |
50pcs |
|
Price: |
USD140-210/pc |
|
Payment Terms: |
T/T |
|
Supply Ability: |
1,000pcs per month |
|
Delivery Time: |
25 working days after deposit confirmed |
|
Packaging Details: |
Packed in carton boxes ,and then wooden pallets |
Packing Photos:
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
