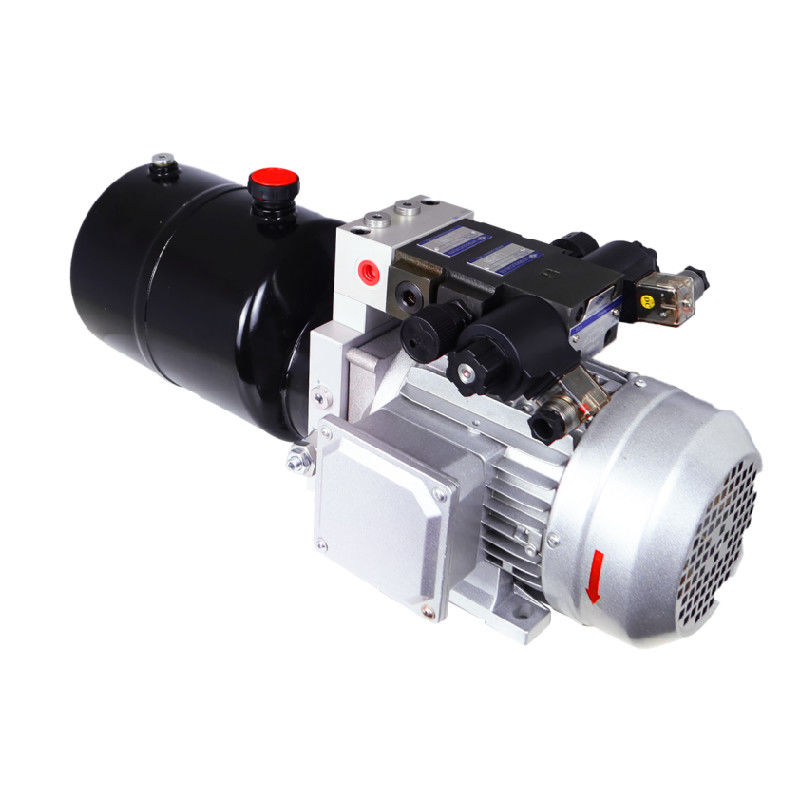

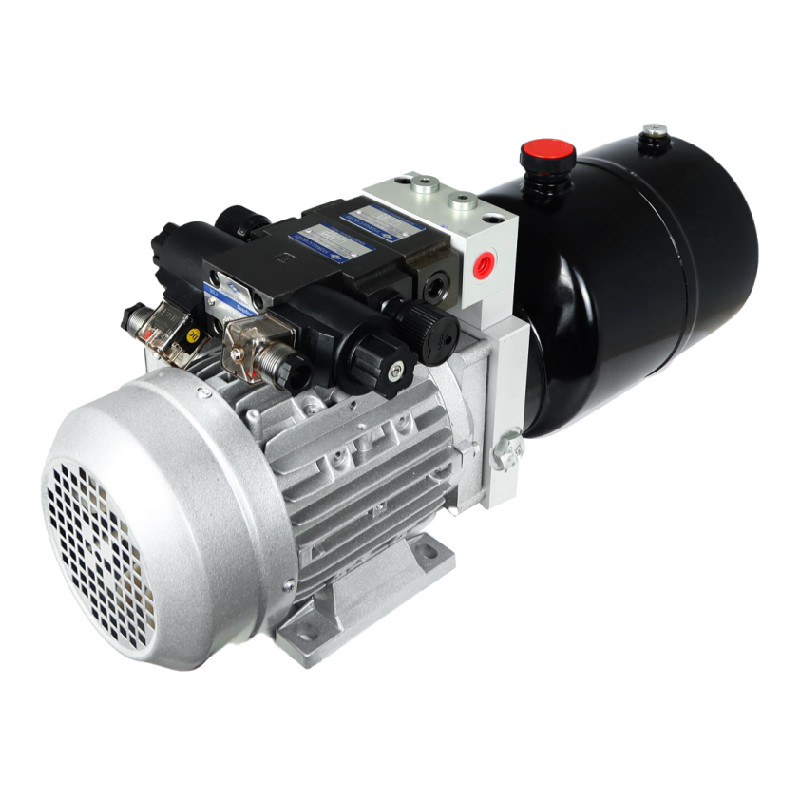

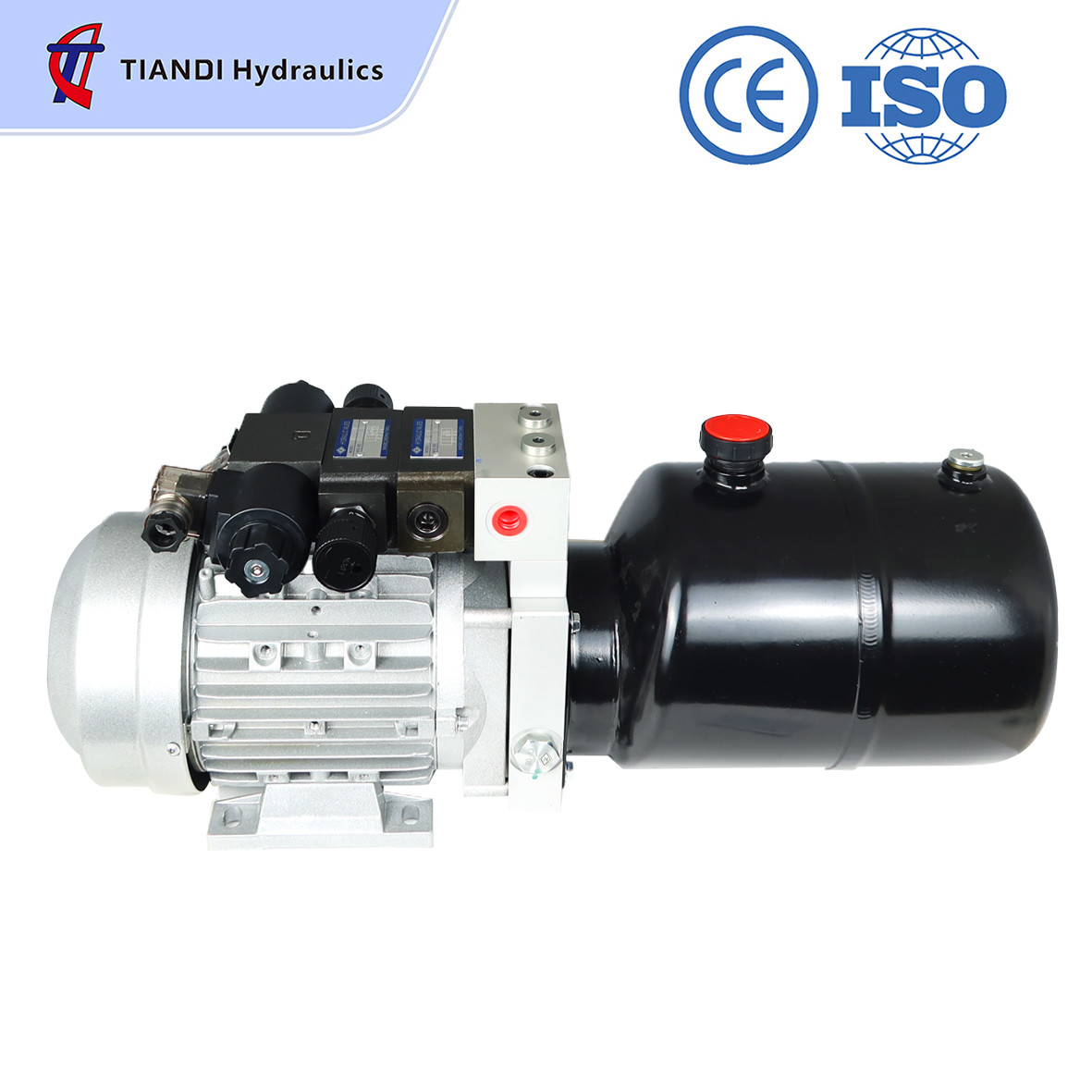

AC 380V Double Acting Hydraulic Power Unit For Lift Lifting Platform Dock Leveller

Basic Information

Place of Origin:	Ningbo China
Brand Name:	TianDi
Certification:	CE,ISO
Model Number:	TDDL25040703

Minimum Order Quantity:	20PCS
Price:	200USD
Packaging Details:	Packed in carton boxes ,and then wooden pallets
Delivery Time:	15 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	2000pcs per month

Get Best Price Contact Now

Working Pressure:	16Mpa	Specification:	Carton Size 50cm25cm30cm
PUMP:	2.5cc/r	Oil Port:	G3/8
Valve Voltage:	AC 380V	Power :	1.5Kw
Tank Size:	4L To 12L	Applicability:	Lift, Lifting Platform, Boarding Bridge
Model:	TDDL25040703
Highlight:	380V Hydraulic Power Unit , Lift Platform Hydraulic Power Unit , Double Acting Hydraulic Power Unit

AC 380V Double Acting Hydraulic Power unit For Lift lifting platform Dock Leveller

Basic Specification

AC 380V Hydraulic power unit.
1.5kw 380V AC electric motor
2.5cc/rgear pump.
6L(etc)Round metal tank with drain plug.
Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting or Vertical.
Max pressure: 160 bar.
Remote control: Optional
Flow Rate: 2Lto 10L/min.
Relief valve and check valve for all standard power unit
Oil Port size :G3/8

Motor	1.5kw 380V AC 1450RPM	Oil Pump	2.5cc/r
Oil Port	G3/8	Tank Size	6L
Valve Votage	380V AC	Mounting Type	Horizontal

Commercial Terms

Minimum Order Quantity:	50pcs
Price:	Negotiation
Payment Terms:	T/T
Supply Ability	2800 pcs per month
Delivery Time:	25 working days after advance payment received
Packaging Details:	Packed in carton boxes ,and then wooden pallets
