380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift

380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift
380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift
Basic Information
Place of Origin: Ningbo China
Brand Name: TianDi
Certification: CE,ISO
Model Number: TDDL-AC-0075
Minimum Order Quantity: 20PCS
Price: Negotiation
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000pcs per month
Get Best Price Contact Now
Working Pressure: 3000psi Specification: Carton Size 50cm*25cm*30cm
PUMP: 8cc/r Oil Port: G1/4
Valve Voltage: AC380V Tank Size: 4L To 12L
Applicability: Hydraulic Dock Leveler ,Hydraulic Lift, Car Lifter
Highlight:

2.2Kw Small Hydraulic Pump Station

,

380V Small Hydraulic Pump Station

,

Small industrial hydraulic power unit

Work Presurre 18MPa Hydraulic Power Pack For Forks-Lift


Basic Specification

  • AC 380V Hydraulic power unit.
  • 2.2kw 380VDC electric motor
  • 8cc/rgear pump.
  • metal motor cover.
  • 6L(etc)Round steel tank with drain plug.
  • Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
  • Mounting: Horizontal Mounting or Vertical.
  • Max pressure: 210 bar.
  • Relief valve: RV2-08.
  • Flow Rate: 2Lto 8L/min.
  • Relief valve and check valve for all standard power unit
  • Oil Port size :1/4"BSP


Motor  AC380V 2.2KW 1450RPM Oil Pump 8cc/r
Oil Port G1/4 Tank Size 6L
Valve Votage AC380V Mounting Type Horizontal



Commercial Terms


Minimum Order Quantity: 50pcs
Price: USD198/set
Payment Terms: T/T
Supply Ability 2800 pcs per month
Delivery Time: 25 working days after advance payment received
Packaging Details: Packed in carton boxes ,and then wooden pallets


Drawing


380V 2.2Kw Small Hydraulic Pump Station For Car Lifter Dock Leveler Lift 0



Description

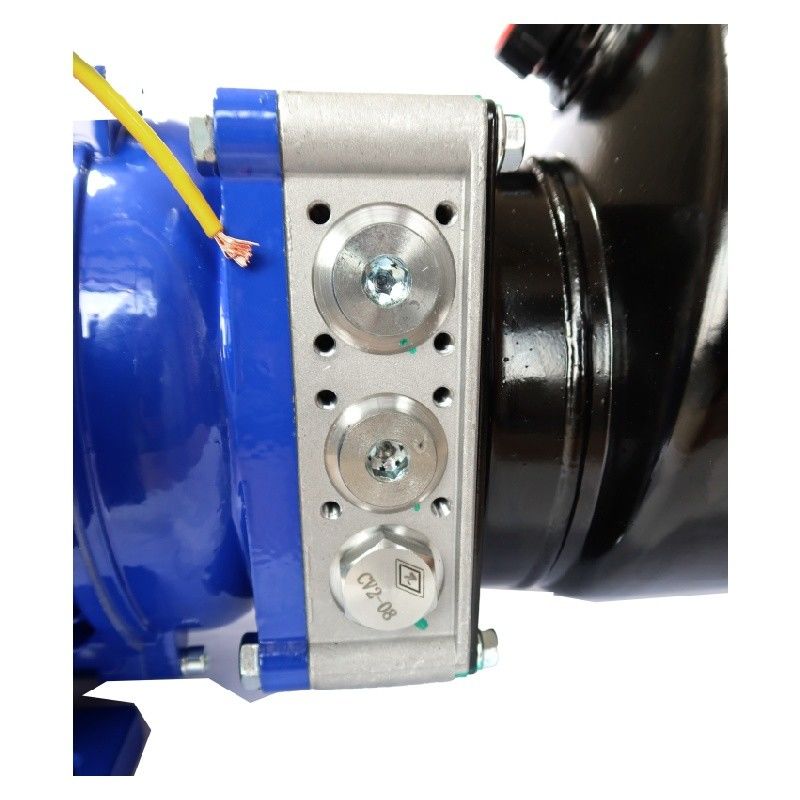

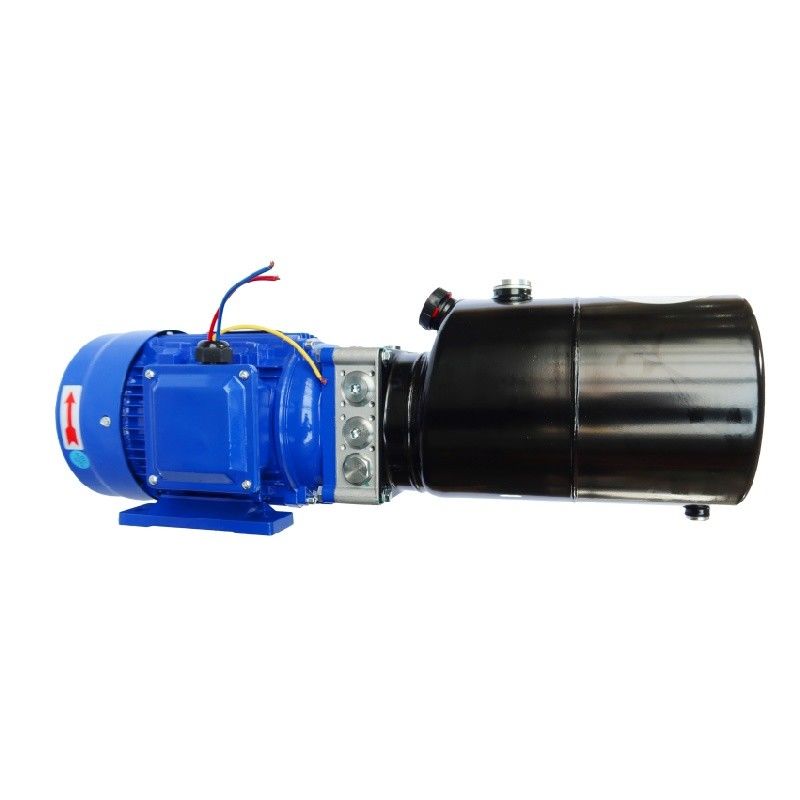

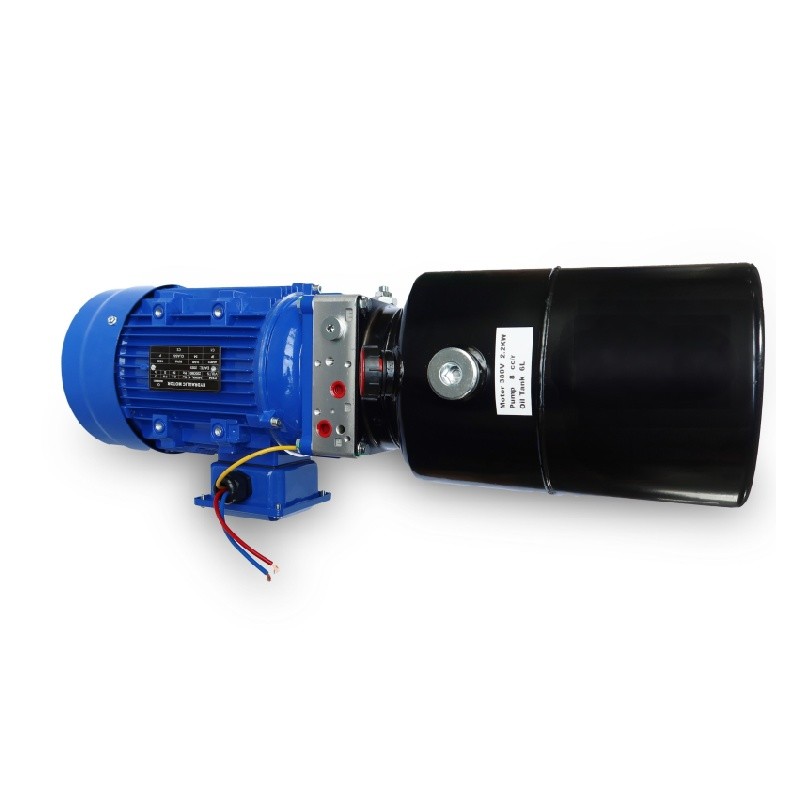

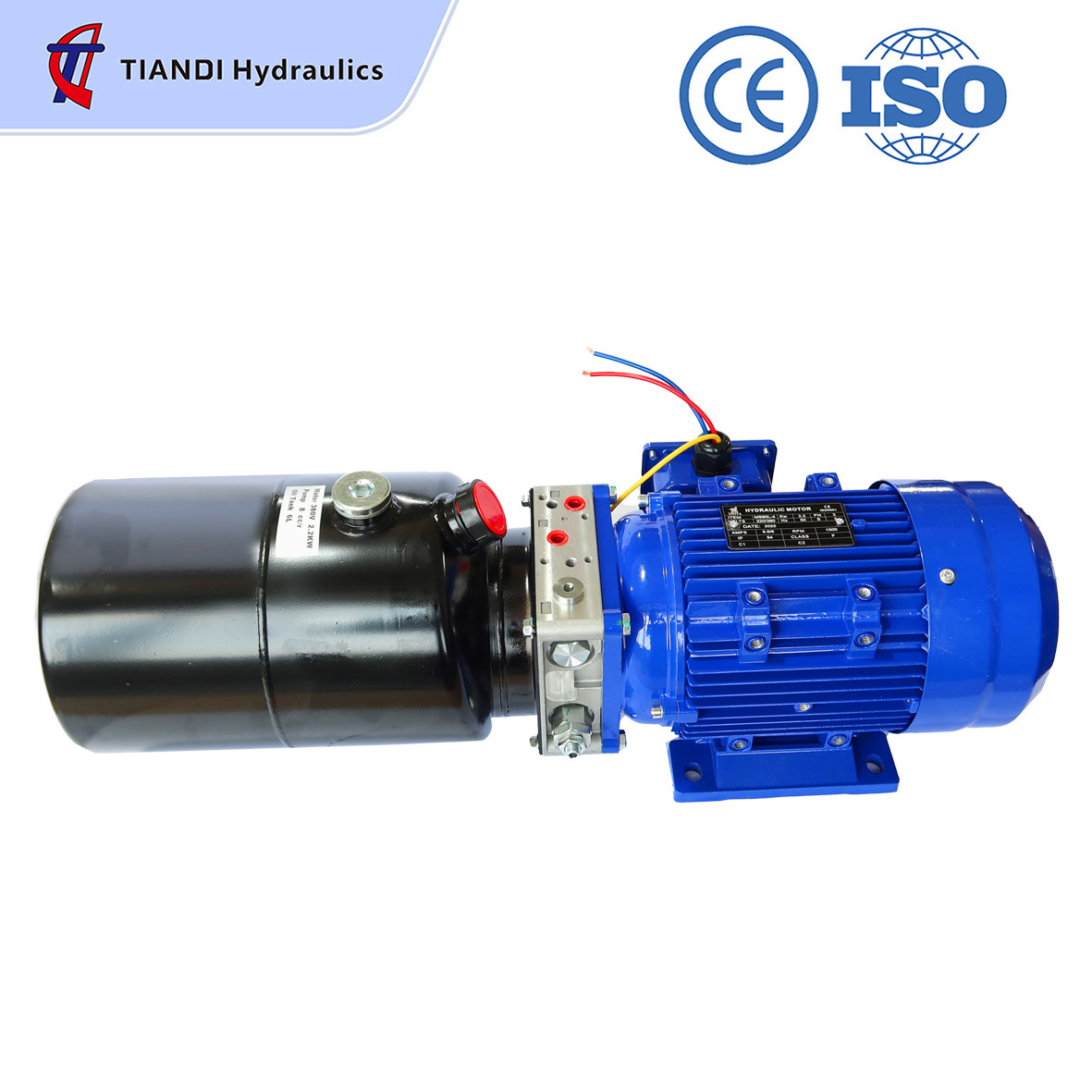

1). Components: This power pack is powered up and down .It components by a high pressure gear pump, a AC motor, a aluminum center manifold, valves and a hydraulic oil tank.

2). How to Work: Push “up” button to start the motor to lift the Trailer, and the solenoid release valve actives the lowering movement.

3). Applications: It is especially designed and widely used in dock leveler applications.

Tag:

hydraulic power pack unit,

industrial hydraulic power units,

compact hydraulic power unit
