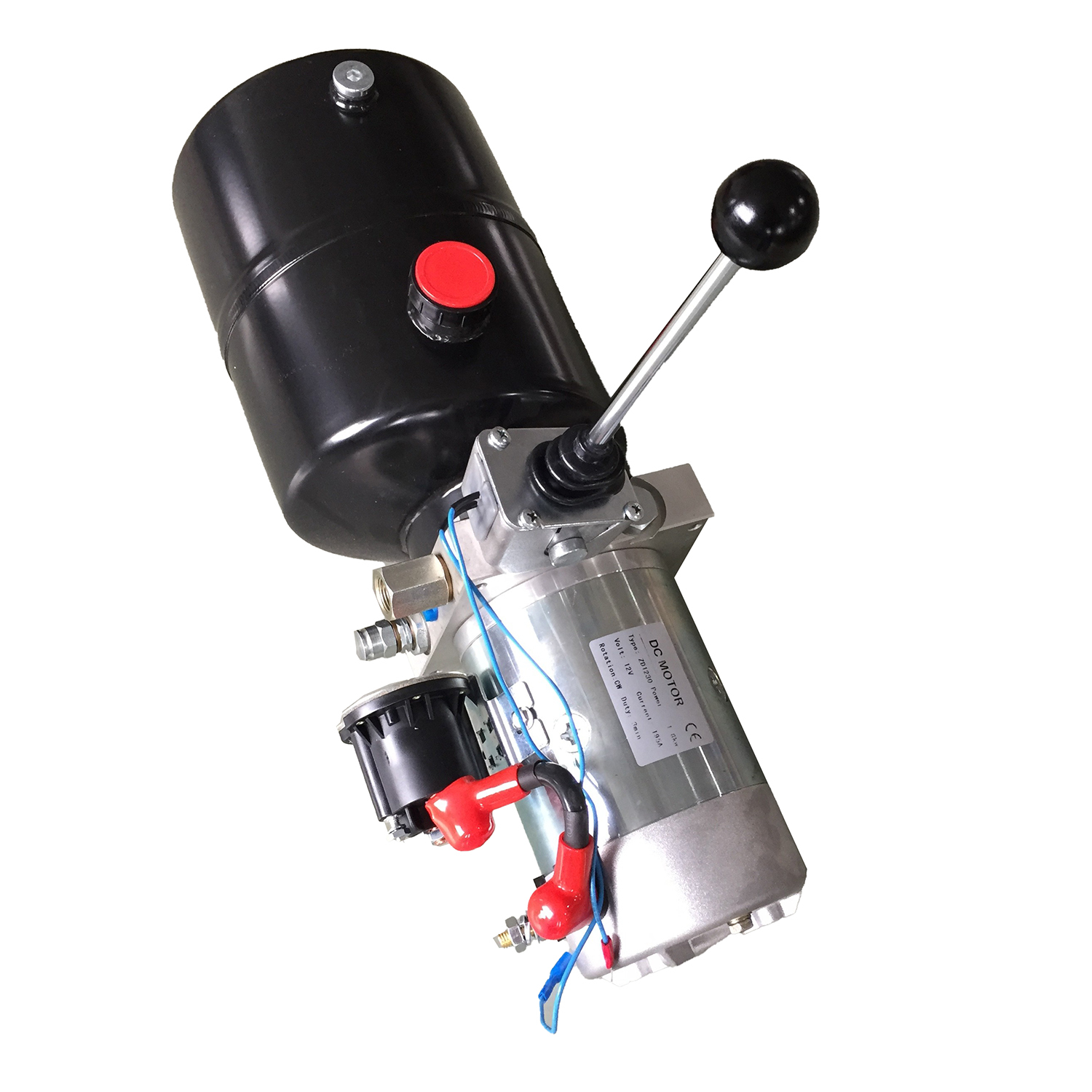

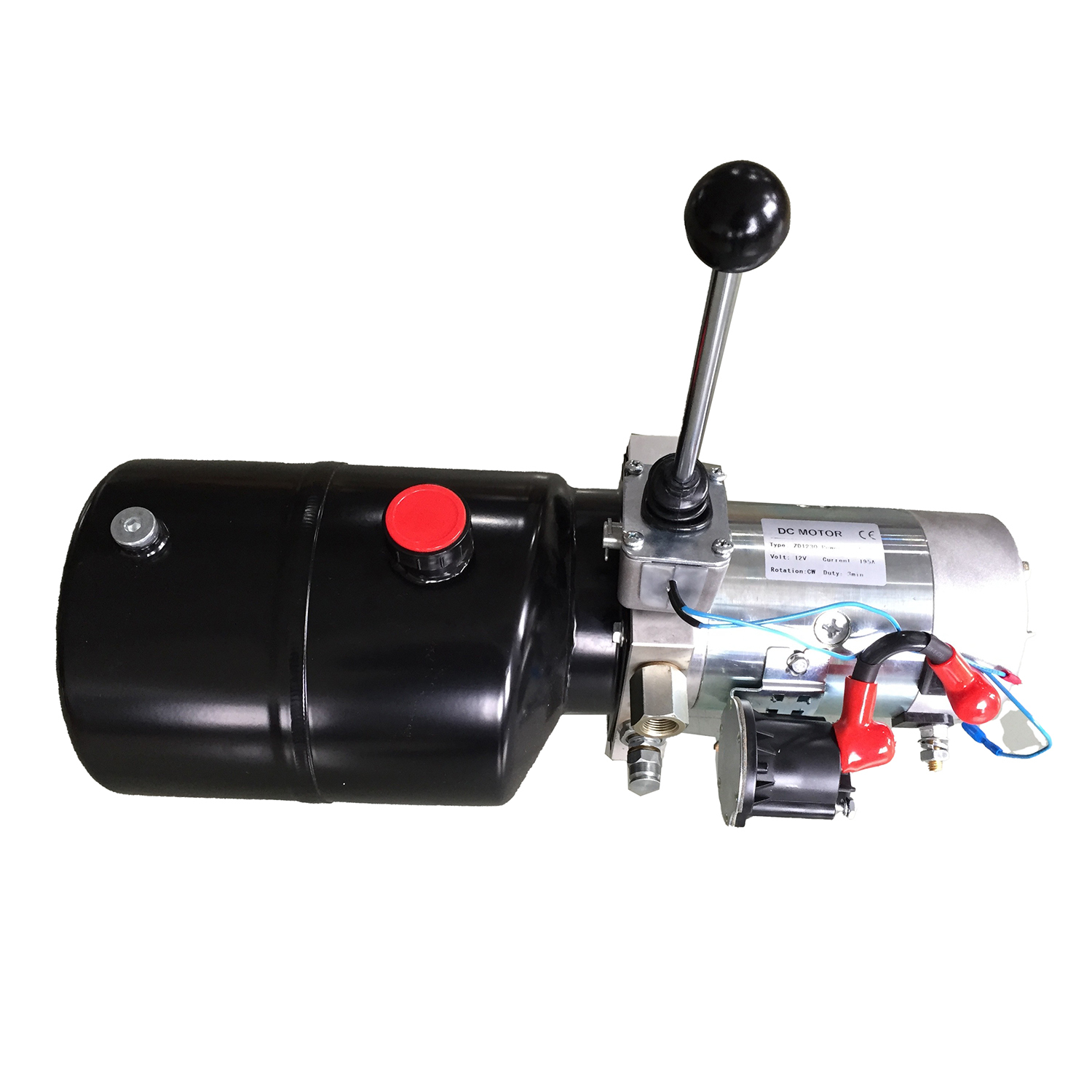

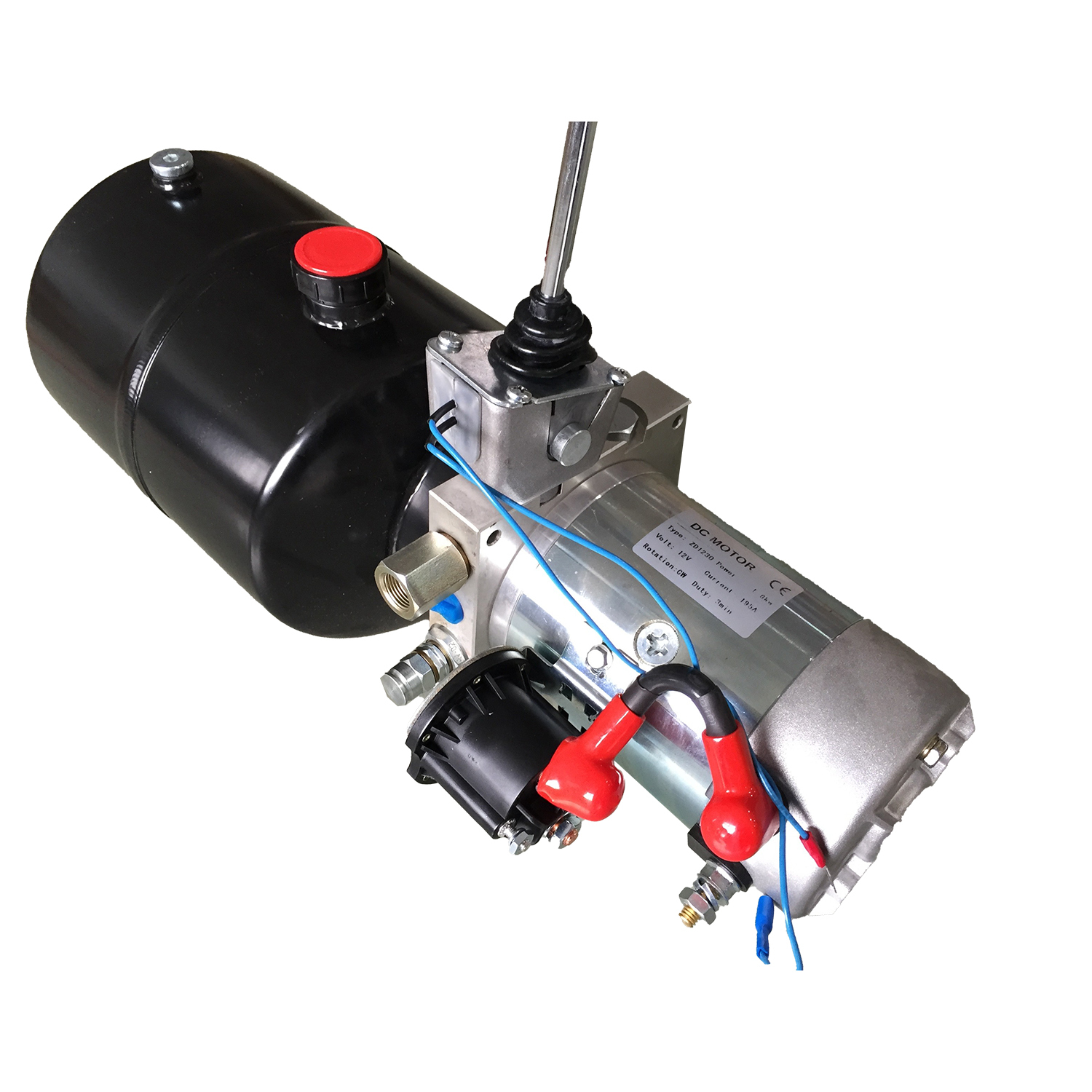

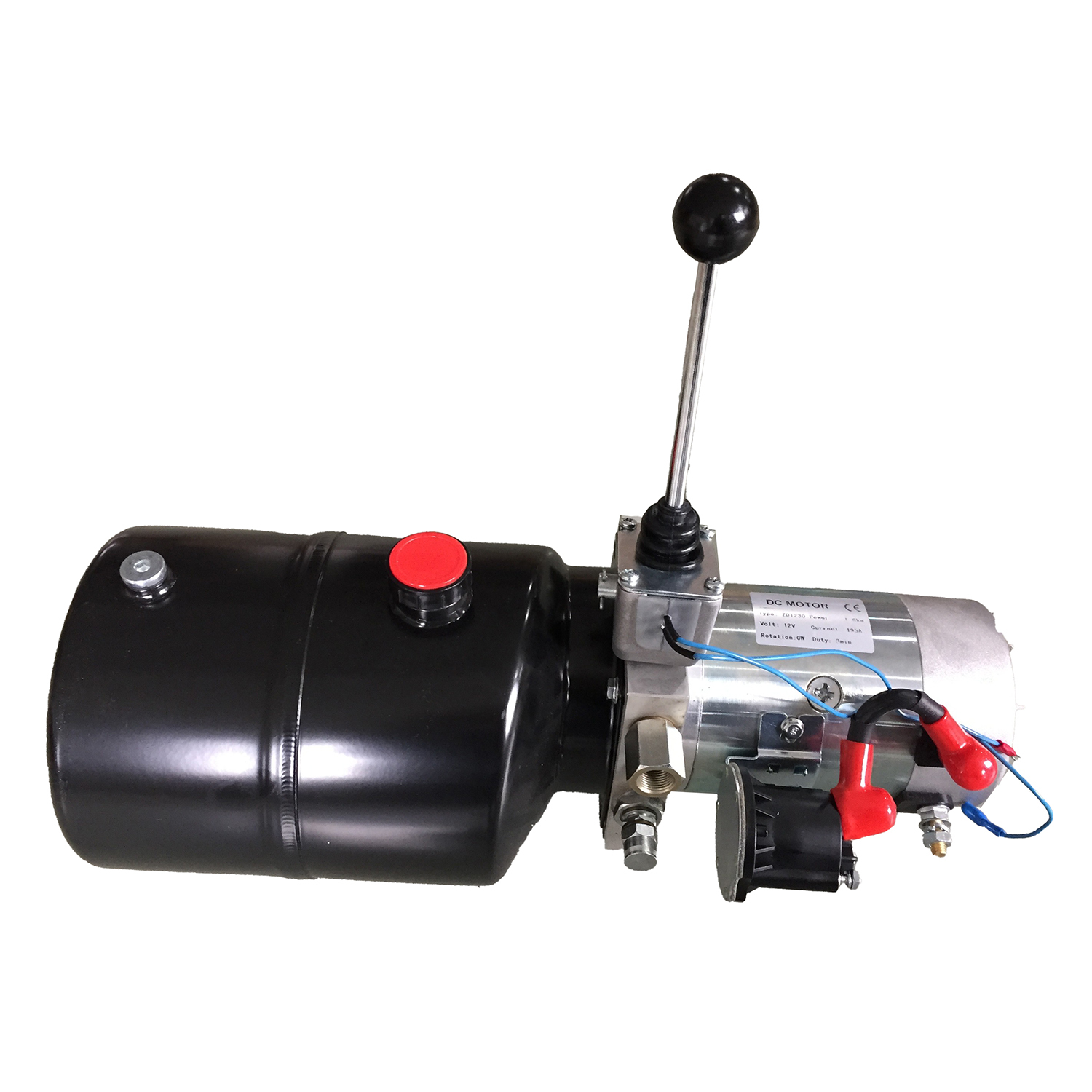

Single Acting Hydraulic Power Pack With DC 12V Motor and steel tank for fork lift
This Hydraulic Power Unit is to operate single acting cylinders, complete with 2 buttons remote and cable.
DC 12V Hydraulic power unit.
DC12V 1.6Kw motor
2.1cc/r gear pump.
6 Litre steel tank with drain plug.
Hydraulic Power pack complete with suction filter, remote,return oil pipe and air breather.
Mounting: Horizontal Mounting.
Max pressure: 210 bar.
Relief valve: RV2-08. set pressure 180 bar, but adjustable from 50-210 bar as standard for each single acting hydraulic power pack.
Check Valve:CV2-08. Non-return Valve to keep cylinder stay .
Flow Rate: 5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
Power Packs suitable for all kinds of single acting Hydraulic cylinders.
DC 12V 1600W 2500RPM
Minimum Order Quantity:
500pcs per month
25 working days after advance payment received
Packed in carton boxes ,and then wooden pallets
Hydraulic Power Pack Assemble Plant:
1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
