Orange 6L Steel Tank DC Compact Hydraulic Power Unit for Dump Trailer

Basic Information

Place of Origin:	Ningbo China
Brand Name:	TianDi
Certification:	CE,ISO
Model Number:	TDDL-10-03

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	Packed in carton boxes ,and then wooden pallets
Delivery Time:	15 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	2000pcs per month

Get Best Price Contact Now

Oil Port:	G3/8”	Tank Size:	6L
Motor:	DC12V	Pump:	2.1cc/r
Working Pressure:	180bar	Mounting Type:	Horizontal
Highlight:	electric hydraulic power pack , small hydraulic power pack

Orange 6L Steel Tank DC Compact Hydraulic Power Unit for Dump Trailer

Single Acting DC Hydraulic Power Unit with Orange Steel Tank

This hydraulic power unit is designed to operate single acting cylinders, specifically for dump trailer applications.

Key Features

DC 12V hydraulic power unit with 1.6kw electric motor
2.1cc/r gear pump with 5 l/min flow rate
6 litre steel tank (red color) with drain plug
Complete with suction filter, return oil pipe and air breather
Vertical mounting design
Maximum pressure: 210 bar
Adjustable relief valve (RV2-08) with standard setting of 160 bar (adjustable 50-200 bar)
Oil port size: 3/8"BSP

Basic Information

Brand Name	TIANDI
Model Number	10-03
Certificate	CE
Place of Origin	China

Technical Specifications

Motor	DC 12V
Working Pressure	180bar
Oil Port	G3/8"
Tank Size	6L
Mounting Type	Horizontal

Commercial Terms

Minimum Order Quantity	50pcs
Price	USD130.00/PC
Payment Terms	T/T
Supply Ability	5000pcs per month
Delivery Time	25 working days after advance payment received
Packaging Details	Packed in carton boxes, and then wooden pallets

Hydraulic Schematics

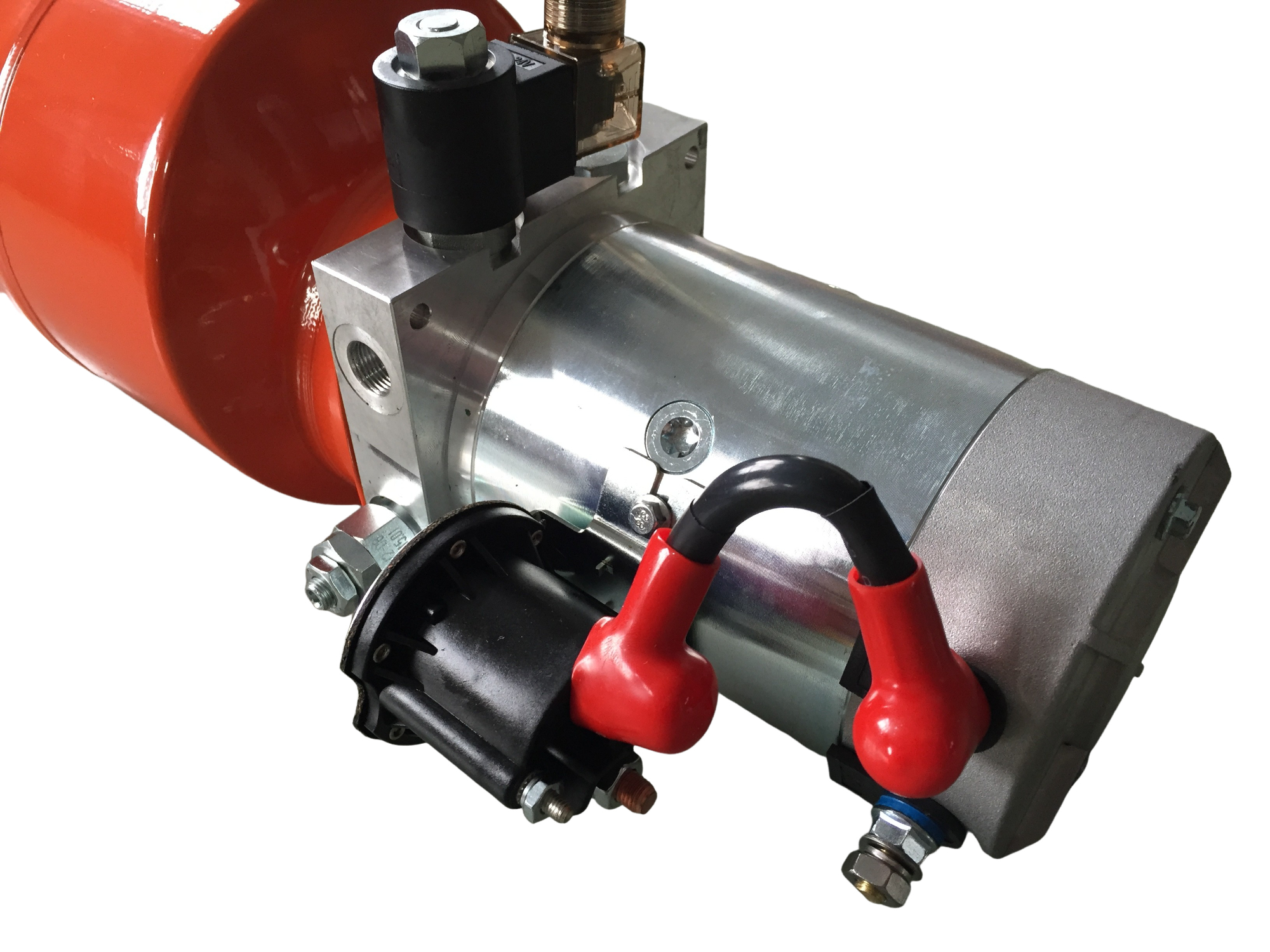

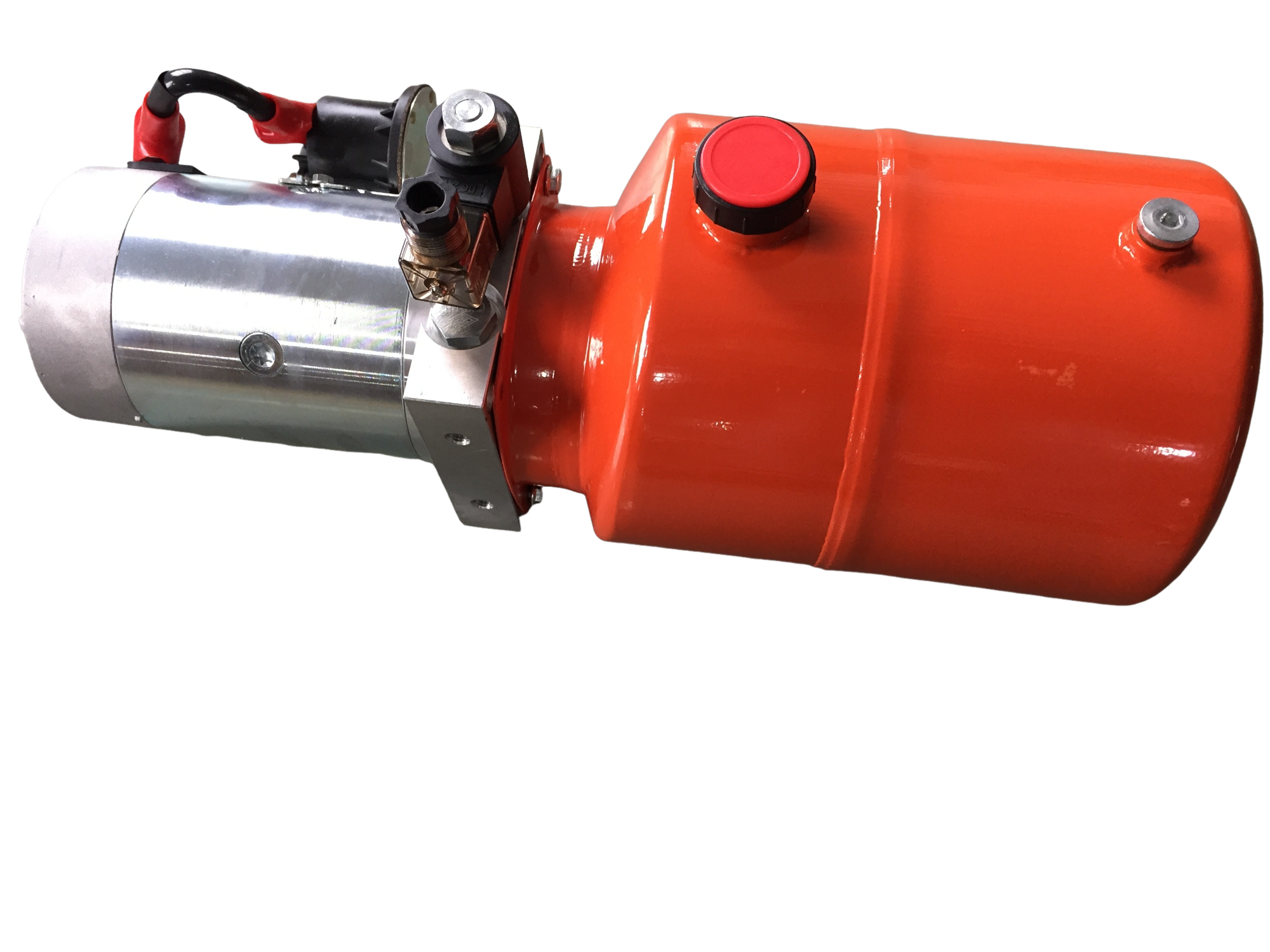

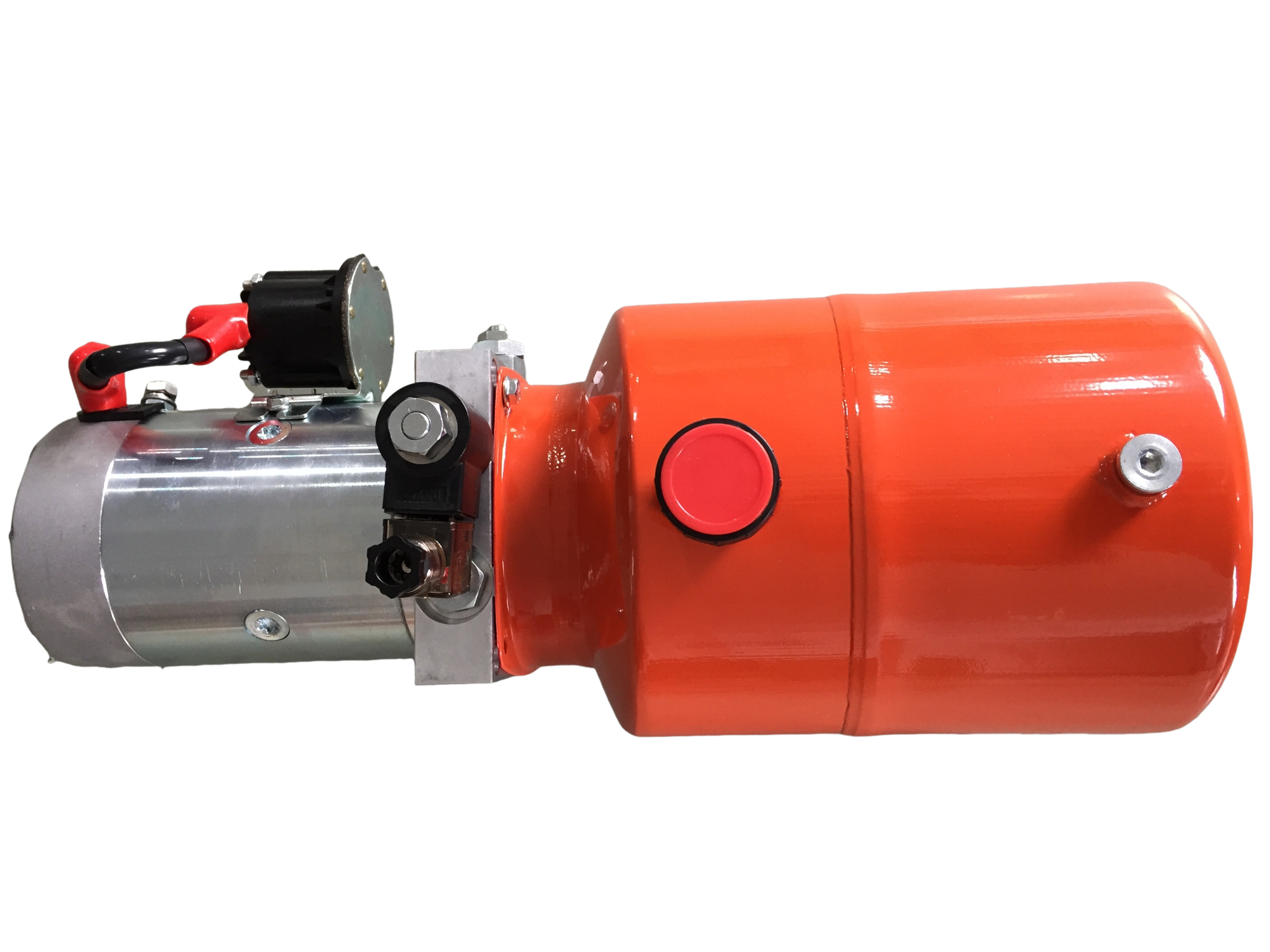

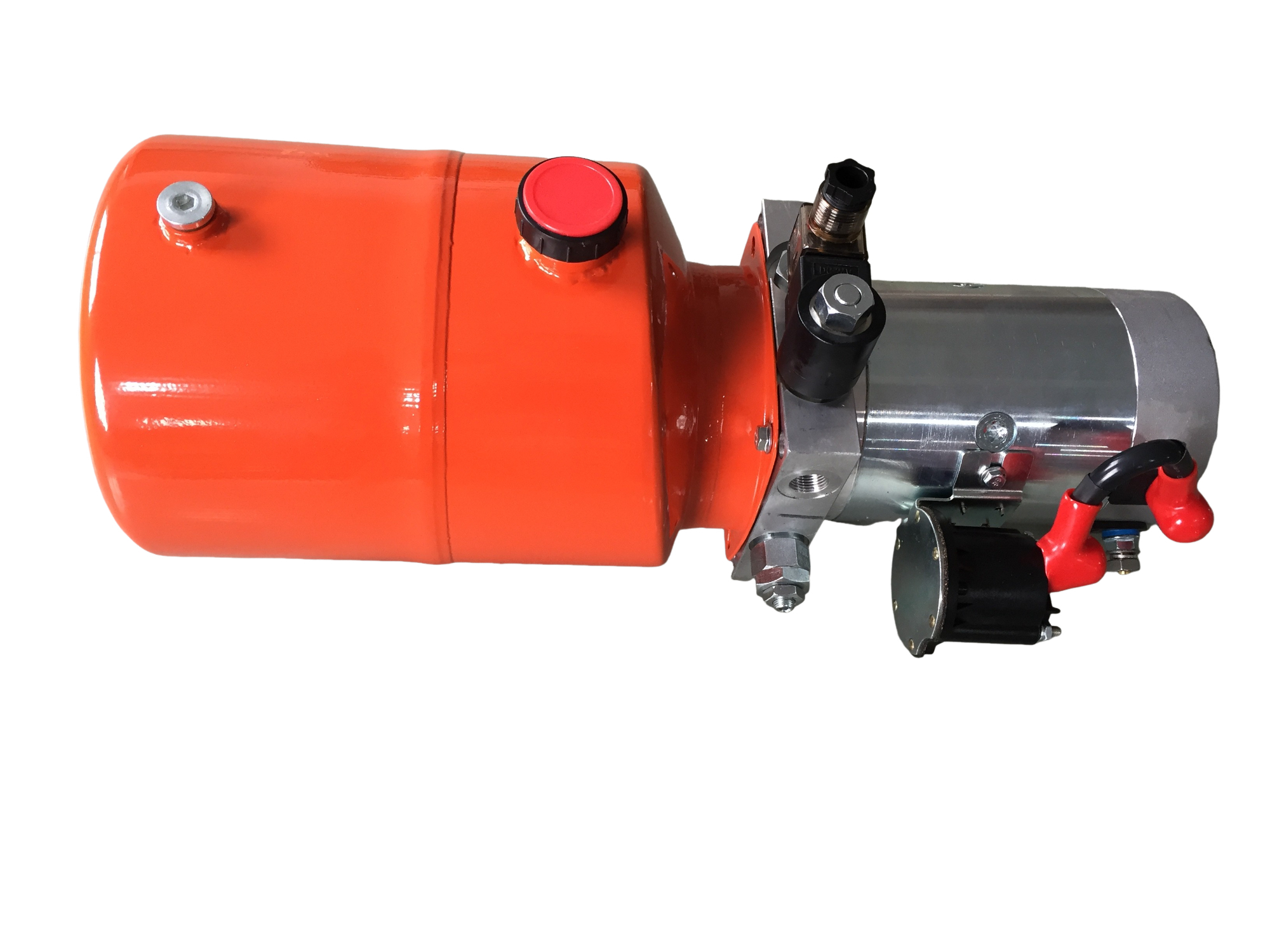

Product Photos

Competitive Advantages

TIANDI hydraulic is one of the earliest manufacturers of hydraulic packs and units, with a professional team for cost-effective raw material procurement and well-trained workforce ensuring competitive pricing.
Our export department staff are highly professional and efficient, capable of handling all export processing, product inquiries, documentation, and providing reliable support throughout the process.
