| Place of Origin: | China |
|---|---|
| Brand Name: | Tiandi |
| Certification: | CE |
| Model Number: | TDDL-10-03 |
| Minimum Order Quantity: | 50 sets |
| Price: | USD130-150/sets |
| Packaging Details: | Packed in carton boxes ,and then wooden pallets |
| Delivery Time: | 25work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | USD120/set |
| Motor: | DC 12V 800W | Oil Pump: | 0.75cc/r |
|---|---|---|---|
| Oil Port: | G3/8” | Tank Size: | 1L |
| System Pressure: | 16Mpa | Mounting Type: | Horizontal |
| High Light: | electric hydraulic power pack,small hydraulic power pack |
||

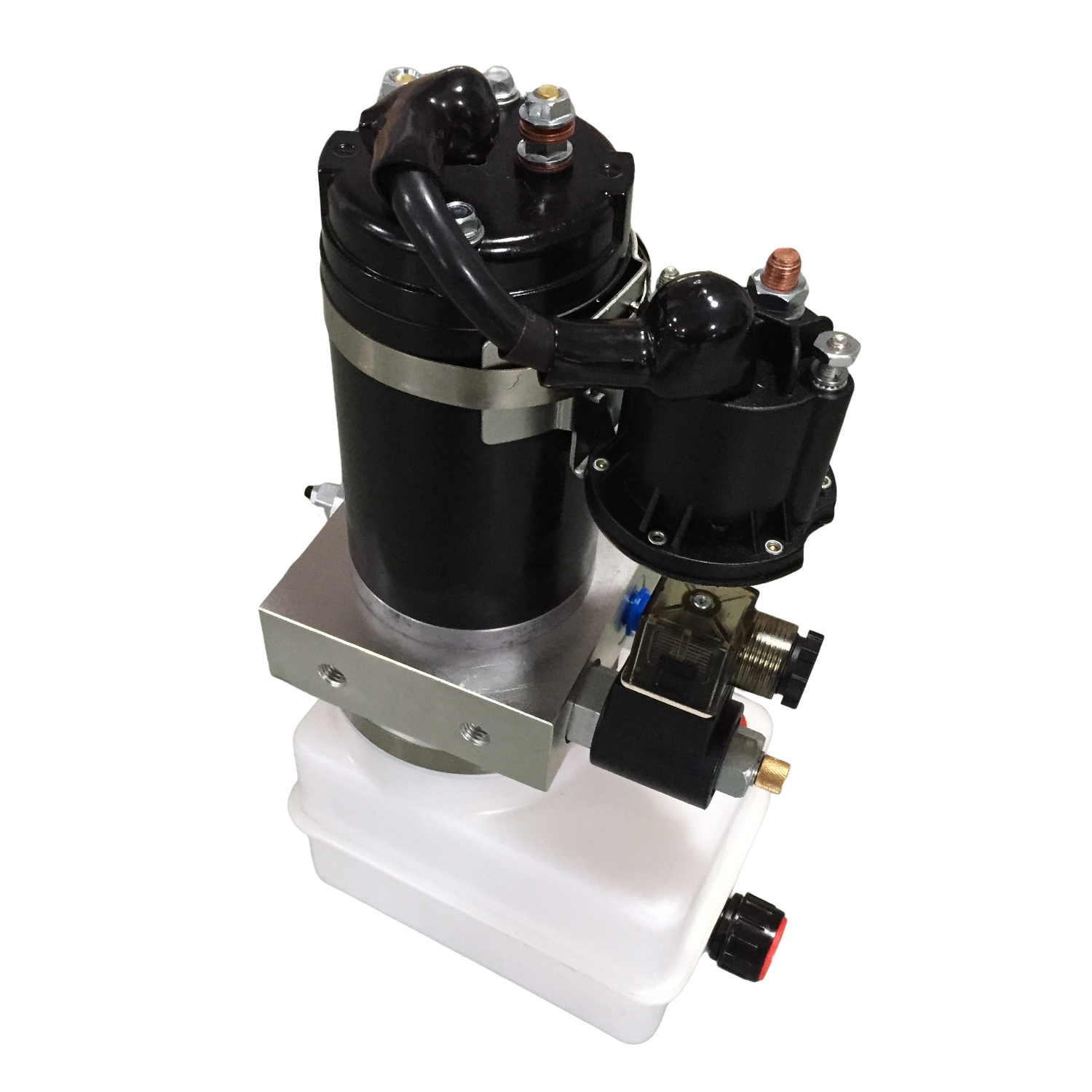

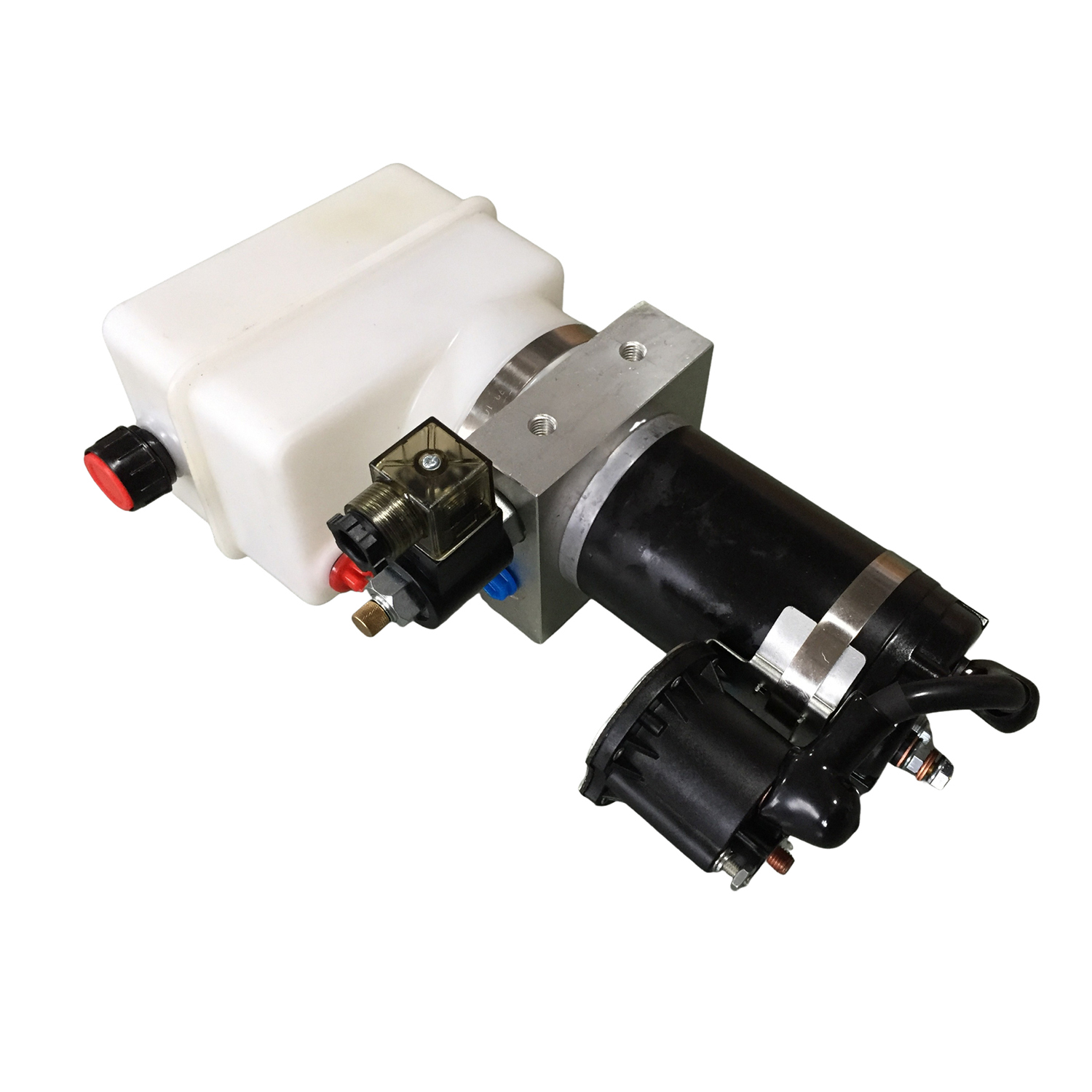

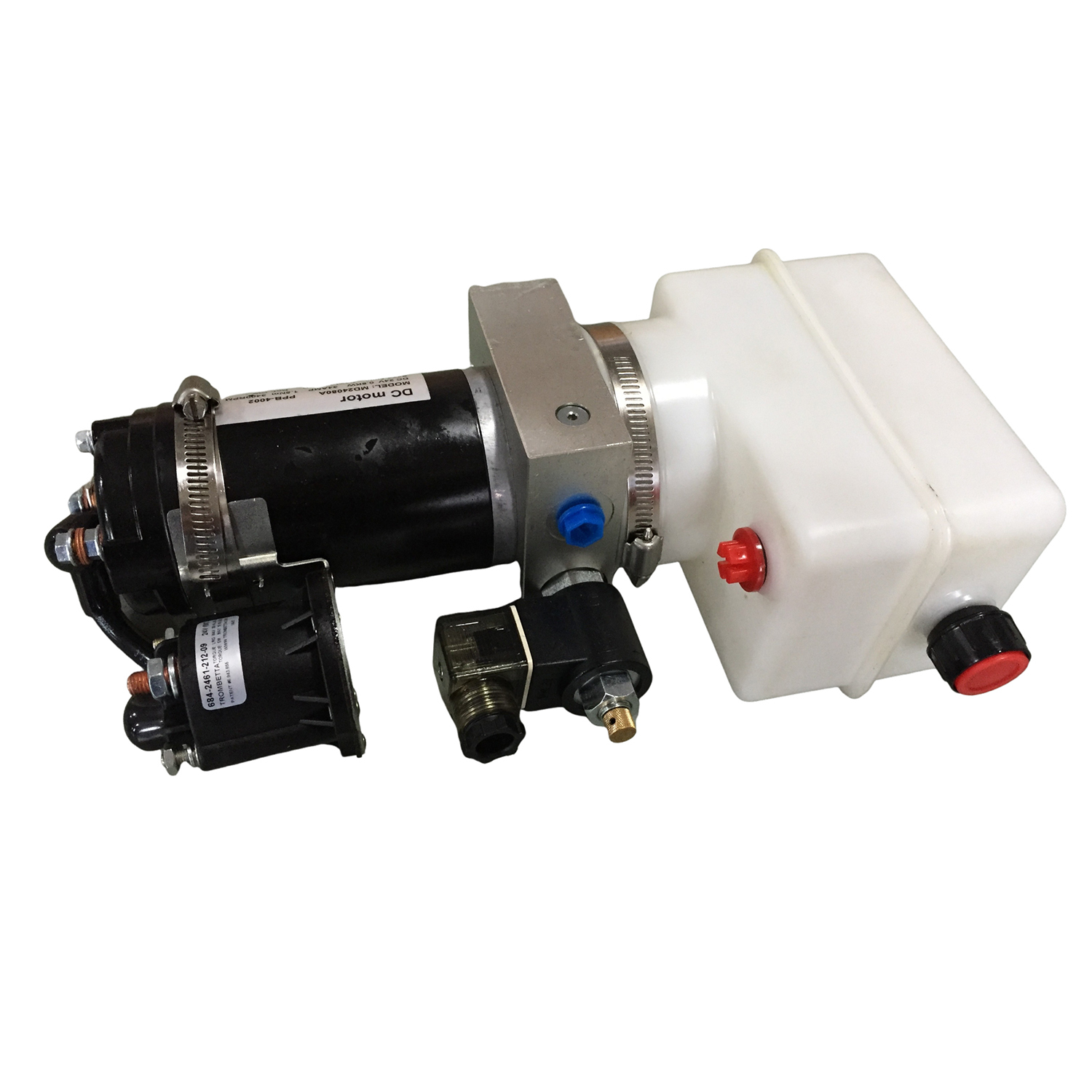

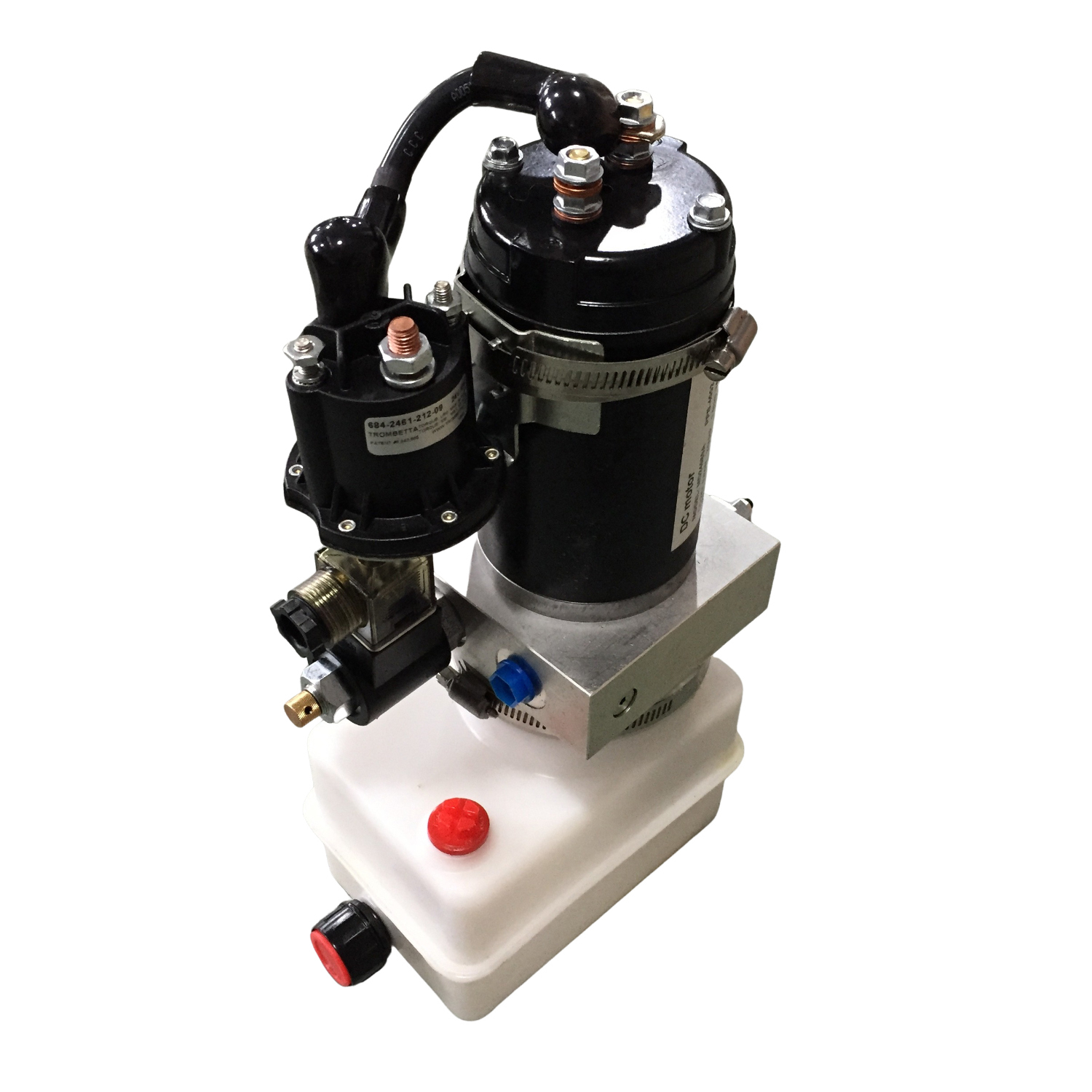

Single Acting Hydraulic Power Pack with Plastic Tank
This Hydraulic Power Unit is to operate single acting cylinders,
DC 12V Hydraulic power unit.
DC12V 0.8Kw motor
0.75cc/r gear pump.
1.5 Litre plastic tank with drain plug.
Hydraulic Power pack complete with suction filter, remote,return oil pipe and air breather.
Mounting: Horizontal Mounting.
Max pressure: 160 bar.
Relief valve: RV2-08. set pressure 180 bar, but adjustable from 50-210 bar as standard for each single acting hydraulic power pack.
Check Valve:CV2-08. Non-return Valve to keep cylinder stay .
Flow Rate: 2.5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :1/4"BSP
Power Packs suitable for all kinds of single acting Hydraulic cylinders.
Basic Information
|
Motor |
DC 12V 800W 2500RPM |
Gear Pump |
0.75cc/r |
|
Oil Port |
G1/4" |
Tank Size |
1.5L |
|
System Pressure |
16Mpa |
Mounting Type |
Horizontal |
Commercial Terms
|
Minimum Order Quantity: |
50pcs |
|
Price: |
USD120.00/PC |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500pcs per month |
|
Delivery Time: |
25 working days after advance payment received |
|
Packaging Details: |
Packed in carton boxes ,and then wooden pallets |
DC12V Power Pack Drawing:
Hydraulic Power Pack Assemble Plant:
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
