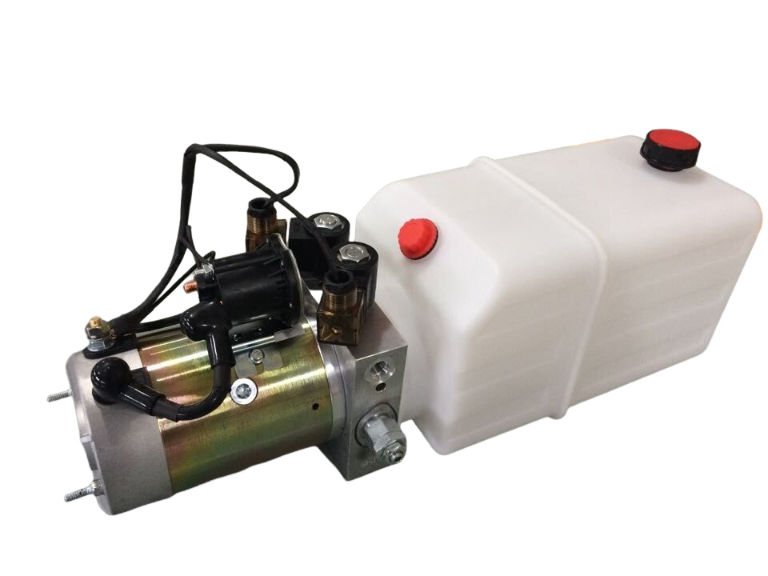

High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer

High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer
High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer
Basic Information
Place of Origin: Ningbo China
Brand Name: TianDi
Certification: CE,ISO
Model Number: TD-DL Series
Minimum Order Quantity: 20PCS
Price: Negotiation
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 15 work days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000pcs per month
Get Best Price Contact Now
Plastic Cover For Motor: YES. MC-02 Tank: 4L To 18L, Steel Or Plastic, Horizontal Or Vertical
Ports: G1/4” ,G3/8”,SAE6#,M14x1.5 Motor: 12V, 1600W, 2800 RPM, S3 Duty.
Gear Pump: 1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r Relief Valve Pressure: 180Bar
Remote And Cable: 2 Buttons, 3 Wires, 4meters With Quick Connector Solenoid Valve: 12VDC 18W Coil
Packing: One Power Pack In A Boxes And Then Pallets Weight: About 15-18kgs/pc With Each Power Pack
Highlight:

electric hydraulic power pack

,

small hydraulic power pack

High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer
DC12V Double Acting Tipper Trailer Hydraulic Power Pack with Remote

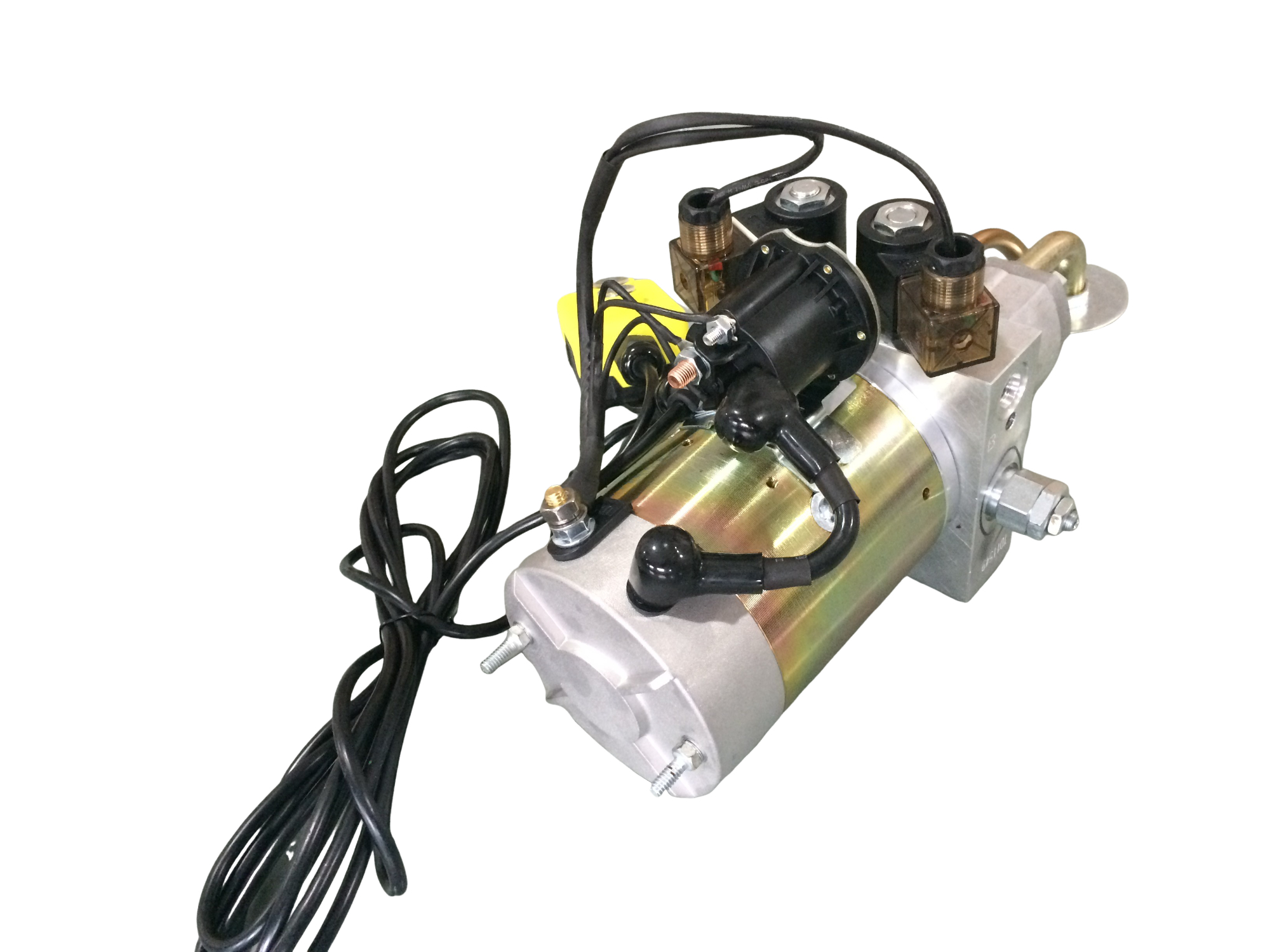

Components

This power pack features power up and power down functionality. It includes:

  • High pressure gear pump
  • DC motor
  • Aluminum center manifold
  • Check valve
  • Relief valve
  • Solenoid release valve
  • Hydraulic oil tank
Operation

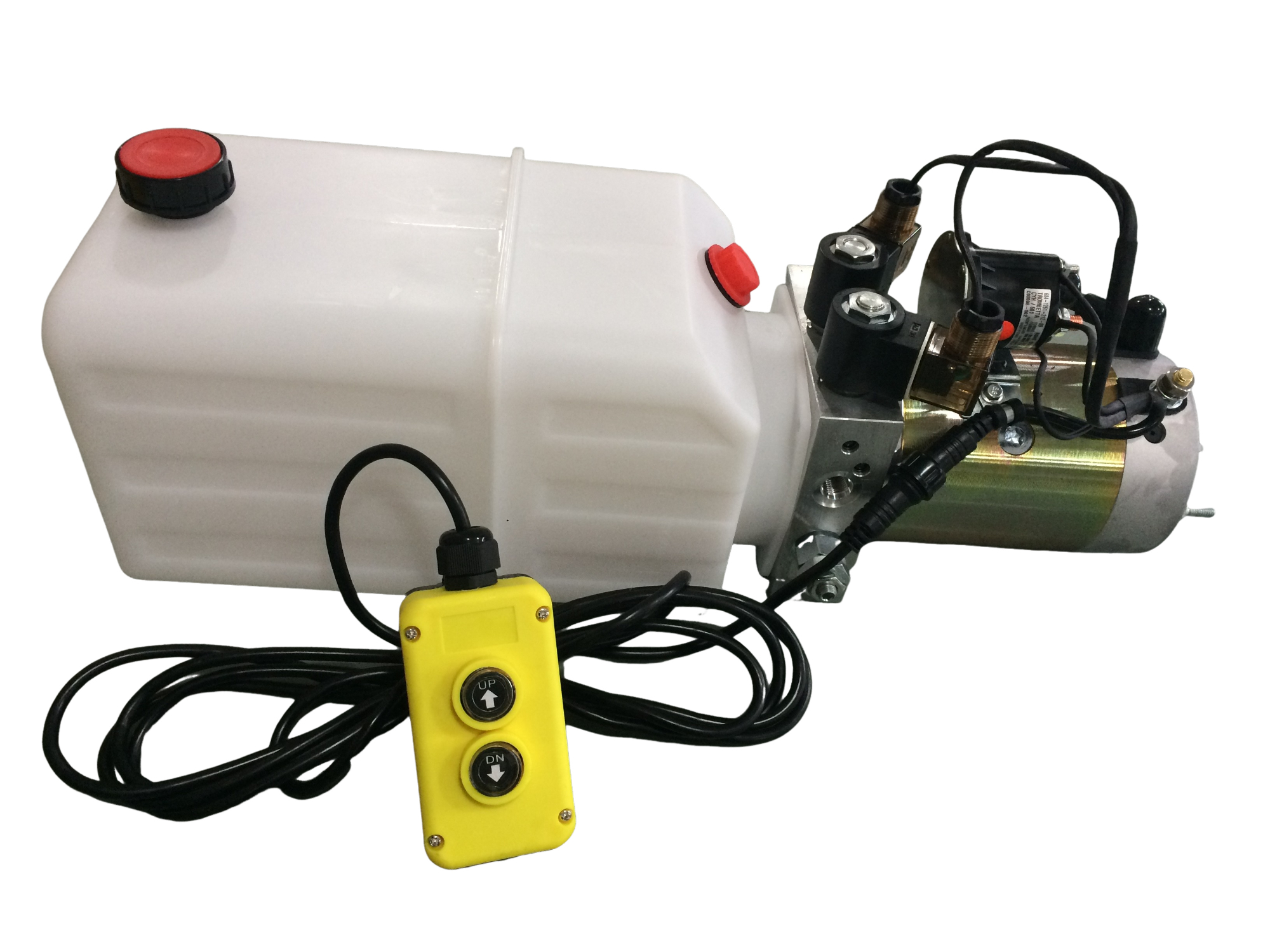

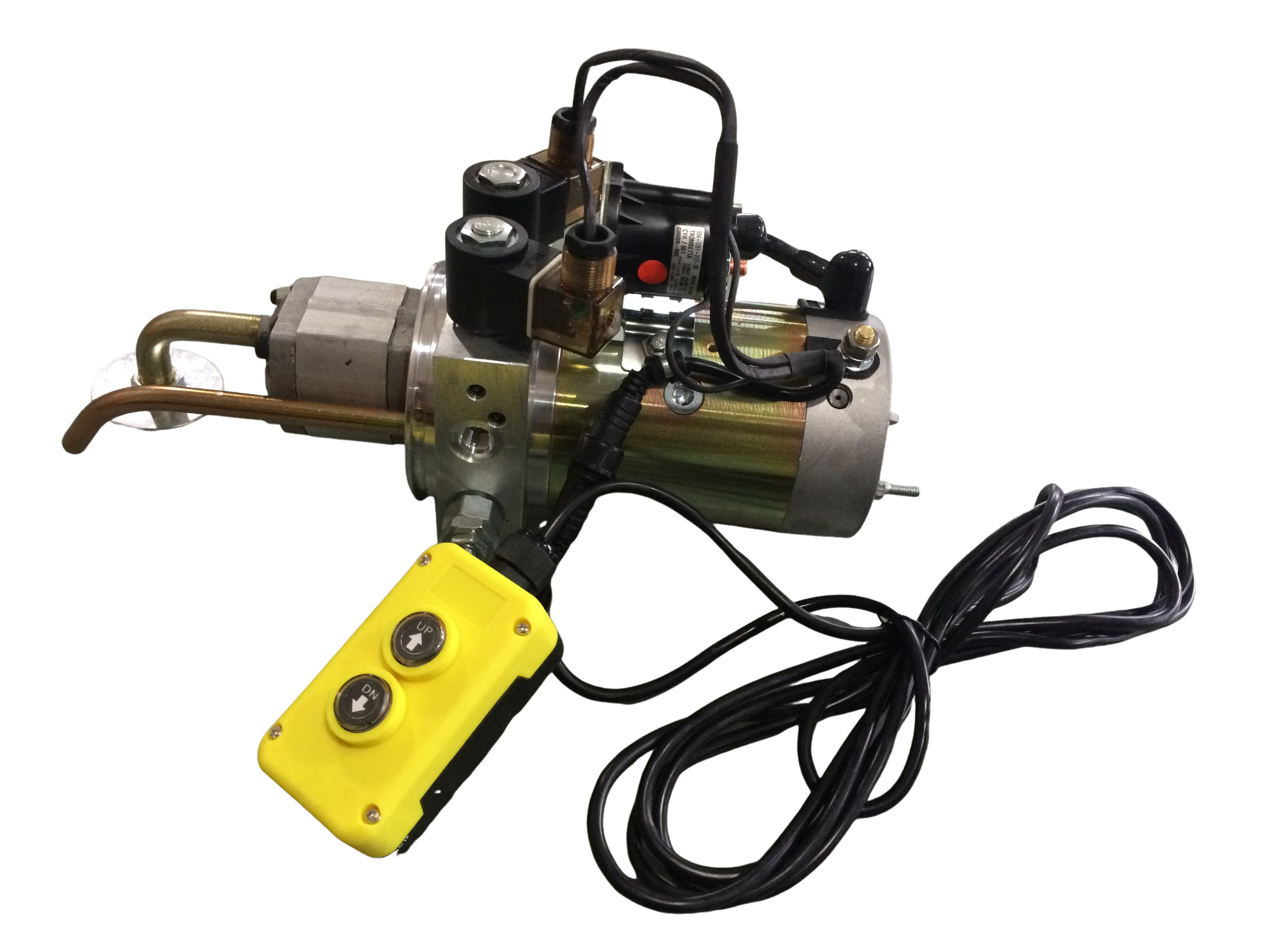

Push "up" button to start the DC motor to lift the trailer. Push "DN" button to activate the solenoid valve and DC motor to release the trailer down.

Applications

Widely used in tipper trailers, fork lifts, scissor lifts and other single acting lift applications.

Specifications
Plastic Cover for Motor YES. MC-02
Tank 4L to 18L, Steel or Plastic, horizontal or vertical
Ports G3/8", G1/4", SAE6#
Motor 12V, 1600W, 2800 RPM, S3 Duty
Gear Pump 1.6cc/r, 2.1cc/r, 2.5cc/r, 3.2cc/r
Relief Valve Pressure 180Bar
Remote and Cable 2 Buttons, 3 lines, 4meters
Solenoid Valve 12VDC 18W coil
Packing One power pack in a box and then pallets
Weight About 15-18kgs/pc with each Power Pack
Price: From USD125.00 to USD185.00/suit (including motor, pump, tank, manifold, valves, remote and cable, Plastic Cover for DC motor)
Drawings
High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer 0
Hydraulic Power Pack Schematics
High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer 1
Packing Information

About 15-18kgs/pc with each Power Pack (different specs, tanks, different weight, different box size)
