Ningbo Zhenhai Tiandi Hydraulic CO.,LTD
Quality Drives Development ,Faith Explores Future
| Place of Origin: | China |
|---|---|
| Brand Name: | Tiandi |
| Certification: | CE |
| Model Number: | TDDL-20 |
| Minimum Order Quantity: | 50pcs |
| Price: | USD120.00 – 230.00 / Set |
| Packaging Details: | Packed in carton boxes ,and then wooden pallets |
| Delivery Time: | 25 working days after advance payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5,500sets per month |
| Product Name: | Hydraulic Power Pack | Motor: | DC 12V 1.6KW |
|---|---|---|---|
| Tank Size: | 4L To 12L | System Pressure: | 180Bar |
| Remote Cable: | 2 Button | Flow Rate: | From 2 To 8LPM |
| Oil Pump: | 0.75cc/r To 7cc/r | Mounting Type: | Horizontal/Vertical |
| High Light: | electric hydraulic power pack,portable hydraulic power pack |
||
Double Acting DC 12V 1.6KW Hydraulic Power Pack
Specifications:
| Technical Details | Motor | DC12V 1.6Kw |
| Duty | S3 | |
| Pump (cc/r) | 0.75 1.6 2.1 2.5 3.2 4.2 4.8 5.8 7.0 | |
| Oil Tank(L) | Plastic or Steel: 2 4 7 8 11 13. etc … | |
| Max. Pressure | 210bar | |
| Flow Rate | 2LPM to 8LPM | |
| Oil Port | G3/8” | |
| Remote | 2 buttons remote with 4 meters cable | |
| Motor Cover |
Plastic, Keep water and dust away |
Description:
This Hydraulic Power Unit is to operate double acting cylinders, complete with 2 buttons remote and cable.
DC 12V Hydraulic power unit.
1. 6kw 12VDC electric motor
0,75cc/r to 7cc/rgear pump.
plastic motor cover.
2L to 13L(etc)Round steel tank with drain plug.
Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting or Vertical.
Max pressure: 210 bar.
Relief valve: RV2-08. set pressure 180 bar, but adjustable from 50-200 bar as standard for each power pack..
Flow Rate: 2Lto 8L/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
2 Button remote with 4 metres cable.
Power Packs suitable for all kinds of double acting applications. Hydraulic cylinders or Hydraulic motors
Applications:
Pallet-Stackers, Fork-lifts, Tippers, tail-lifts, Scissor-lifts.
Outlook and Drawing

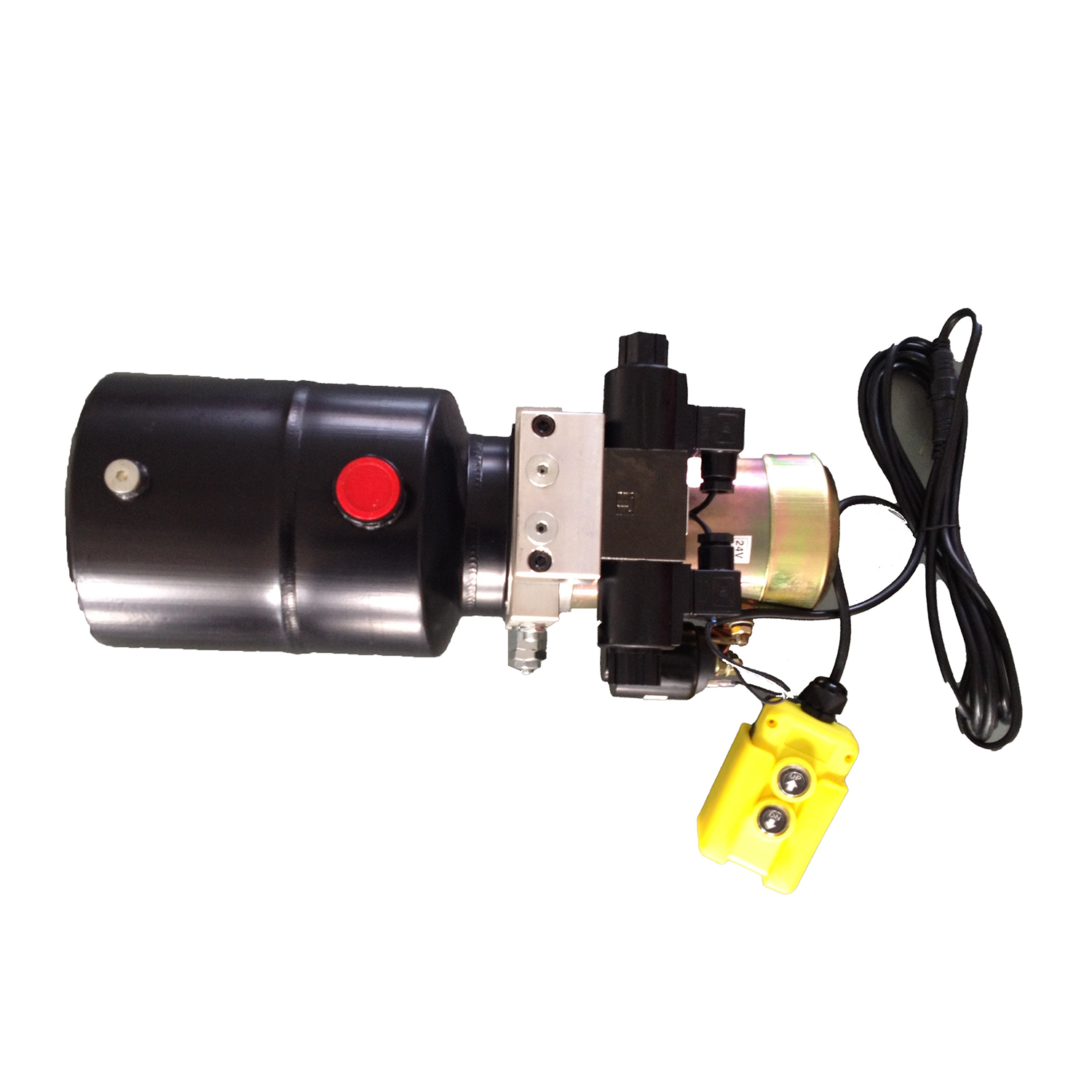

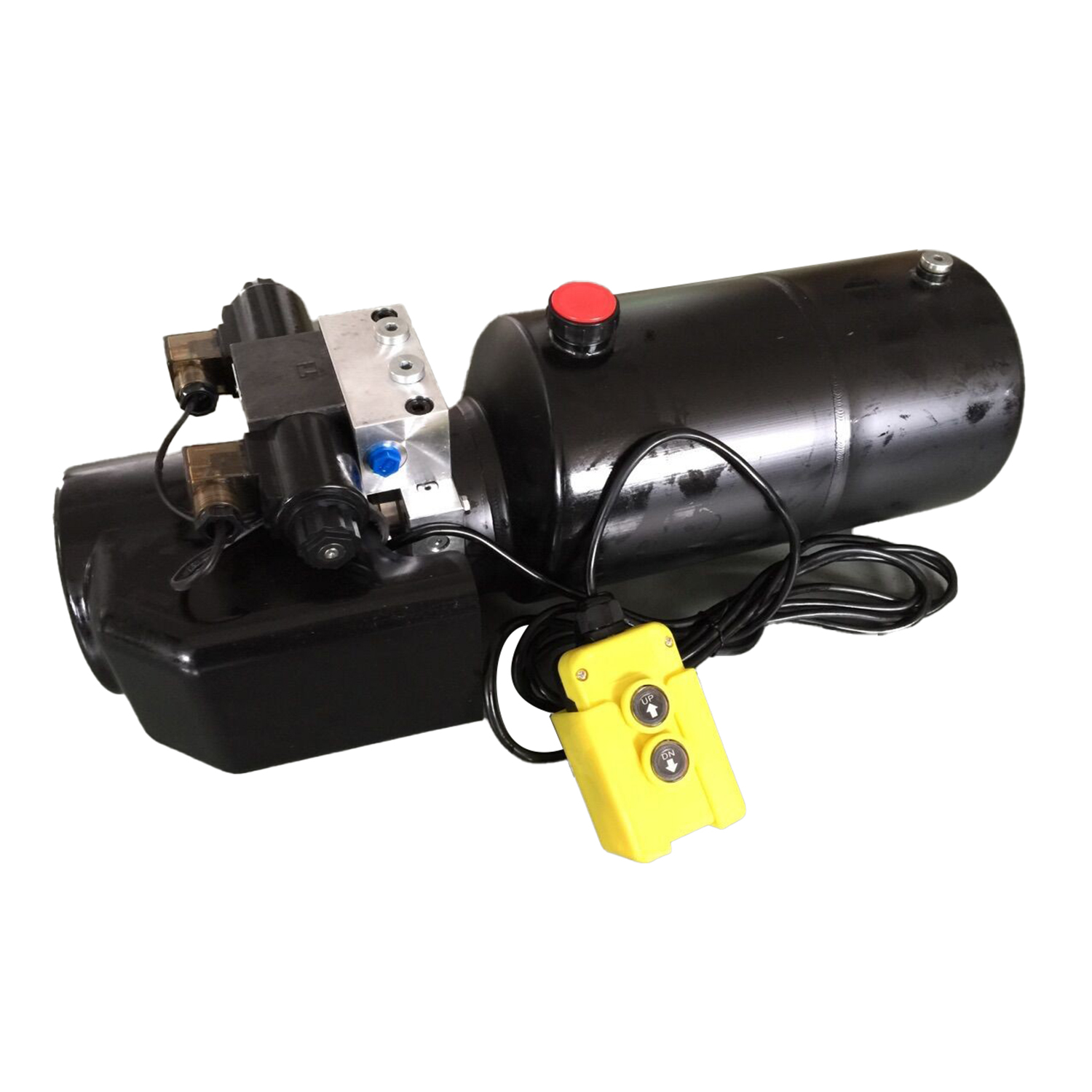

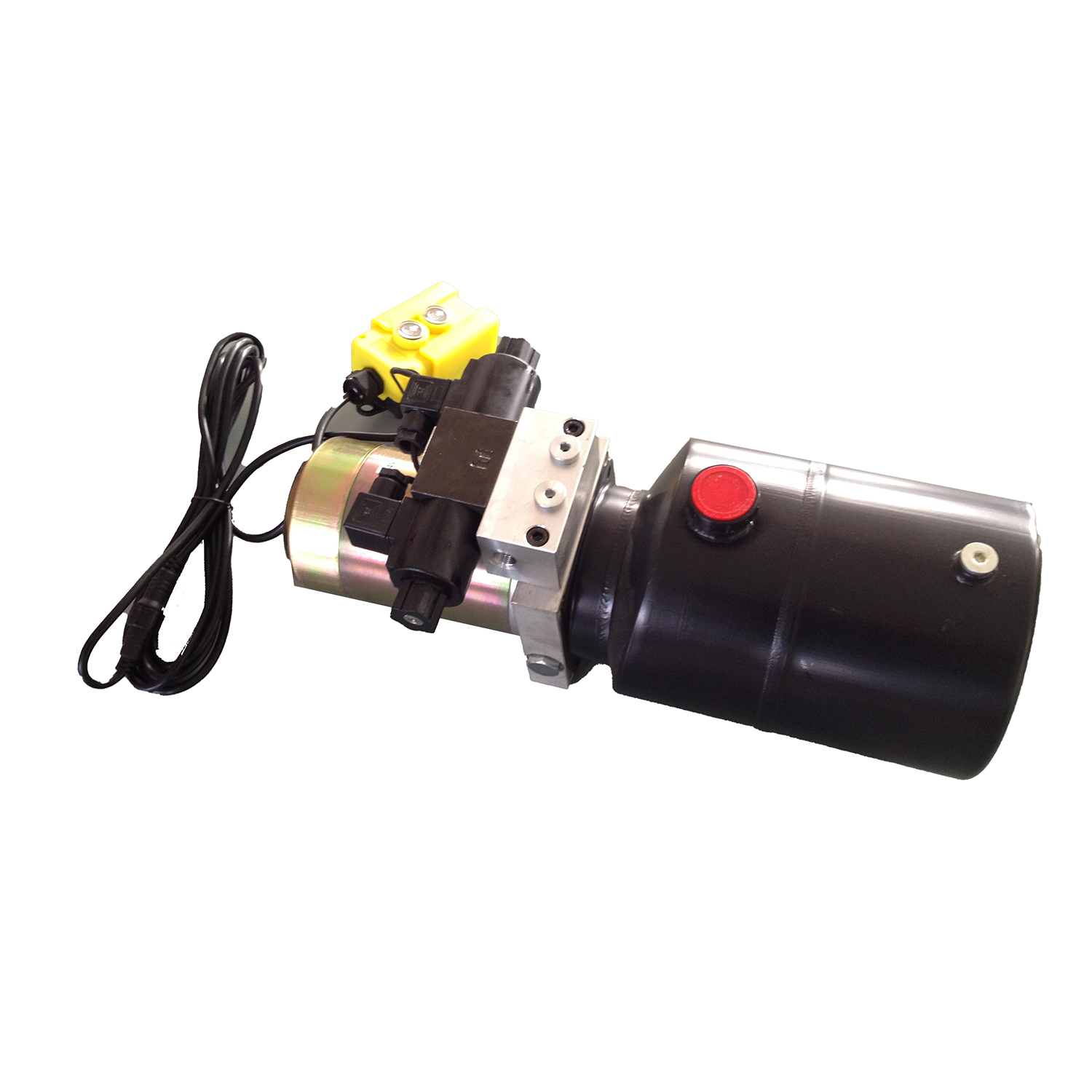

The Photo
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
