Ningbo Zhenhai Tiandi Hydraulic CO.,LTD
Quality Drives Development ,Faith Explores Future
| Place of Origin: | China |
|---|---|
| Brand Name: | Tiandi |
| Certification: | CE |
| Model Number: | TDDL |
| Minimum Order Quantity: | 50pcs |
| Price: | USD130-190/Set |
| Packaging Details: | Packed in carton boxes , and then wooden pallets. |
| Delivery Time: | 25 Working Days After Deposit Received |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 5000 Sets/Month |
| Motor: | DC 24V 1600W 2500RPM | Oil Pump: | 2.1cc/r |
|---|---|---|---|
| Oil Port: | G3/8” | Tank Size: | 8L Plastic Tank |
| System Pressure: | 16Mpa | Mounting Type: | Horizontal |
| High Light: | Double Acting hyd power unit,16Mpa hyd power unit,Double Acting Hyd Power pack |
||

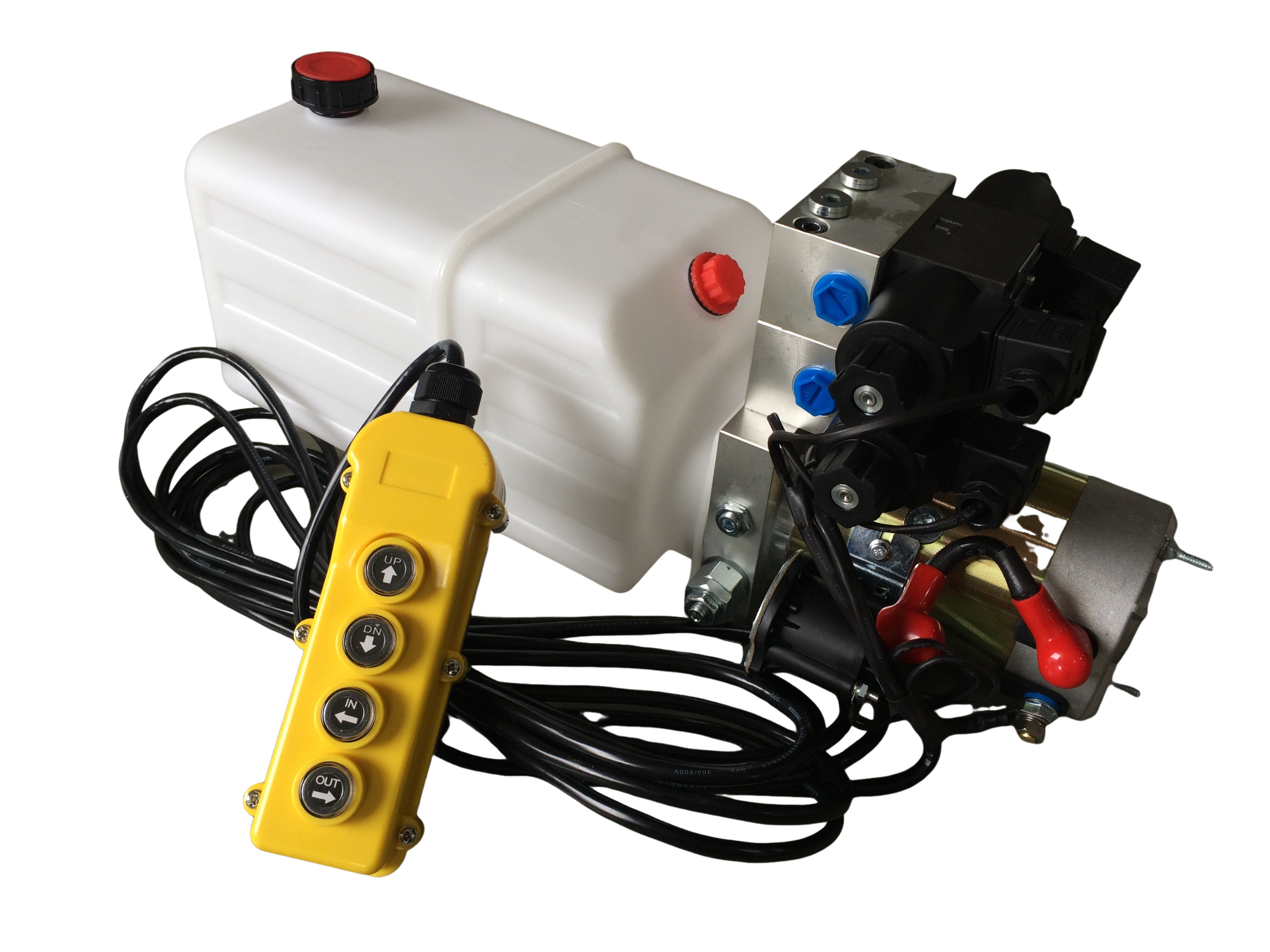

DC 24V Double Acting Power Unit With Two Stations
This Hydraulic Power Unit is to operate double acting cylinders, complete with 2 solenoid directional Valves.
DC Hydraulic Power Unit.
DC24V 2Kw electric motor
2.1cc/r gear pump.
8 Litre squareplastic tank with drain plug.
Hydraulic Power pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting.
Max pressure: 200 bar.
Relief valve: RV2-08. set pressure 200 bar, but adjustable from 50-210 bar as standard for each power pack..
Flow Rate: 5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
Hydraulic Power Units suitable for all kinds of double acting Hydraulic cylinders .
Basic Information
|
Brand Name: |
TIANDI |
|
Model Number: |
TDDL |
|
Certification |
CE |
|
Place of Origin: |
China |
Specification:
|
Motor |
DC 24V 1600W 2500RPM |
Oil Pump |
2.1cc/r |
|
Oil Port |
G3/8” |
Tank Size |
4.5L |
|
System Pressure |
16Mpa |
Mounting Type |
Horizontal |
Commercial Terms:
|
Minimum Order Quantity: |
50pcs |
|
Price: |
USD130-190/set |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500sets per month |
|
Delivery Time: |
25 working days after deposit confirmed |
|
Packaging Details: |
Packed in carton boxes ,and then wooden pallets. |

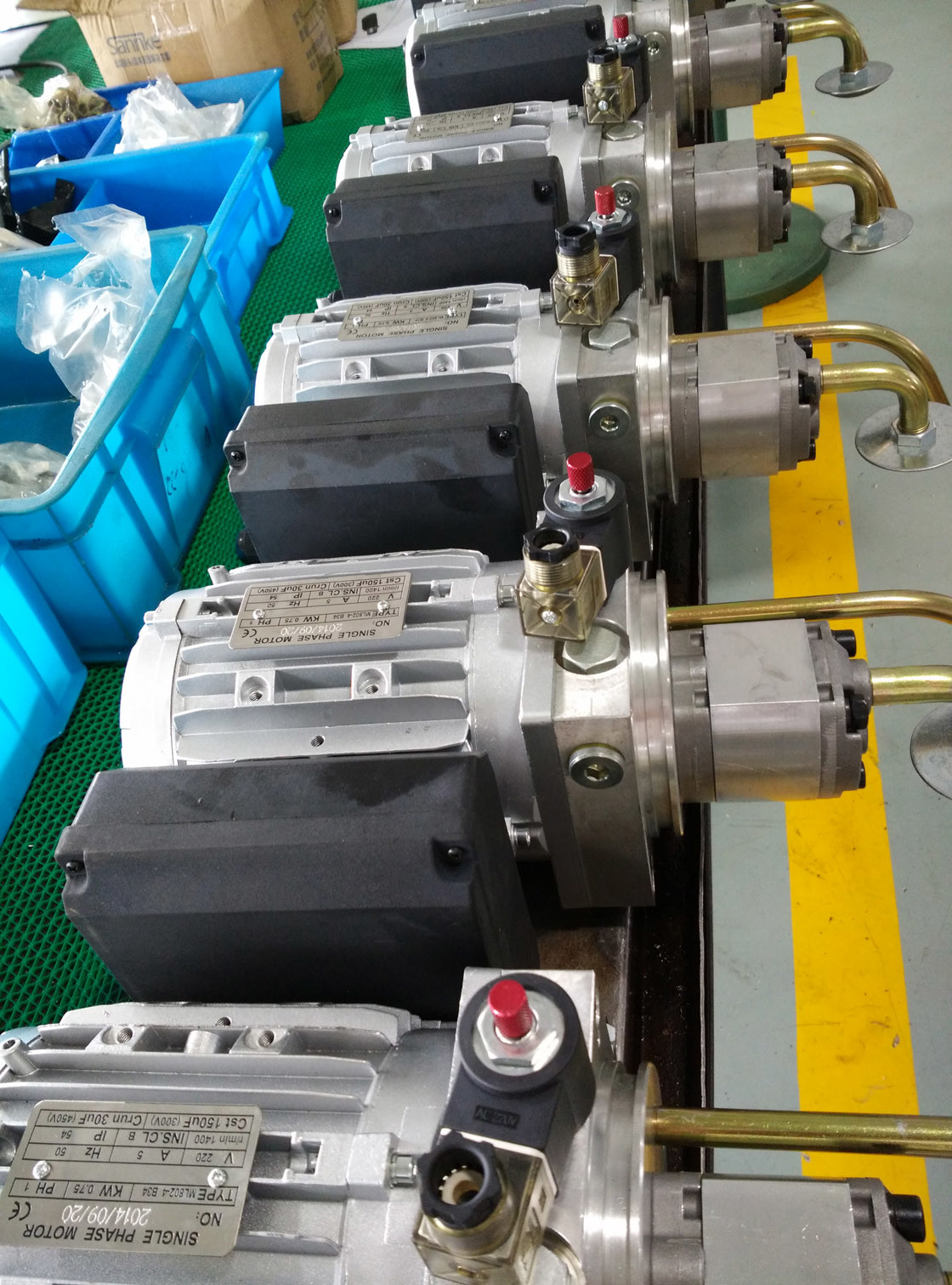

Assemble Hydraulic Power Unit Production Line
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
