Ningbo Zhenhai Tiandi Hydraulic CO.,LTD
Quality Drives Development ,Faith Explores Future
| Place of Origin: | China |
|---|---|
| Brand Name: | Tiandi |
| Certification: | CE |
| Model Number: | TD-DL Series |
| Minimum Order Quantity: | 50sets |
| Price: | USD 165-205 per sets |
| Packaging Details: | One power pack in a boxes and then wooden pallets |
| Delivery Time: | 30 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3000 sets per month |
| Plastic Cover For Motor: | YES. MC-02 | Tank: | 4L To 18L, Steel Or Plastic, Horizontal Or Vertical |
|---|---|---|---|
| Ports: | G1/4” ,G3/8”,SAE6#,M14x1.5 | Motor: | 12V, 1600W, 2800 RPM, S3 Duty. |
| Gear Pump: | 1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r | Relief Valve Pressure: | 180Bar |
| Remote And Cable: | 2 Buttons, 3 Wires, 4meters With Quick Connector | Solenoid Valve: | 12VDC 18W Coil |
| Packing: | One Power Pack In A Boxes And Then Pallets | Weight: | About 15-18kgs/pc With Each Power Pack |
| High Light: | Double Acting Hydraulic Power Pack,Tipper Trailer Hydraulic Power Pack,180 Bar Mini Hydraulic Power Unit |
||

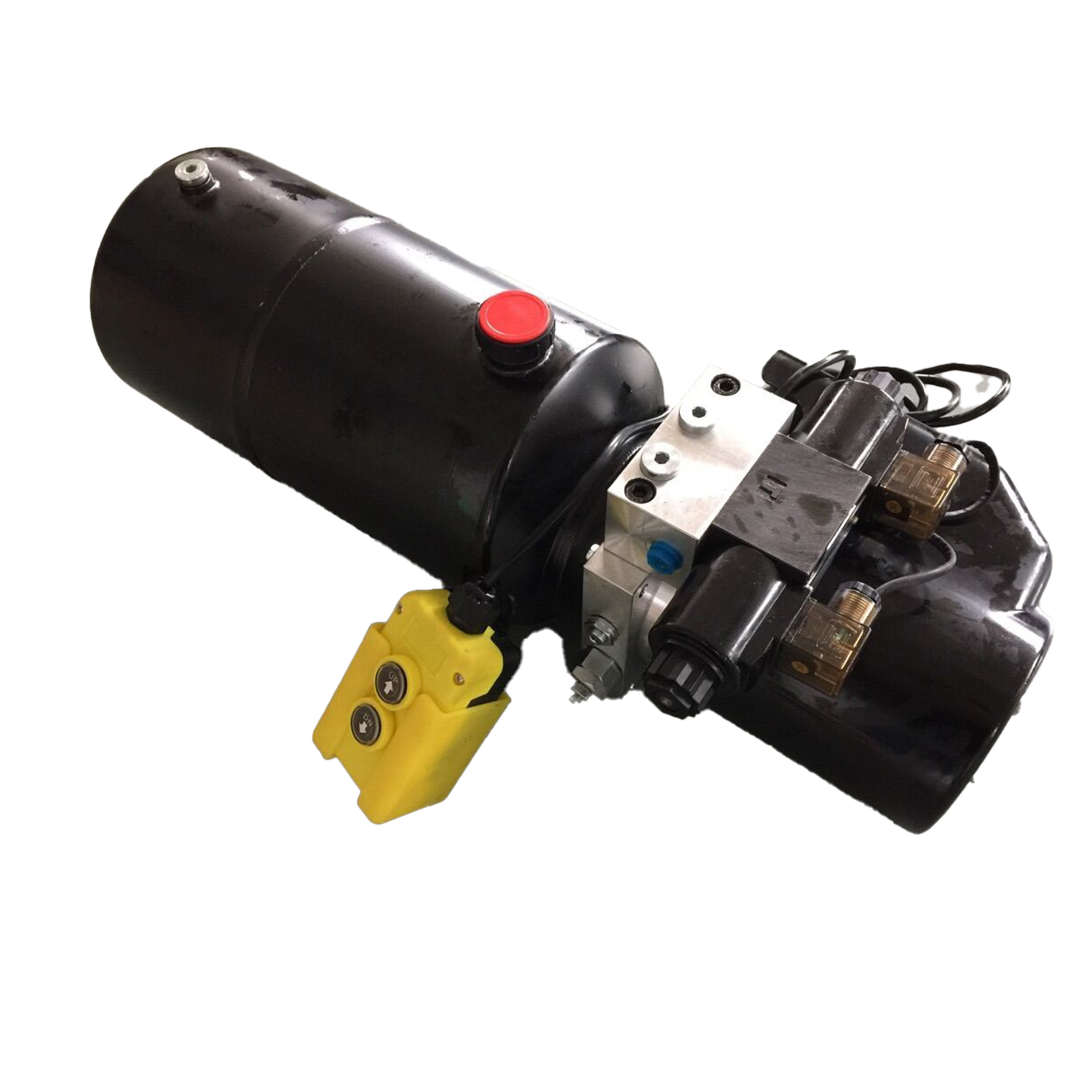

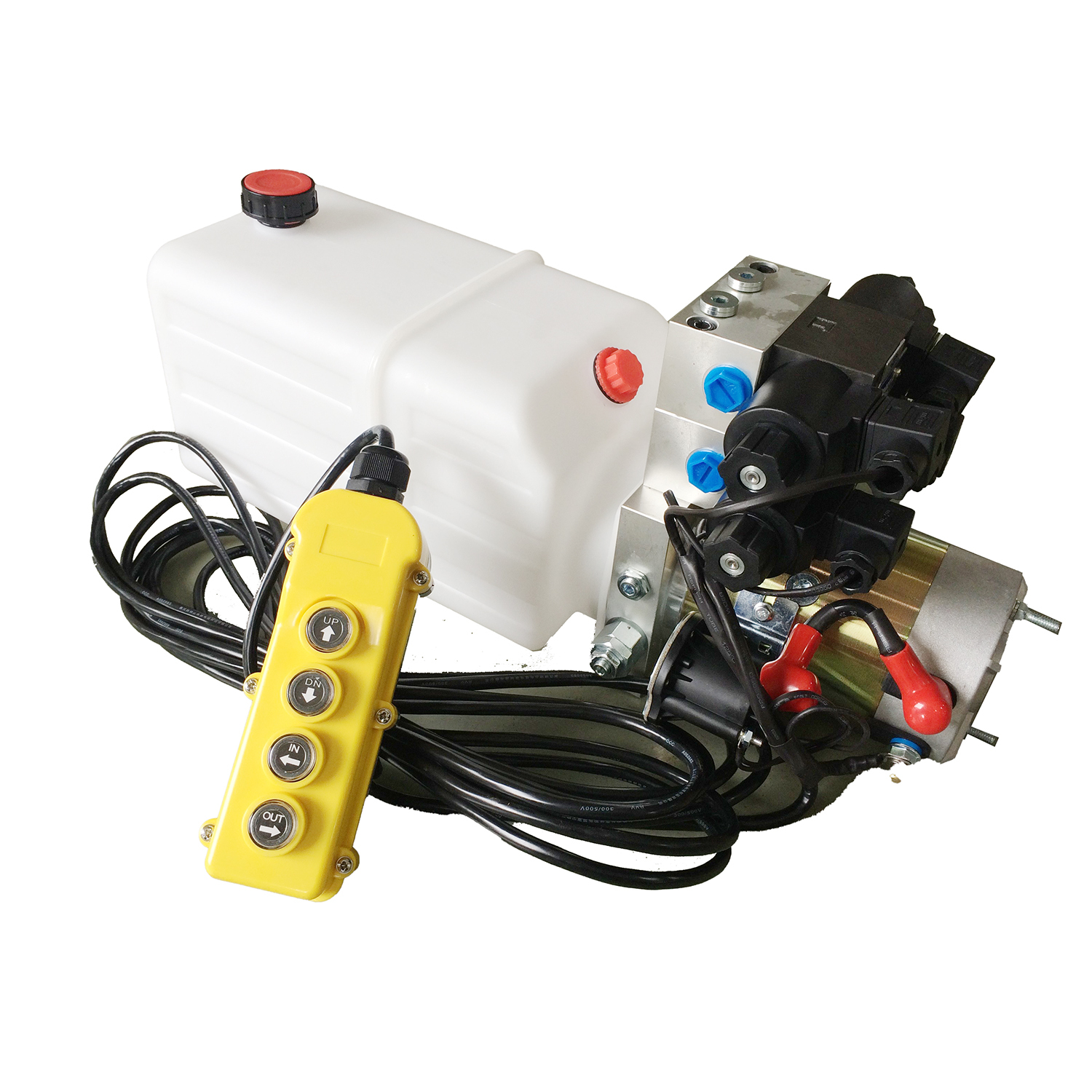

1. Components: This power pack is power up - Power down .It components by a high pressure gear pump, a DC motor, a aluminum center manifold, check valve, relief valve, solenoid release valve and a hydraulic oil tank.
2. How to Work: Push “up” button to start the DC motor to lift the Trailer, and push “DN” button the solenoid valve and DC motor actives the cylinder to release Trailer down.
3. Applications: It is widely used in tipper trailer, fork lift , scissor lift and other single acting lift applications.
Specifications
|
Plastic Cover for Motor |
YES. MC-02 |
|
Tank |
4L to 18L, Steel or Plastic, horizontal or vertical. |
|
Ports |
G3/8”, G1/4” ,SAE6#, |
|
Motor |
12V, 1600W, 2800 RPM, S3 Duty. |
|
Gear Pump |
1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r |
|
Relief Valve Pressure |
180Bar |
|
Remote and Cable |
2 Buttons, 3 lines, 4meters. |
|
Solenoid Valve |
12VDC 18W coil |
|
Packing |
One power pack in a boxes and then pallets |
|
Weight |
About 15-18kgs/pc with each Power Pack |
Price: From USD125.00 to USD185.00/suit (including motor, pump, tank, manifold, valves. remote and cable, Plastic Cover for DC motor, different parts different price)
Drawings:
Hydraulic Power Pack Schematics
Double Acting Hydralic Power Pack Packing information:
About 15-18kgs/pc with each Power Pack. (different specs,tanks,different weight,different box size)
