Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure

Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure
Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure
Basic Information
Place of Origin: Ningbo China
Brand Name: TianDi
Certification: CE,ISO
Model Number: TD-DL Series
Minimum Order Quantity: 20PCS
Price: Negotiation
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 15 work days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000pcs per month
Get Best Price Contact Now
Plastic Cover For Motor: YES. MC-02 Tank: 4L To 18L, Steel Or Plastic, Horizontal Or Vertical
Ports: G1/4” ,G3/8”,SAE6#,M14x1.5 Motor: 12V, 1600W, 2800 RPM, S3 Duty.
Gear Pump: 1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r Relief Valve Pressure: 180Bar
Remote And Cable: 2 Buttons, 3 Wires, 4meters With Quick Connector Solenoid Valve: 12VDC 18W Coil
Packing: One Power Pack In A Boxes And Then Pallets Weight: About 15-18kgs/pc With Each Power Pack
Highlight:

12v Hydraulic Power Unit Double Acting

,

180 Bar Hydraulic Power Unit

,

Scissor Lift Double Acting Hydraulic

Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure

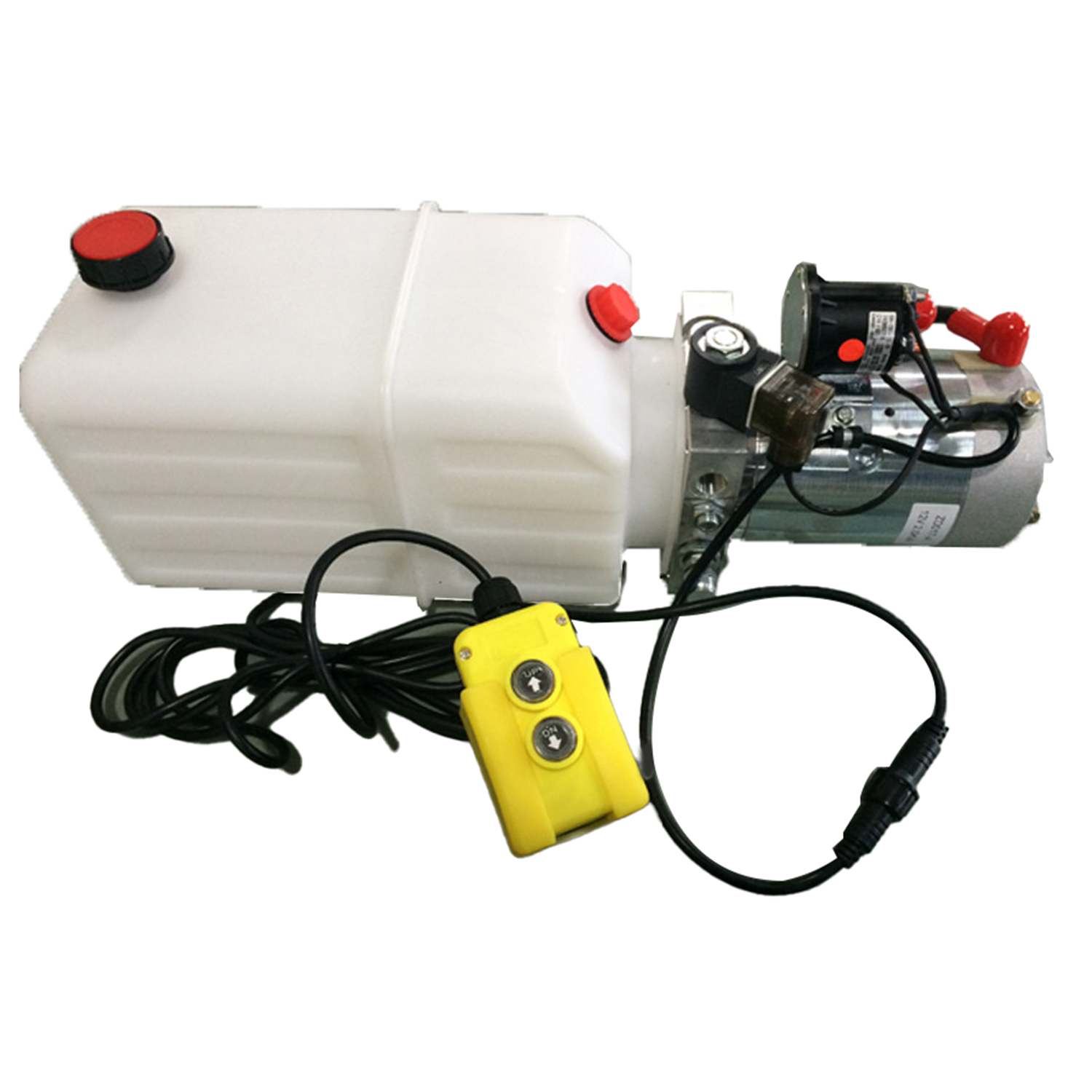

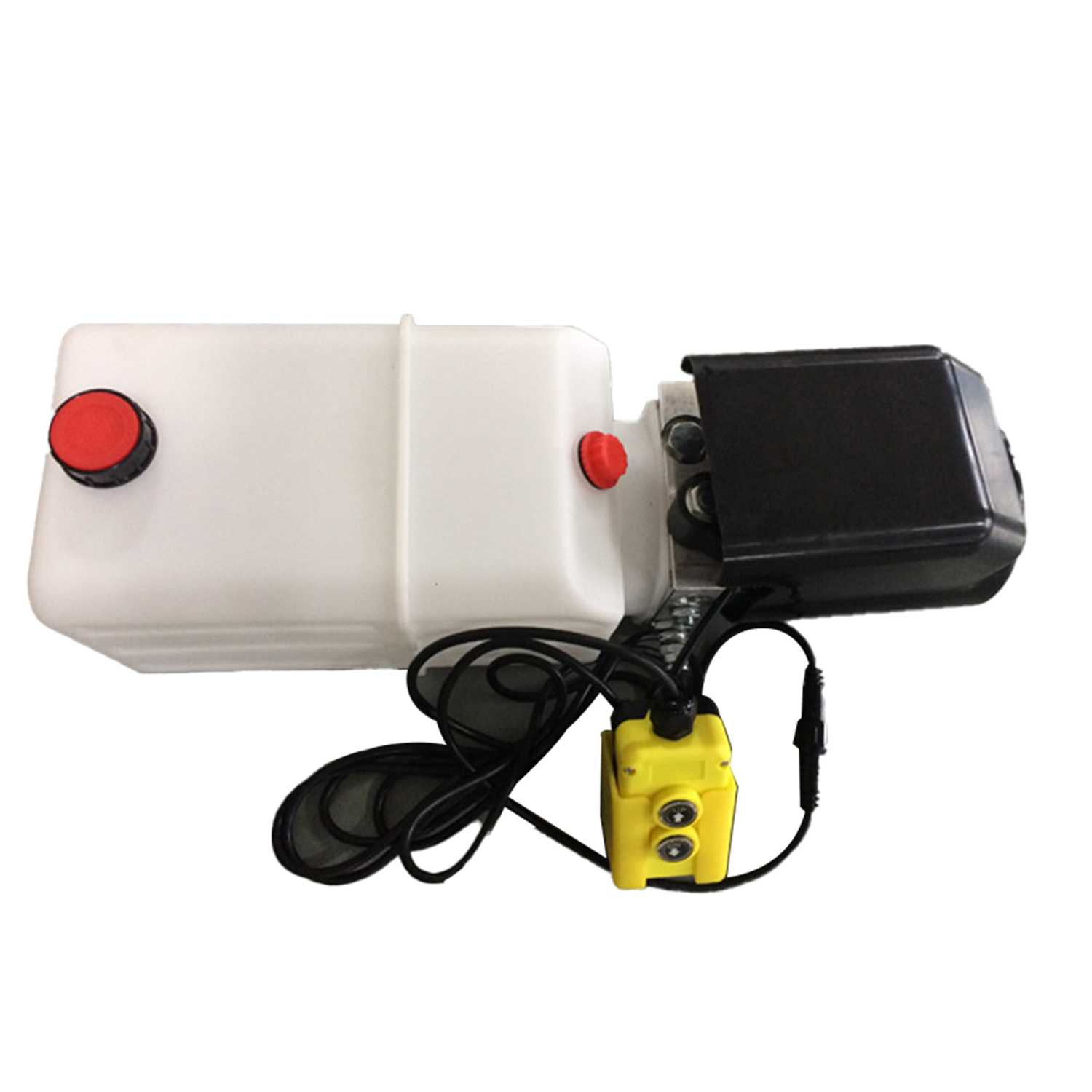

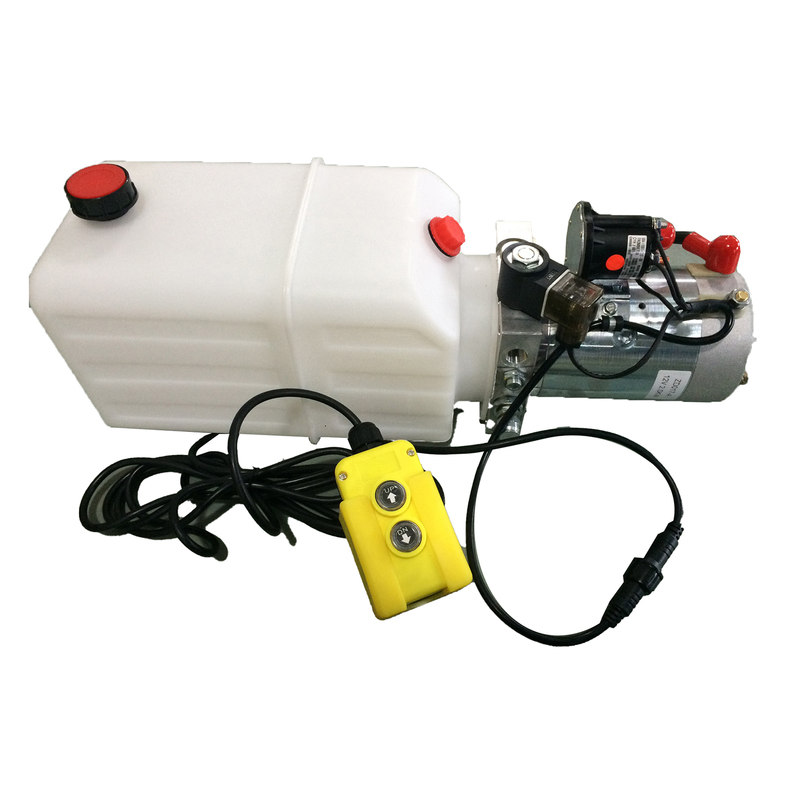

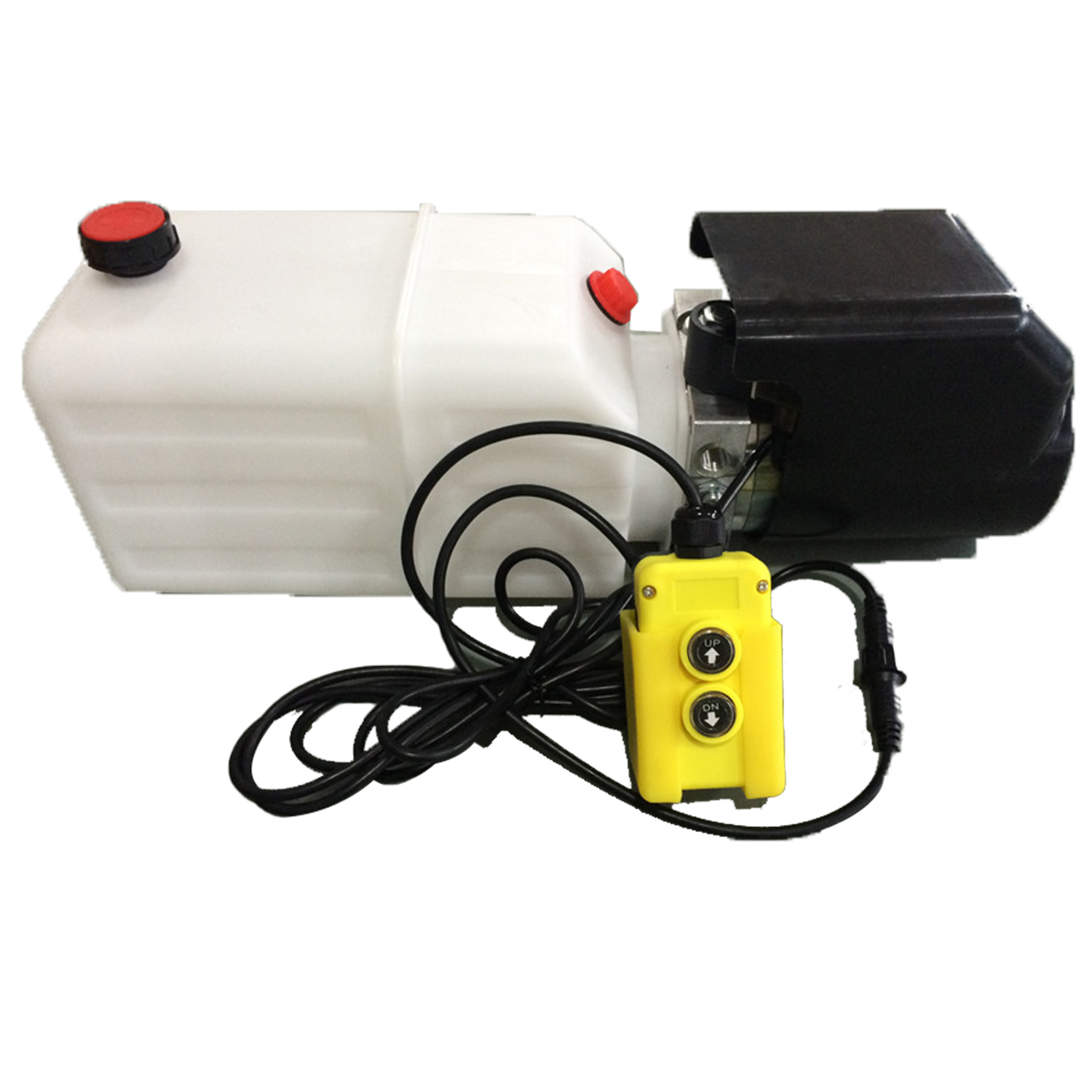

High Pressure Double Acting Hydraulic Power Pack For Tipper Trailer
This power pack features power-up and power-down functionality, designed for efficient hydraulic operations in demanding industrial applications.
Key Components
  • High pressure gear pump
  • DC motor
  • Aluminum center manifold
  • Check valve
  • Relief valve
  • Solenoid release valve
  • Hydraulic oil tank
Operation
Push "UP" button to activate the DC motor and lift the trailer. Push "DN" button to engage the solenoid valve and DC motor for controlled lowering.
Applications
Ideal for tipper trailers, forklifts, scissor lifts, and other single acting lift applications.
Technical Specifications
Feature Specification
Plastic Cover for Motor YES. MC-02
Tank 4L to 18L, Steel or Plastic, horizontal or vertical
Ports G3/8", G1/4", SAE6#
Motor 12V, 1600W, 2800 RPM, S3 Duty
Gear Pump 1.6cc/r, 2.1cc/r, 2.5cc/r, 3.2cc/r
Relief Valve Pressure 180Bar
Remote and Cable 2 Buttons, 3 lines, 4meters
Solenoid Valve 12VDC 18W coil
Packing One power pack in boxes, then pallets
Weight About 15-18kgs/pc (varies by configuration)
Price: From USD125.00 to USD185.00 per unit (varies by configuration)
Product Drawings
Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure 0
Hydraulic Power Pack Schematics
Scissor Lift 12v Hydraulic Power Unit Double Acting 180 Bar Pressure 1
Packing Information
Approximately 15-18kg per power pack (weight varies by specifications, tank type, and configuration). Box size varies accordingly.
