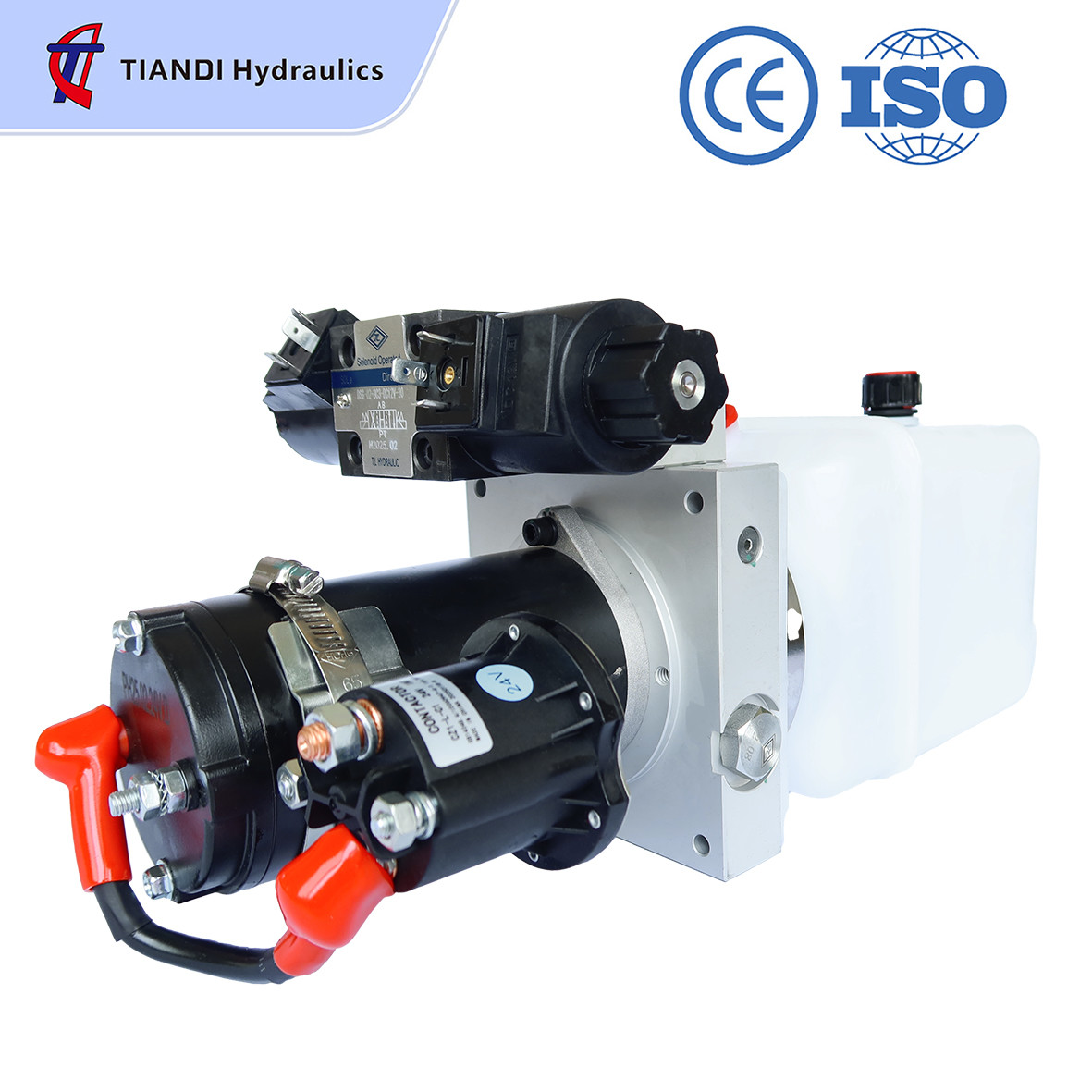

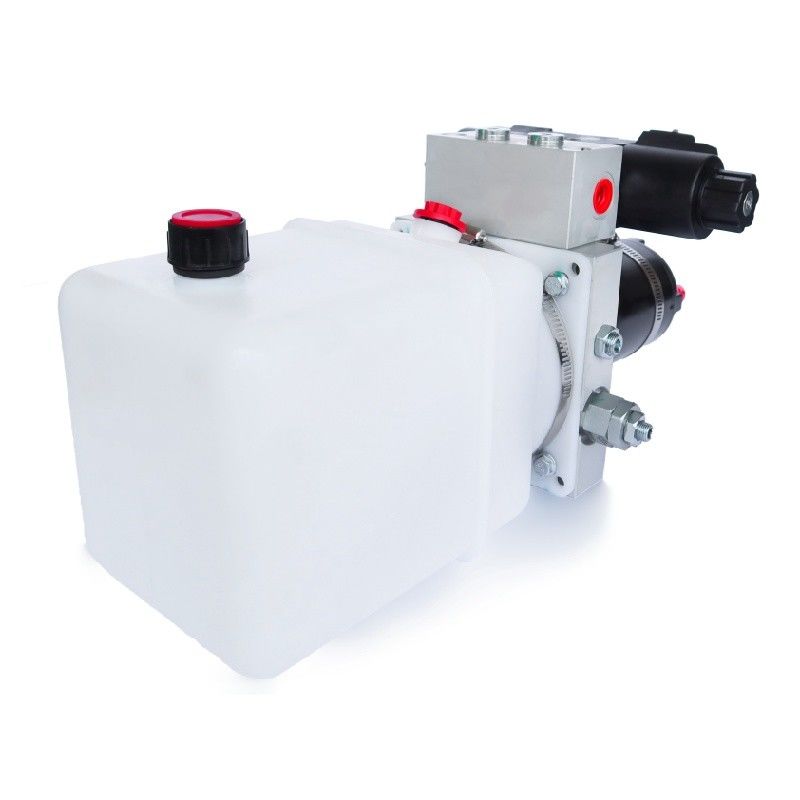

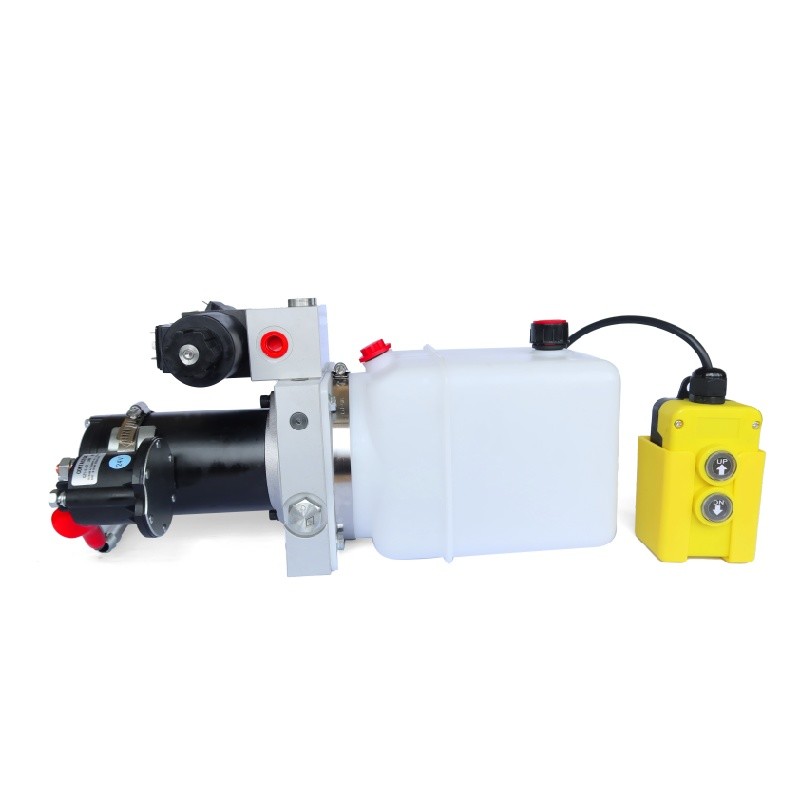

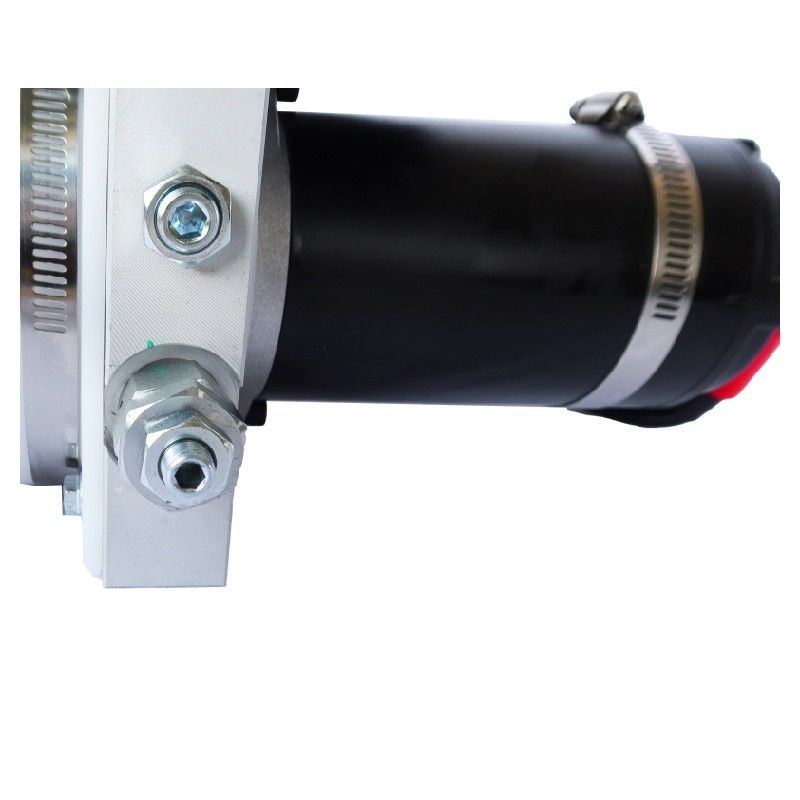

24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve

24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve
24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve
24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve 24V 0.5Kw Hydraulic Power Unit with 2L Tank and Solenoid Valve
Basic Information
Place of Origin: Ningbo China
Brand Name: TianDi
Certification: CE,ISO
Model Number: 24V DC 0.5KW
Minimum Order Quantity: 20PCS
Price: Negotiation
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 15 work days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000pcs per month
Get Best Price Contact Now
Tank Volume: 2L Motor Power: 0.5Kw
Port Size: G3/8 Valve Type: Solenoid
Relief Valve Pressure: 100Bar Remote Cable: 2 Button
Gear Pump: 1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r Control Mode: Manual/Automatic
Protection Level: IP54 Pump Type: Gear Pump
Temperature Range: 0-50°C Pressure Range: 0-250bar
Tank: Plastic 2L Noise Level: 60dB
Maximum Pressure: 2500 Psi
Highlight:

DC24V Hydraulic Power Unit Assembly

,

0.5Kw Hydraulic Power Unit Assembly

,

Forklift small hydraulic power unit

Pallet Truck Hydraulic Power Unit Assembly DC 24V 0.5Kw Electric Forklift Small Hydraulic Pump Station
Product Specifications
Attribute Value
Tank Volume 2L
Motor Power 0.5Kw
Port Size G3/8
Valve Type Solenoid
Relief Valve Pressure 100Bar
Remote Cable 2 Button
Gear Pump 1.6cc/r 2.1cc/r 2.5cc/r 3.2cc/r
Control Mode Manual/Automatic
Protection Level IP54
Pump Type Gear Pump
Temperature Range 0-50°C
Pressure Range 0-250bar
Tank Plastic 2L
Noise Level 60dB
Maximum Pressure 2500 psi
DC Power Unit Code Rules
TDDL | - | 00-00 | - | A00 | - | 00 | - | 00 L | |
Tiandi Code | | Schematic Code | | Motor Code | | Gear Pump Code | | Tank Litres | | Remarks
Remarks & Notes:
1. Solenoid Valve Voltage
2. Oil Port Size
3. Tank Shape & Material
4. Installation: Horizontal
5. Wire Switch
6. System Pressure
Example: TDDL-50-08-H02-B10-5L Dock Leveler Power Unit
1. Oil Port: G3/8
2. Tank: Iron Round
3. Installation: Horizontal
4. System Pressure: 15MPa
Schematic Code Documentation
10 Series 20 Series 30 Series 40 Series 50 Series
Gear Pump Specifications
Motor Code Displacement Motor Code Specification Motor Code Specification Specification
B01 0.26cc/r B08 1.6cc/r B15 4.2cc/r 000
B02 0.38cc/r B09 1.8cc/r B16 4.8cc/r
B03 0.45cc/r B10 2.1cc/r B17 5.8cc/r
B04 0.75cc/r B11 2.6cc/r B18 6.8cc/r
B05 1.0cc/r B12 2.7cc/r B19 7.8cc/r
B06 1.1cc/r B13 3.2cc/r
B07 1.3cc/r B14 3.7cc/r
Motor Specifications
DC 12V DC 24V Specification
Code Specification Code Specification 000
A01 12V 0.5KW B01 24V 0.5KW
A02 12V 0.8KW B02 24V 0.8KW
A03 12V 1.6KW B03 24V 1.6KW
A04 12V 2.0KW B04 24V 2.0KW
A05 12V 2.2KW B05 24V 2.2KW
A06 12V 2.5KW B06 24V 2.5KW
A07 12V 3.0KW B07 24V 3.0KW
