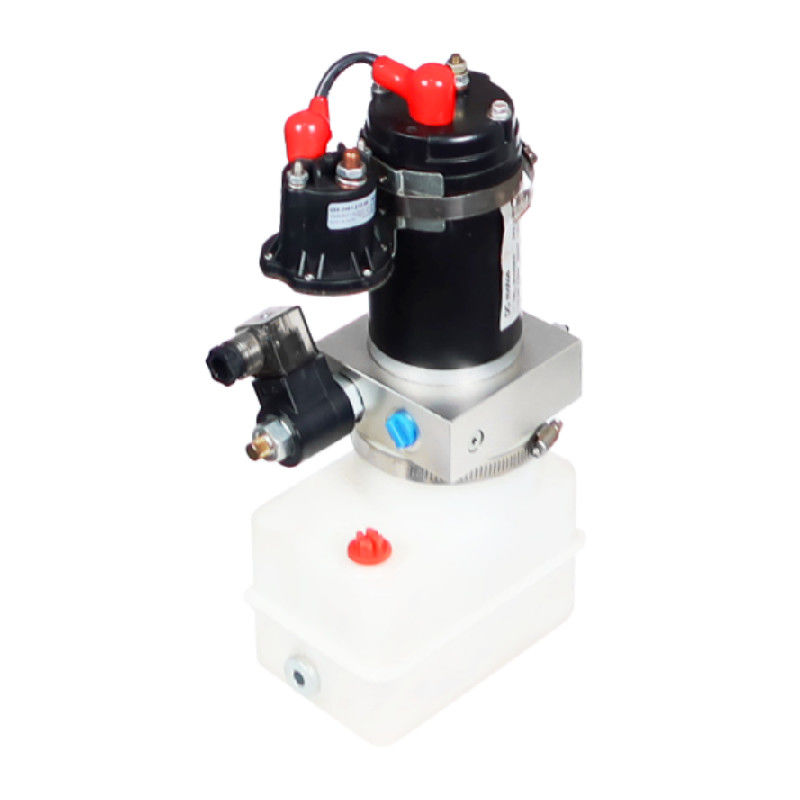

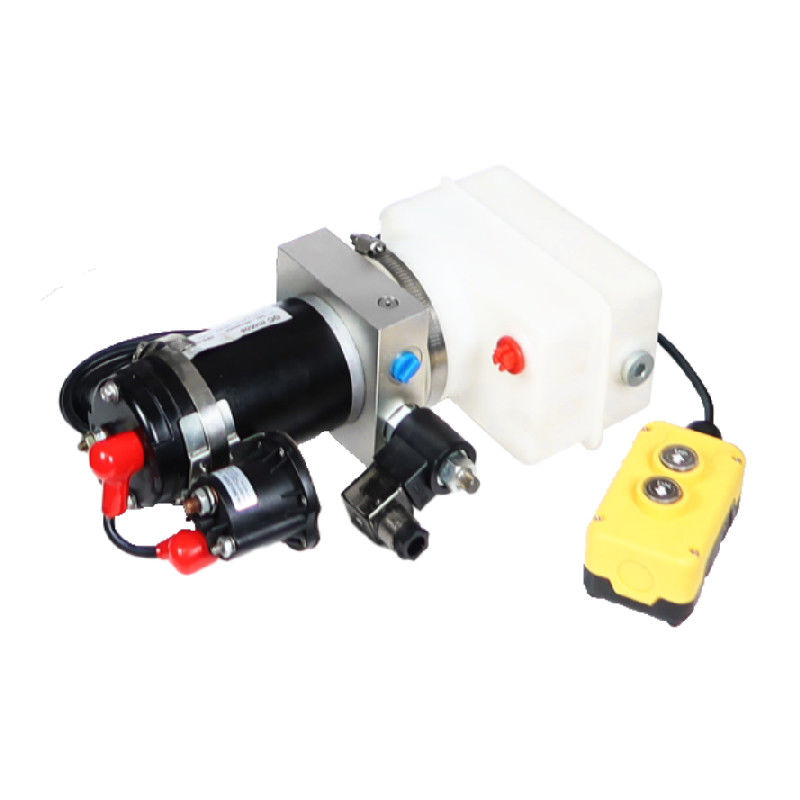

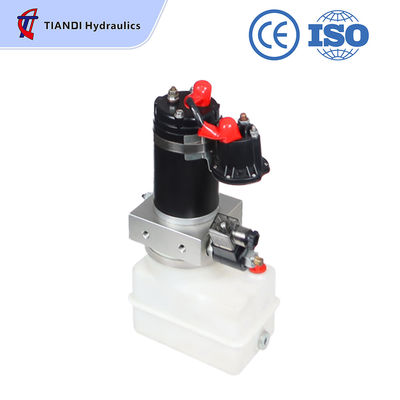

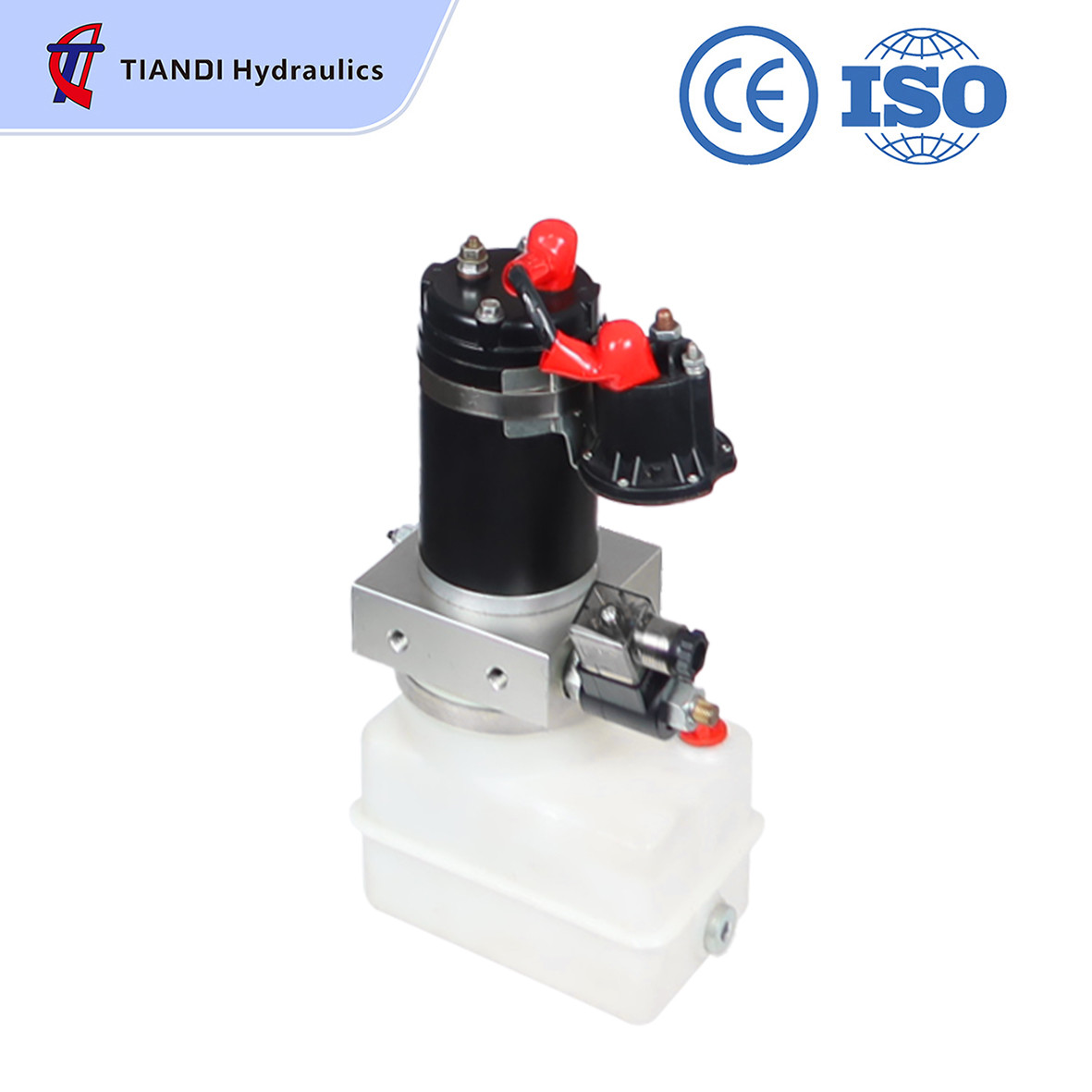

DC 24V 0.8Kw Hydraulic Power Unit hydraulic power supply system hydraulic pressure unit For Pallet truck

Basic Information

Place of Origin:	Ningbo China
Brand Name:	TianDi
Certification:	CE,ISO
Model Number:	TDDL25040702

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	Packed in carton boxes ,and then wooden pallets
Delivery Time:	15 work days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	2000pcs per month

Get Best Price Contact Now

Working Pressure:	16Mpa	Specification:	Carton Size 50cm25cm30cm
PUMP:	0.75cc/r	Oil Port:	M14*1.5
Valve Voltage:	DC 24V	Power :	0.8Kw
Tank Size:	4L To 12L	Applicability:	Crane ,Hydraulic Lift, Car Lifter,Lifting Platform
Model:	TDDL25040702-1

12v dc hydraulic power unit small industrial portable electric hydraulic power unit For Flying wing car

Basic Specification

DC 24V Hydraulic power unit.
0.8kw 24V DC electric motor
0.75cc/rgear pump.
1L(etc)Round plastics tank with drain plug.
Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting or Vertical.
Max pressure: 160 bar.
Remote control: 4 meters, 2 buttons
Flow Rate: 2Lto 10L/min.
Relief valve and check valve for all standard power unit
Oil Port size :M14*1.5

Commercial Terms

Minimum Order Quantity:	50pcs
Price:	USD 90/set
Payment Terms:	T/T
Supply Ability	2800 pcs per month
Delivery Time:	25 working days after advance payment received
Packaging Details:	Packed in carton boxes ,and then wooden pallets
