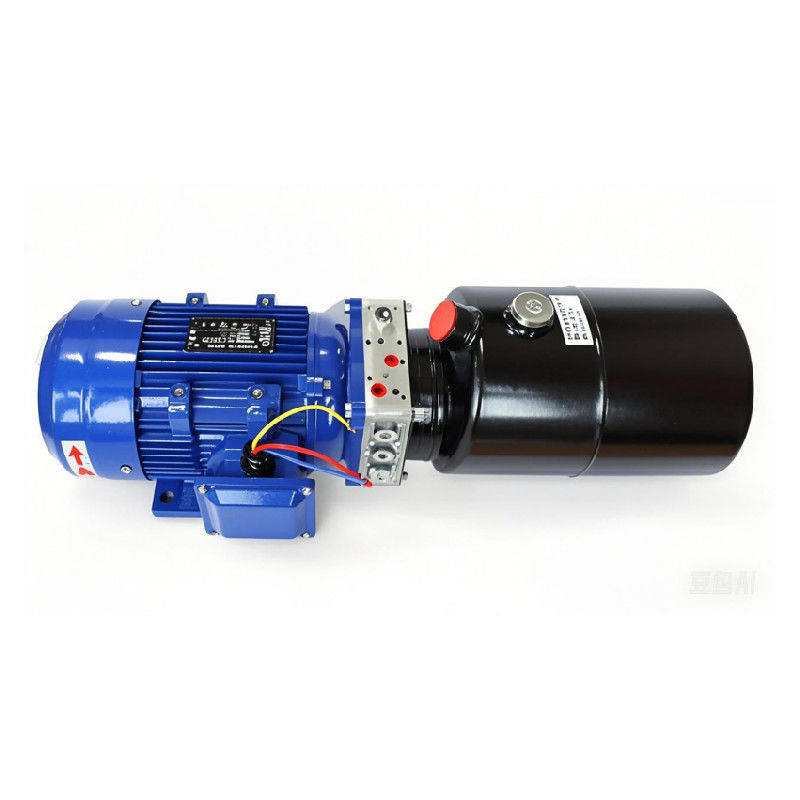

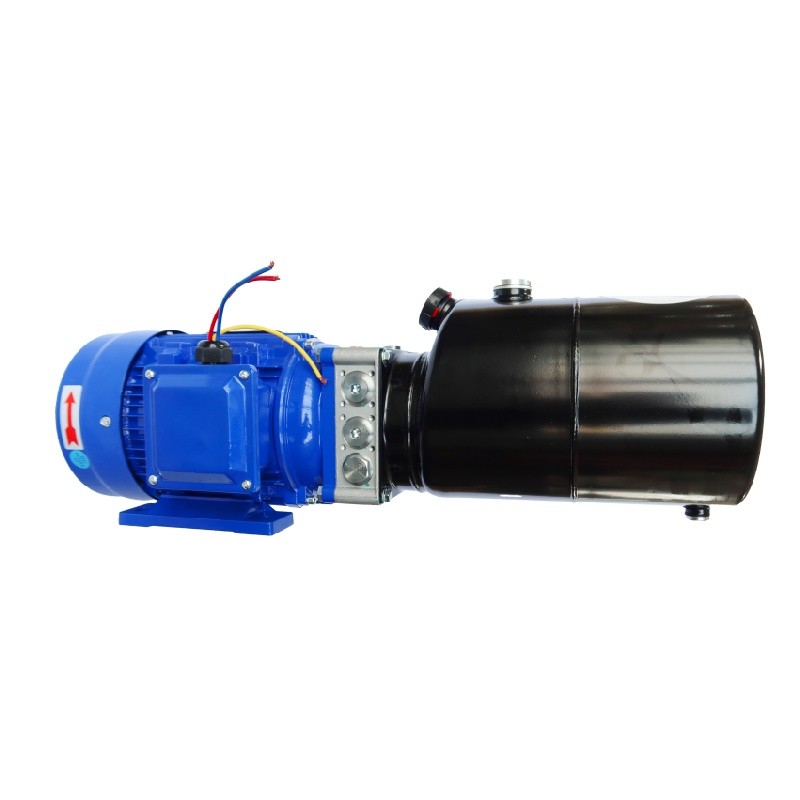

AC 380V 2.2Kw mini hydraulic power pack car lift hydraulic power unit hydraulic power station

Work Presurre 18MPa Hydraulic Power Pack For Forks-Lift

Basic Specification

• AC 380V Hydraulic power unit.

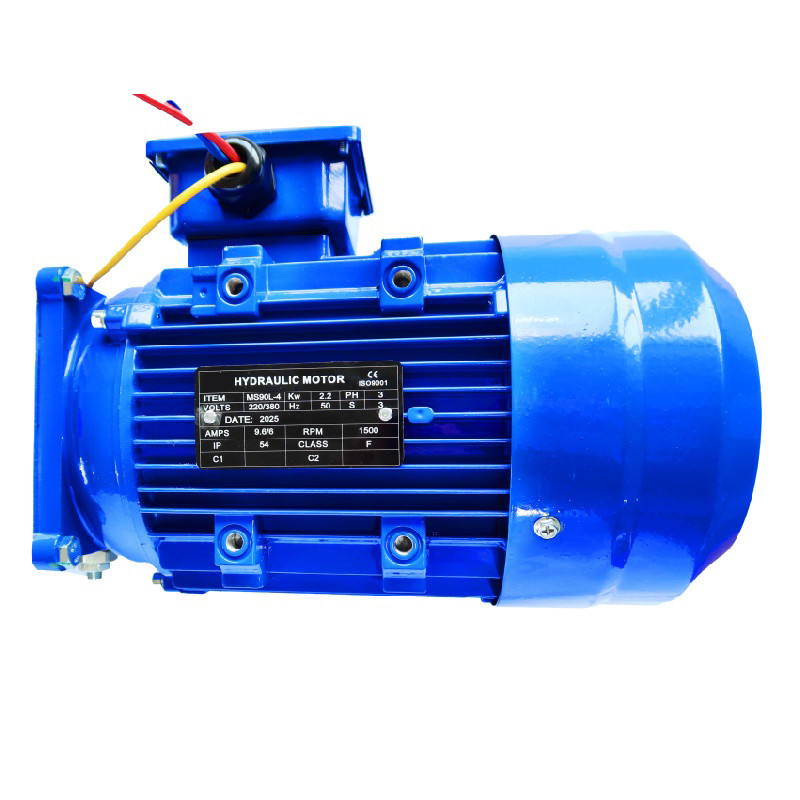

• 2.2kw 380V AC electric motor
• 8cc/rgear pump.
• metal motor cover.

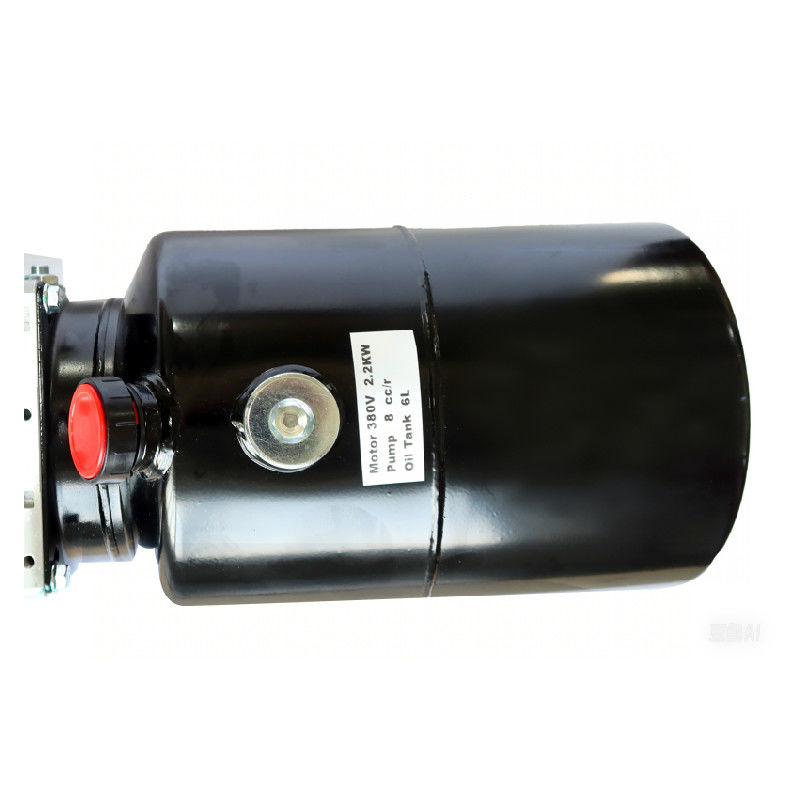

• 6L(etc)Round steel tank with drain plug.
• Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
• Mounting: Horizontal Mounting or Vertical.
• Max pressure: 210 bar.
• Relief valve: RV2-08.
• Flow Rate: 2Lto 8L/min.
• Relief valve and check valve for all standard power unit
• Oil Port size :1/4"BSP

Commercial Terms

Drawing

Hydraulic Power Unit Product Description:

Introducing our high-performance AC 380V Hydraulic Power Unit, engineered for efficiency and reliability in demanding industrial applications. This compact yet robust system features a 2.2kW 380V AC electric motor paired with an 8cc/rev gear pump, delivering a variable flow rate of 2–8 L/min and achieving a maximum operating pressure of 210 bar.

Key Components & Features:
- Durable Construction: Metal motor cover ensures enhanced protection and longevity in harsh environments.
- 6L Round Steel Oil Tank: Equipped with a convenient drain plug for easy maintenance and fluid replacement.
- Integrated Hydraulic Power Pack: Includes a suction filter, return oil pipe, and air breather to ensure clean oil circulation and system stability.
- Versatile Mounting Options: Supports both horizontal and vertical installation for flexible integration into your setup.
- Precision Control: RV2-08 relief valve and standard check valve ensure safe pressure regulation and unidirectional flow.
- Universal Compatibility: 1/4" BSP oil port size for seamless connection to hydraulic tools and machinery.

Ideal for automation, manufacturing, and machinery systems, this power unit combines rugged design with user-friendly maintenance, making it a cost-effective solution for consistent hydraulic power delivery.
