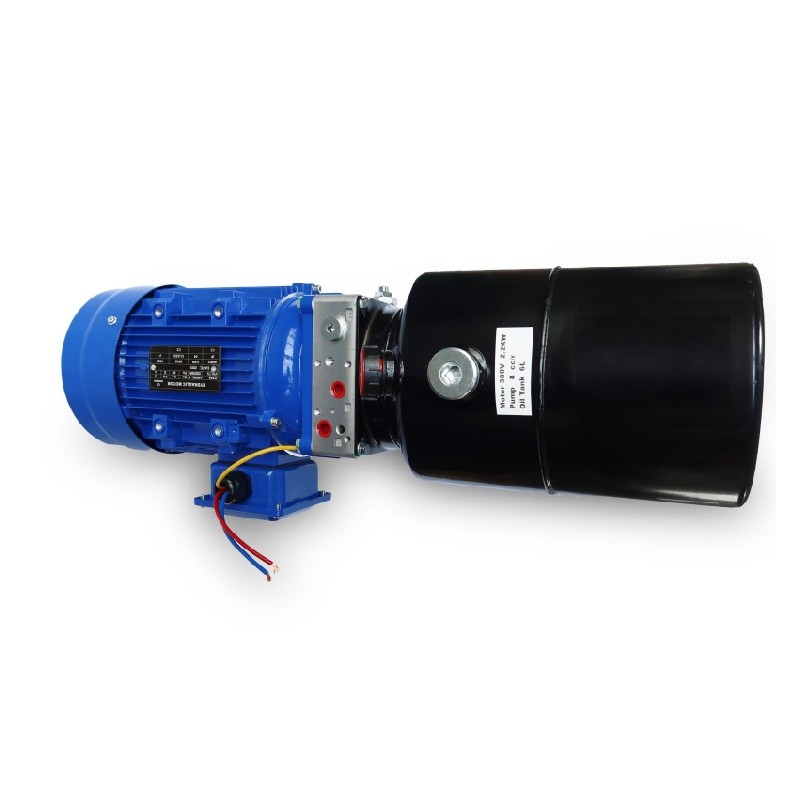

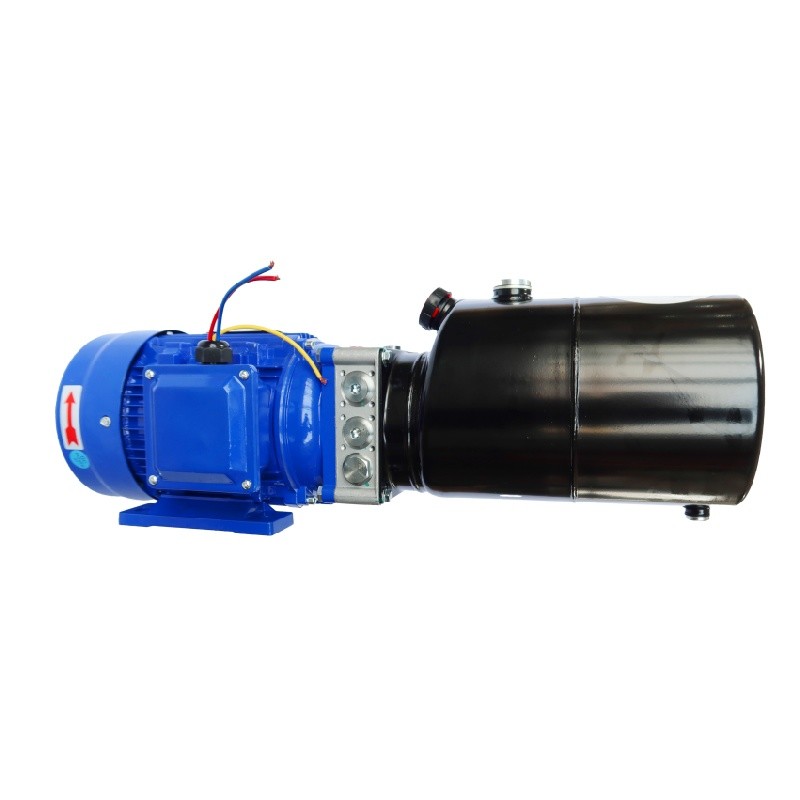

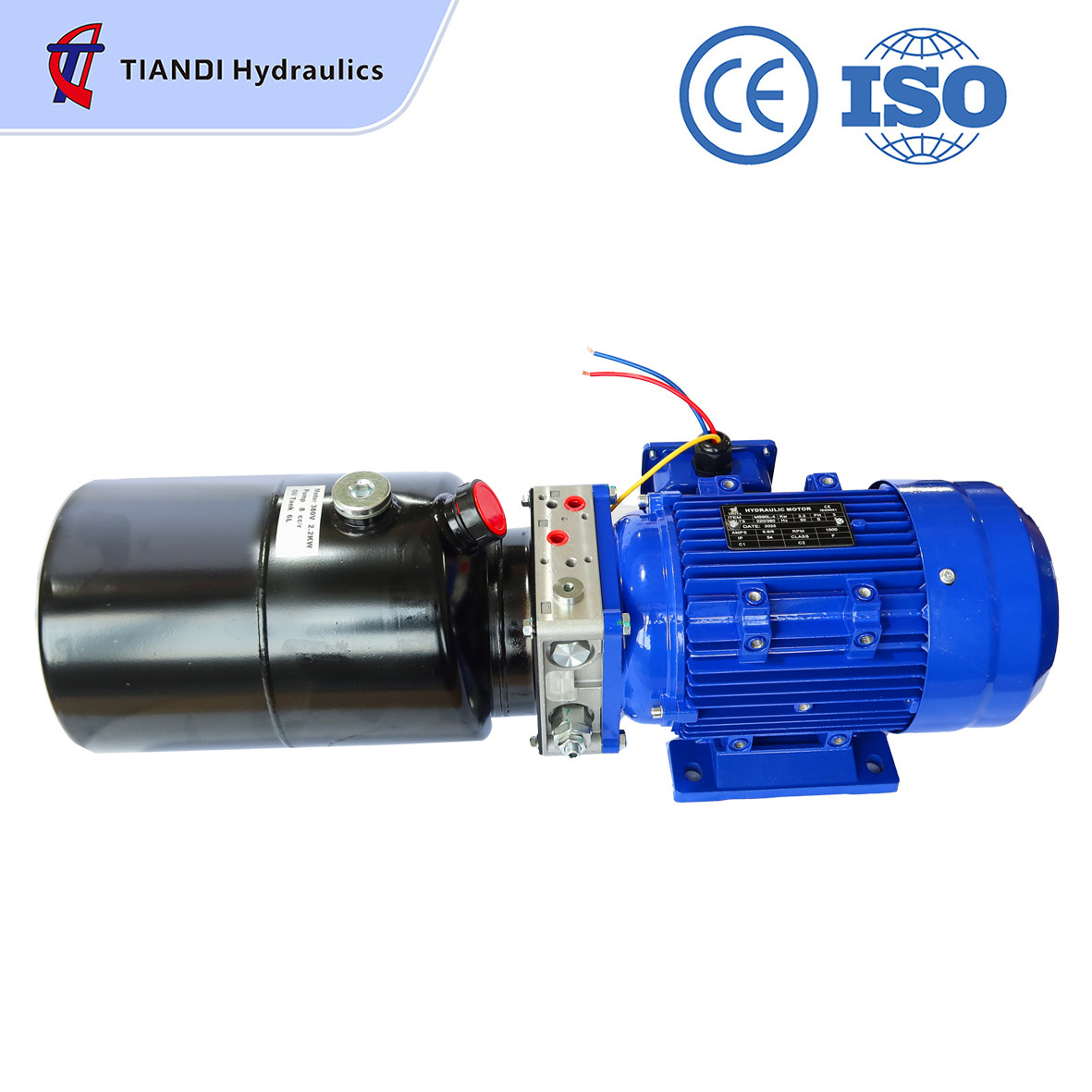

380V 2.2Kw hydraulic power unit small hydraulic pump station for car lifter Dock Leveler lift

Basic Information

Place of Origin:	Ningbo China
Brand Name:	TianDi
Certification:	CE,ISO
Model Number:	TDDL-AC-0075

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	Packed in carton boxes ,and then wooden pallets
Delivery Time:	15 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	2000pcs per month

Get Best Price Contact Now

Working Pressure:	3000psi	Specification:	Carton Size 50cm25cm30cm
PUMP:	8cc/r	Oil Port:	G1/4
Valve Voltage:	AC380V	Tank Size:	4L To 12L
Applicability:	Hydraulic Dock Leveler ,Hydraulic Lift, Car Lifter

Work Presurre 18MPa Hydraulic Power Pack For Forks-Lift

Basic Specification

AC 380V Hydraulic power unit.
2.2kw 380VDC electric motor
8cc/rgear pump.
metal motor cover.
6L(etc)Round steel tank with drain plug.
Hydraulic Power Pack complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting or Vertical.
Max pressure: 210 bar.
Relief valve: RV2-08.
Flow Rate: 2Lto 8L/min.
Relief valve and check valve for all standard power unit
Oil Port size :1/4"BSP

Motor	AC380V 2.2KW 1450RPM	Oil Pump	8cc/r
Oil Port	G1/4	Tank Size	6L
Valve Votage	AC380V	Mounting Type	Horizontal

Commercial Terms

Minimum Order Quantity:	50pcs
Price:	USD198/set
Payment Terms:	T/T
Supply Ability	2800 pcs per month
Delivery Time:	25 working days after advance payment received
Packaging Details:	Packed in carton boxes ,and then wooden pallets

Drawing

380V 2.2Kw hydraulic power unit small hydraulic pump station for car lifter Dock Leveler lift 0

Description

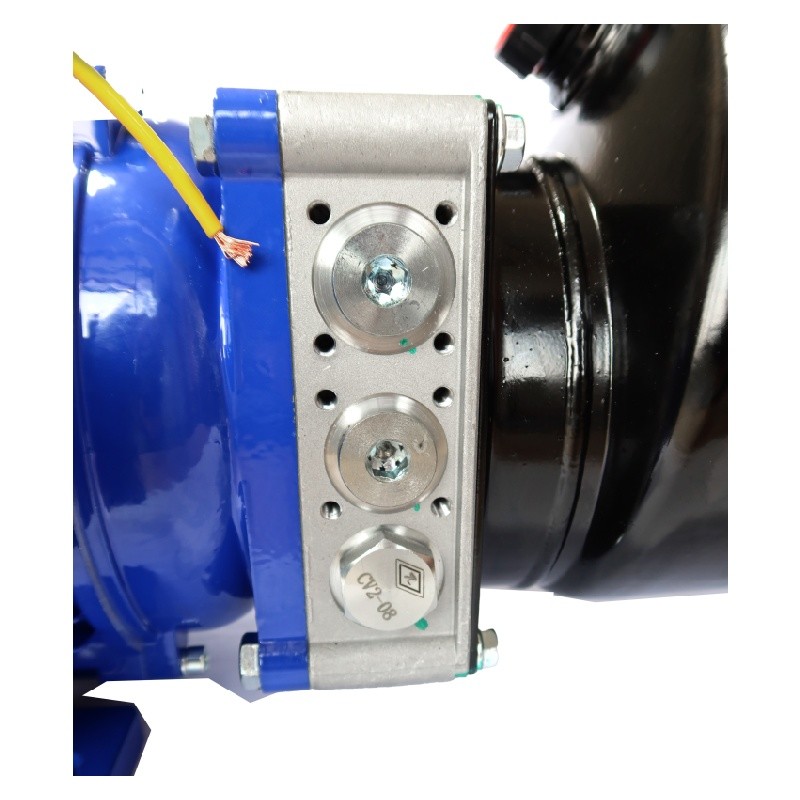

1). Components: This power pack is powered up and down .It components by a high pressure gear pump, a AC motor, a aluminum center manifold, valves and a hydraulic oil tank.

2). How to Work: Push “up” button to start the motor to lift the Trailer, and the solenoid release valve actives the lowering movement.

3). Applications: It is especially designed and widely used in dock leveler applications.
