DC 12V Motor Horizontal Single Acting Mini Hydraulic Power Packs for Dump Trailer

China DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer supplier
DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer supplier DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer supplier DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer supplier DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer supplier

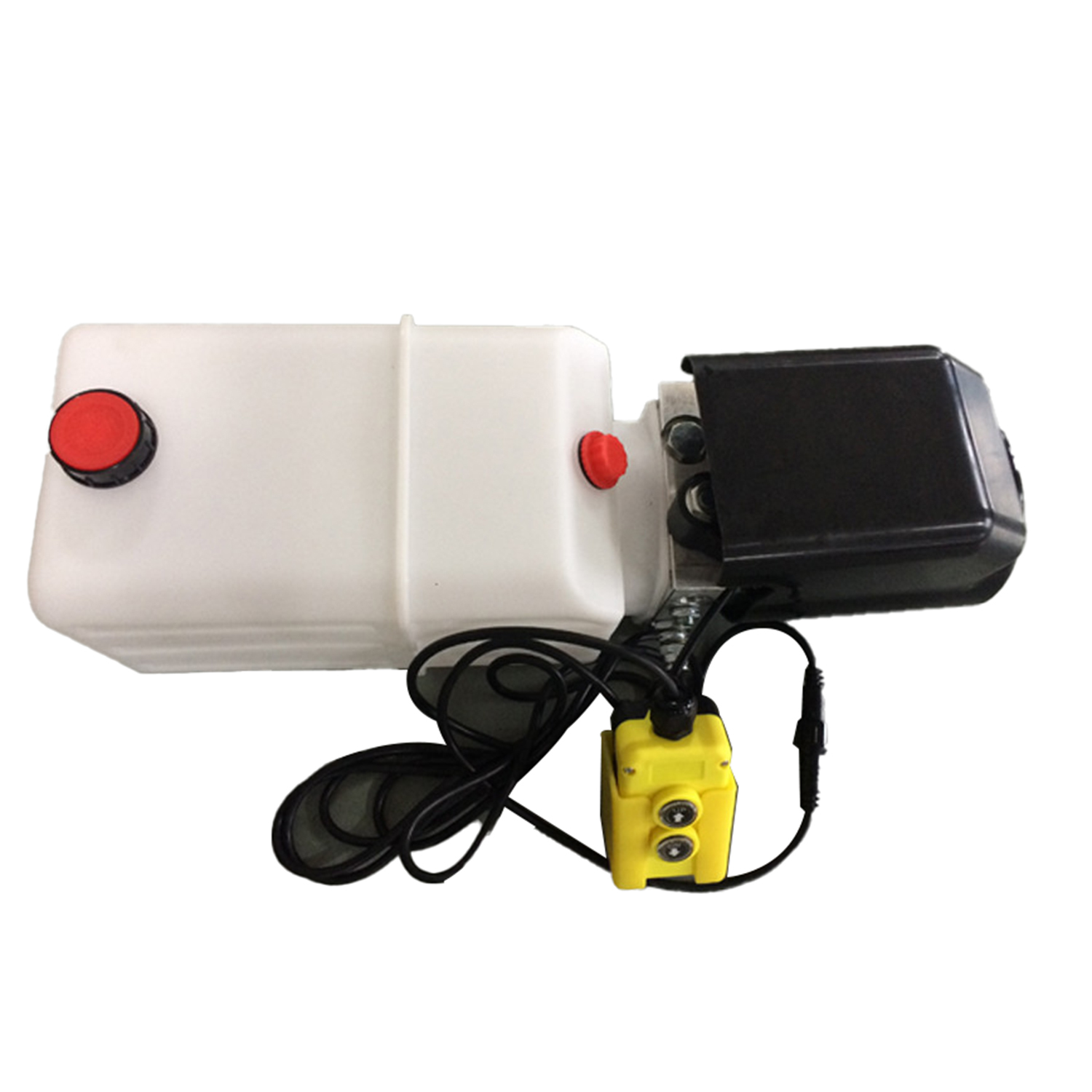

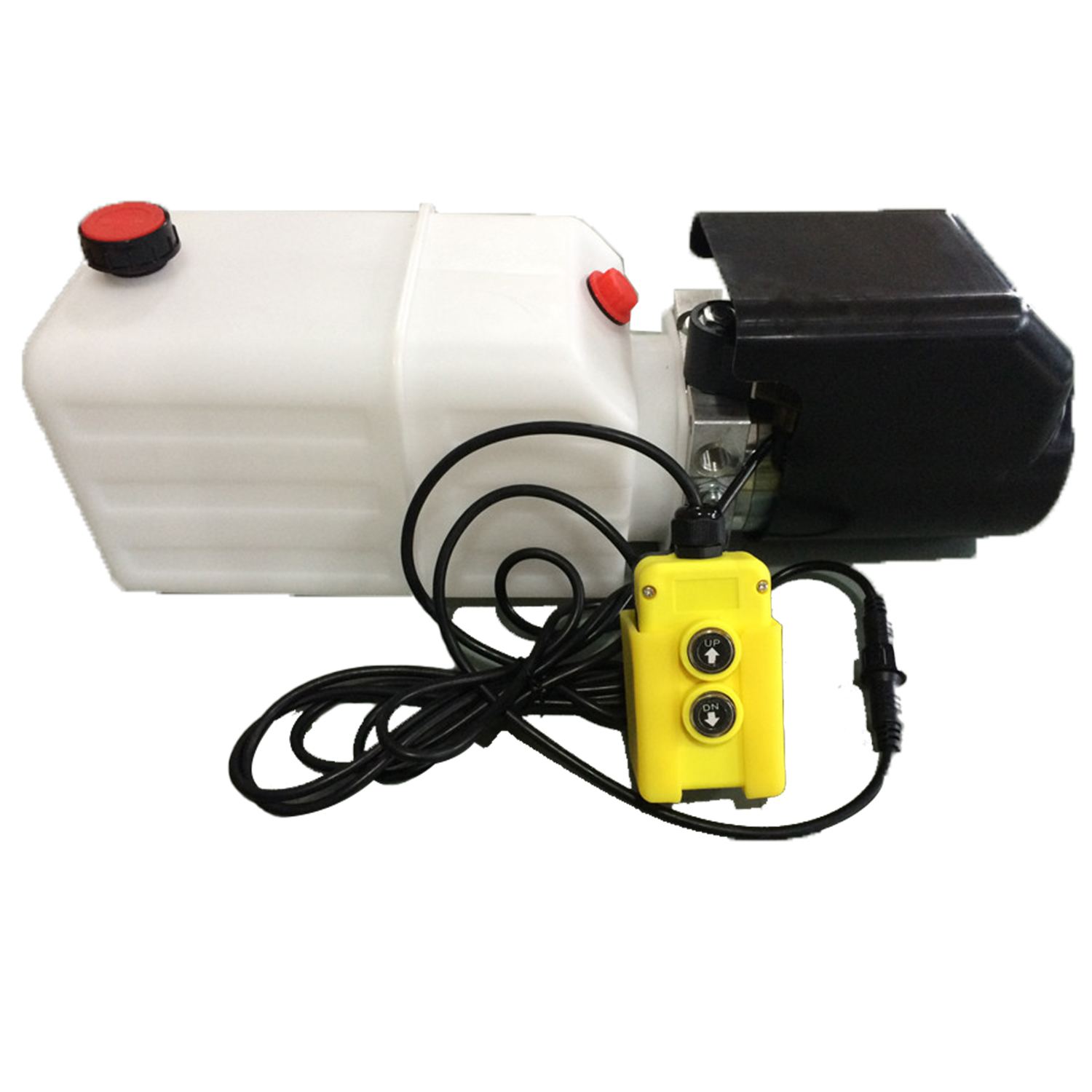

Large Image :  DC 12V Motor Horizontal Single Acting Mini Hydraulic Power Packs for Dump Trailer

Product Details:

Place of Origin: China
Brand Name: Tiandi
Certification: CE
Model Number: TDDL-10-03

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Price: USD130-150/sets
Packaging Details: Packed in carton boxes ,and then wooden pallets
Delivery Time: 25work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: USD150/set
Contact Now
Detailed Product Description
Motor: DC 12V 1600W 2500RPM Oil Pump: 2.1cc/r
Oil Port: G3/8” Tank Size: 8L
System Pressure: 16Mpa Mounting Type: Horizontal

Single Acting Hydraulic Power Pack with Plastic Tank for Tripper Trailer





This Hydraulic Power Unit is to operate single acting cylinders, complete with 2 buttons remote and cable.
DC 12V Hydraulic power unit.
DC12V 1.6Kw motor

2.1cc/r gear pump.
plastic motor cover.CODE:MC-02
8 Litre plastic tank with drain plug.
Hydraulic Power pack complete with suction filter, remote,return oil pipe and air breather.
Mounting:  Horizontal Mounting.
Max pressure: 210 bar.
Relief valve: RV2-08.  set pressure 180 bar, but adjustable from 50-210 bar as standard for each single acting hydraulic power pack.

Check Valve:CV2-08. Non-return Valve to keep cylinder stay .
Flow Rate: 5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
2 Button remote with 4 metre cable.
Power Packs suitable for all kinds of single acting  Hydraulic cylinders.





Basic Information

Motor

DC 12V 1600W 2500RPM

Oil Pump

2.1cc/r

Oil Port

G3/8”

Tank Size

4.5L

System Pressure

16Mpa

Mounting Type

Horizontal



Commercial Terms

Minimum Order Quantity:

50pcs

Price:

USD150.00/PC

Payment Terms:

T/T

Supply Ability:

500pcs per month

Delivery Time:

25 working days after advance payment received

Packaging Details:

Packed in carton boxes ,and then wooden pallets





The Hydraulic Power Pack Circuit :

DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer

Hydraulic Power Pack Assemble Plant:



DC 12V Motor Horizontal Single Acting  Mini Hydraulic Power Packs for Dump Trailer








Competitive Advantage:

1. TIANDI hydraulic is one of earliest factories of hydraulic packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.

2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
